Chief WMA1S Heavy Duty Wall Mount Accessory, Single Stud

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 16942
List Price: $219.00
Our Price: $152.00
Shipping: $12.95 *
* applies to Contiguous United States

Chief WMA 1S Heavy Duty Single Stud Wall Mount Accessory Silver

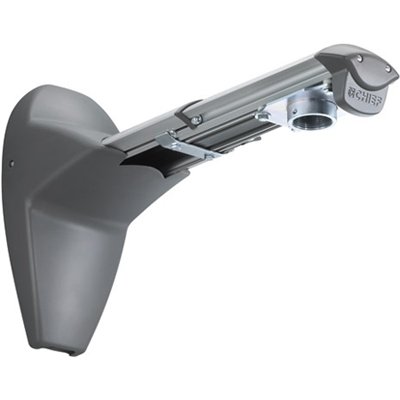

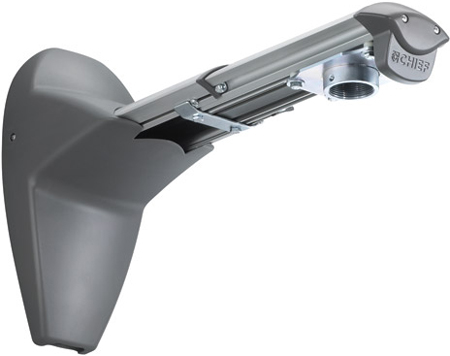

Chief WMA1S is a heavy duty wall mount accessory for mounting projectors or flat panels in single stud or concrete applications. Great for when ceiling mounting is not a option.

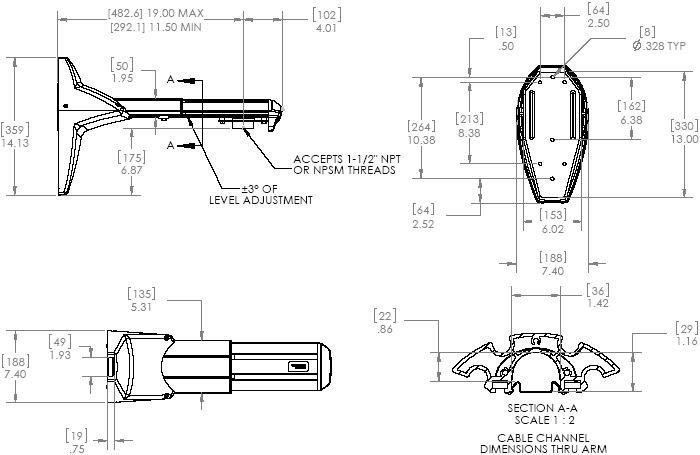

Technical Drawing

Technical Drawing of Chief WMA1s Heavy Duty Single Stud Wall Mount Accessory Silver






11.5" - 19"

Overall Dimensions (H x W x D)

14.2" x 7.3" x 11.5" (361 x 185 x 292 mm)

Shipping Weight

17.25 lbs

Weight Capacity

Concrete 150, lbs, wood 150, steel stud 50 lbs



  • Similar to WM110S
  • Weight capacity: up to 150 lbs
  • For use with projectors and flat panels
  • Requires CMS extension column (not included)
  • Replaces the WMA300
  • Dependent on wall structure
Model WMA1S
Manufacturer Chief Mounts
Part Number WMA1S
UPC 841872149714
Color Silver
Extension 11.5" - 19"
Overall Dimensions 14.2" x 7.3" x 11.5" (361 x 185 x 292 mm)
Weight Capacity Concrete 150 lbs, Wood 150 lbs, Steel stud 50 lbs
Shipping Weight 17.25 lbs

Be the first to review this product

Chief WMA1S Heavy Duty Wall Mount Accessory, Single Stud


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
