Peerless EPT650 Outdoor Universal Tilt Wall Mount

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 17130
List Price: $319.00
Our Price: $249.00
Shipping: $28.98 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

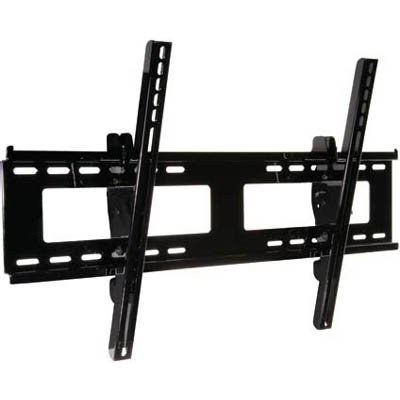

Peerless EPT650 Outdoor Universal Tilt Wall Mount provides a sure way to mount flat panel displays outdoors with its corrosion resistant E-Coat finish and stainless steel hardware. In addition to simple installation with its Hook-and-Hang design, this mount offers tilt functionality while keeping the display a mere 2.58" from the wall. Tamper- resistant hardware deters theft, offering peace-of-mind with every installation and for additional security, the mount has accommodations for optional padlocks.

Helpful Hints: The EPT650’s corrosion resistant coating allows this product to be used outdoors, protecting it from all of the elements.

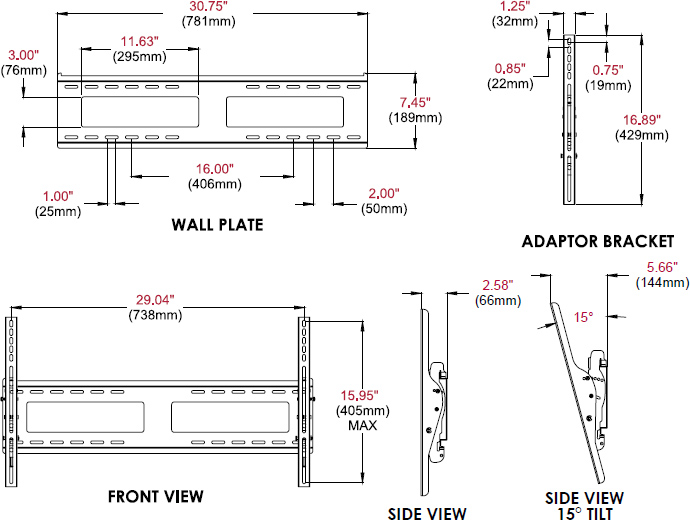

Technical Drawing

Technical drawing for Peerless EPT650 or EPT650-S Outdoor Universal Tilt Wall Mount


Color Black and Stone Gray
Finish Powder Coat
Screen Size

32" to 75"

VESA Pattern 600 x 400
Weight Capacity 175 lbs (79kg)
Distance from Wall

2.58" (66mm)

Mounting Pattern 738 X 405mm (29.04 X 15.95")
Security Features

Security Hardware


+15 / -5 degree

Package Contents
  • Mount and Mounting hardware

Product Dimensions

30.75" x 16.89" x 2.58" (781 x 429 x 66mm)

Product Weight

8.5 lbs (4 kg)

Shipping Dimensions

31.62" x 8.5" x 3.88" (803 x 216 x 99mm)

Shipping Weight

10.5 lbs (5kg)

UPC Code EPT650: 735029275640

EPT650-S: 735029275657


  • 2.58" (66mm) from the wall

  • Double stud mounting with 16", 20" & 24" stud placements

  • Wood, concrete or cinder block mounting hardware included

  • Tamper-resistant hardware is standard and also has accommodations for optional padlocks

  • Horizontal display adjustment up to 8" (203mm) for better display placement

  • Universal mount fits displays with mounting patterns up to 738 x 405mm (29.04"W x 15.95"H) and up to 600 x 400mm VESA compliant

  • One-Touch tilt allows adjustment of +15/-5° with optional tilt lock in 5° increments

  • Made of corrosion resistant materials for weather resistance

Model EPT650
Manufacturer Peerless Mounts
Part Number EPT650
UPC 735029275640
Color Black and Stone Gray
Dimensions (W x H x D) 30.75" x 16.89" x 2.58" (781 x 429 x 66mm)
Weight 8.5 lbs (4kg)
Weight Capacity 175 lbs (79kg)
Shipping Dimensions 31.62" x 8.5" x 3.88" (803 x 216 x 99mm)
Shipping Weight 10.5 lbs (5kg)
Monitor Size 32" to 75"
Horizontal Adjustment (203 mm) 8 in
Mounting Pattern 738 X 405mm (29.04 X 15.95")
Tilt +15/-5 degree
Distance From Wall 2.58" (66mm)
Warranty Limited 5 year
Mounting Options Wall
Number of Monitors 1 Monitor
VESA 600 X 400
Finish Powder Coat

Be the first to review this product

Peerless EPT650 Outdoor Universal Tilt Wall Mount

Warranties and Returns

Limited Warranty

Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of Peerless-AV products that Peerless-AV products will be free from defects in material and workmanship, under normal use, for the periods listed below, from the date of purchase by the original end-user. At its option, Peerless-AV will repair or replace with new or refurbished products or parts, or refund the purchase price of, any Peerless-AV product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless-AV’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. This warranty also does not cover corrosion or rust resulting from damaged, scratched or chipped paint or other surfaces.

In no event shall Peerless-AV be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless-AV product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV in connection with the sale of any Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights which vary from state to state.

Product Warranty Period
Mounts 5 years
Kiosk Enclosures 5 years
Furniture 1 year
Cables 25 years
Cleaning Products 1 year
Power Products 1 year
Electronic Products and Components 1 year
Xtreme Displays, Ultra View TVs 2 years
Interactive 1 year
