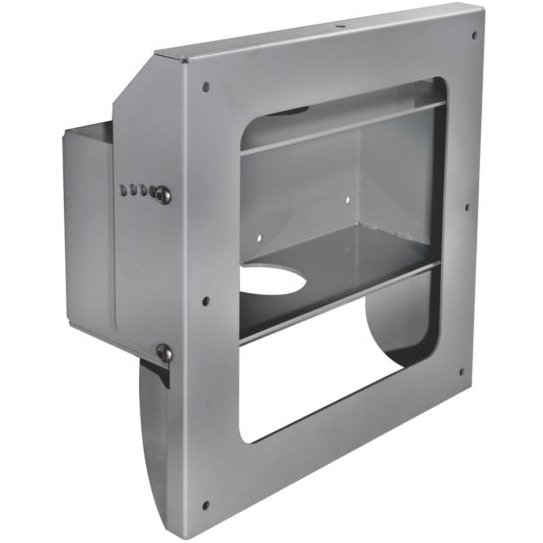

Peerless FPEWM Indoor/Outdoor Tilting Wall Mount

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 17134
List Price: $565.00
Our Price: $468.00
Shipping: $39.98 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States


Peerless FPEWM Indoor/Outdoor Tilting Wall Mount is made from robust, corrosion resistant materials, primed with special e-coat and comes with stainless steel hardware, designed to last in virtually any environment. This mount expedites and simplifies indoor and outdoor installations with Hook-And-Hang set-up, viewing angle adjustment with its 0° to 20° incremental tilt feature and is designed to last and last in virtually any application, indoors and outdoors. It is the ideal solution for mounting a Protective Enclosure to a wall for any entertainment and digital signage installation.

Due to solar loading, the enclosure should not be used in direct sunlight without a high temperature display or the display may go isotropic.

Technical Drawing

Technical drawing for Peerless FPEWM Indoor/Outdoor Tilting Wall Mount


Color Stone Gray
Finish Powder Coat
Screen Size

40" to 55"

Weight Capacity 400 lbs (181kg)
Distance from Wall

6.26" (159mm)

Mounting Pattern 406 X 406mm (16.00 X 16.00")
Security Features

Non-Security Hardware


0 to 20 degree

Package Contents
  • Tilt wall mount

  • Mounting hardware

Product Dimensions

18.79 x 18.22 x 6.26" (477 x 463 x 159mm)

Product Weight

36 lbs (16kg)

Shipping Dimensions

23.63" x 19.38" x 10.38" (600 x 492 x 264mm)

Shipping Weight

38 lbs (17kg)

UPC Code 735029273011


  • Incremental tilt settings from 0° to 20° to find the perfect viewing angle

  • Comes with stainless steel hardware to endure the harshest environments

  • For indoor or outdoor use

  • Constructed from corrosion resistant materials, coated with a special e‑coat

Manufacturer Peerless Mounts
Part Number FPEWM
UPC 735029273011
Color Stone gray
Dimensions (W x H x D) 18.79" x 18.22" x 6.26" (477 x 462 x 159mm)
Weight 36 lbs (16kg)
Weight Capacity 400 lbs (181kg)
Shipping Dimensions 23.63" x 19.38" x 10.38" (600 x 492 x 264mm)
Shipping Weight 38 lbs (17kg)
Monitor Size 40" to 55"
Tilt 0 to 20 degree
Mounting Pattern 406 X 406mm (16.00 X 16.00")
Distance From Wall 6.26" (159mm)
Warranty Limited 5-year on mount, Limited 1 Year Warranty on corrosion
Mounting Options Wall
Finish Powder Coat

Be the first to review this product

Peerless FPEWM Indoor/Outdoor Tilting Wall Mount

Warranties and Returns

Limited Warranty

Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of Peerless-AV products that Peerless-AV products will be free from defects in material and workmanship, under normal use, for the periods listed below, from the date of purchase by the original end-user. At its option, Peerless-AV will repair or replace with new or refurbished products or parts, or refund the purchase price of, any Peerless-AV product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless-AV’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. This warranty also does not cover corrosion or rust resulting from damaged, scratched or chipped paint or other surfaces.

In no event shall Peerless-AV be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless-AV product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV in connection with the sale of any Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights which vary from state to state.

Product Warranty Period
Mounts 5 years
Kiosk Enclosures 5 years
Furniture 1 year
Cables 25 years
Cleaning Products 1 year
Power Products 1 year
Electronic Products and Components 1 year
Xtreme Displays, Ultra View TVs 2 years
Interactive 1 year
