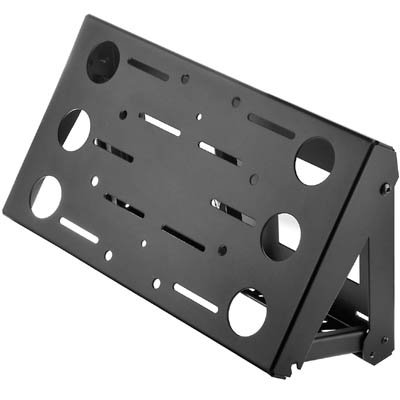

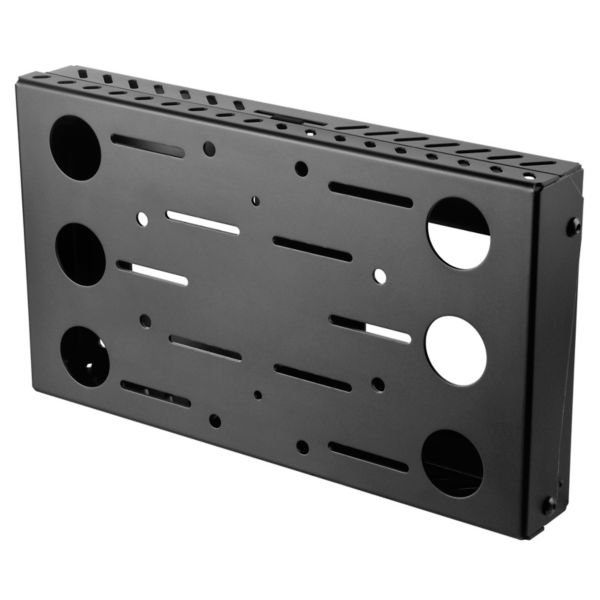

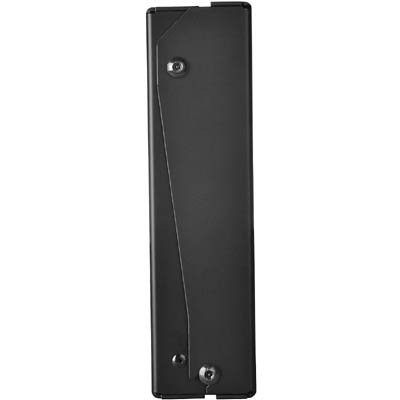

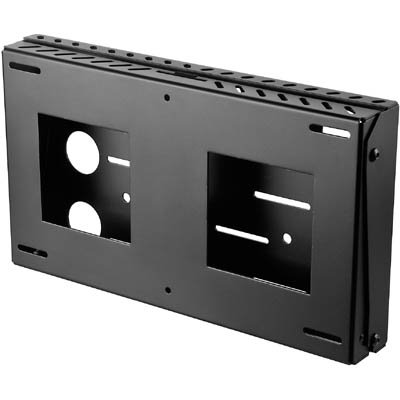

Peerless DS509 Slim Tilt Mount with PC Holder for 25"-60" Display
Designed to wall mount smaller computers, peerless DS509 is a low-profile universal solution for digital signage applications. Its bottom disengaging design allows the display to have a negative tilt that enables quick and easy computer maintenance without having to remove the display. Engineered for strength, durability and easy installation this mount offers VESA compliance and is compatible with Peerless-AV PLP adaptor plate technology to accommodate any flat panel display.
25" to 60"
|VESA Pattern||100, 200 x 100, 200 x 200|
|Weight Capacity||200 lbs (91kg)|
0, 5 and 10 degree
2.75" x 18.27" x 10.27" (70 x 464 x 261mm)
13 lbs (6kg)
4.38" x 26.88" x 16" (111 x 683 x 406mm)
14 lbs (6kg)
Displays can be mounted in both landscape and portrait
The computer can be removed and serviced without having to remove the flat panel display

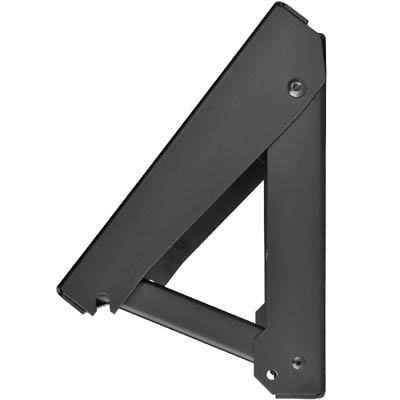

Tilts at 0, 5, & 10 degrees
Accommodates computers up to 2.0" x 14.90" x 9.0" (51 x 378 x 229mm)
VESA 100, 200, 100 x 200, 200 x 100mm compliant
Rated to 200 lbs (91kg) for dual studs, 60 lbs (27kg) for single metal stud
PLP adaptor plate compliant

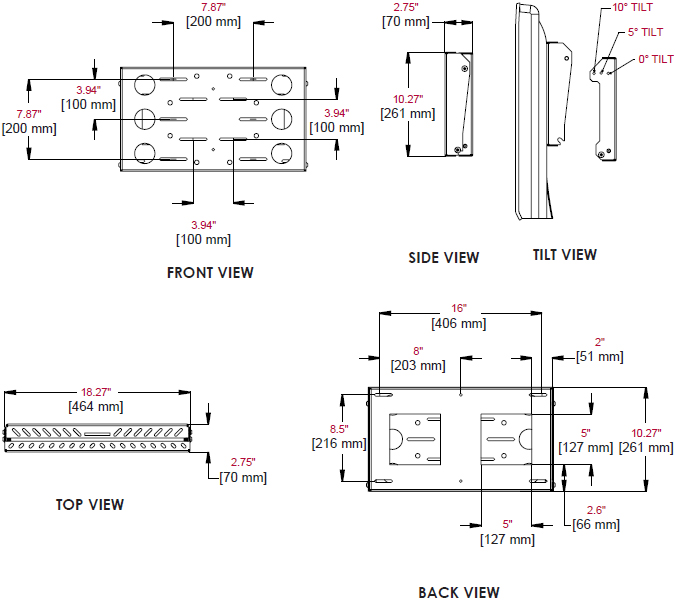

|Dimensions (W x H x D)||2.75" x 18.27" x 10.27" (70 x 464 x 261mm)|
|Weight||13 lbs (6kg)|
|Weight Capacity||200 lbs (91 kg) for dual studs, 60 lbs (27 kg) for single metal studs.|
|Shipping Dimensions||4.38" x 26.88" x 16" (111 x 683 x 406mm)|
|Shipping Weight||14 lbs (6kg)|
|Monitor Size||25" to 60"|
|Mounting Pattern||VESA 100, 200, 100 x 200 and 200 x 100mm|
|Tilt||0, 5 and 10 degree|
|Accomodates||Computers up to 2.0" x 14.90" x 9.0"(51 x 378 x 229 mm)|
|Warranty||Limited 5 year|
