$729.00

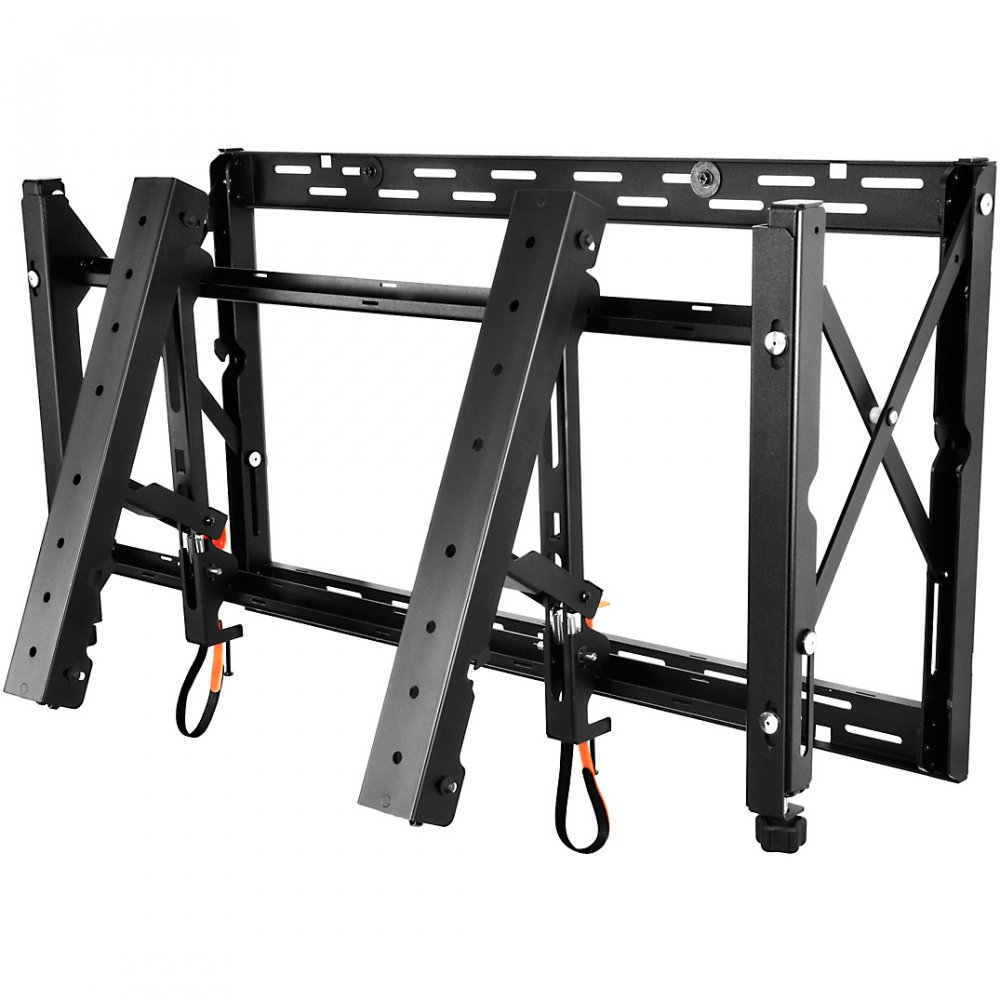

Peerless DS-VW765-LAND Full-Service Video Wall Mount - Landscape for 40" to 65" Displays

Pull-out, Prop-open Service

Product ID 17143
HIGHLIGHTS

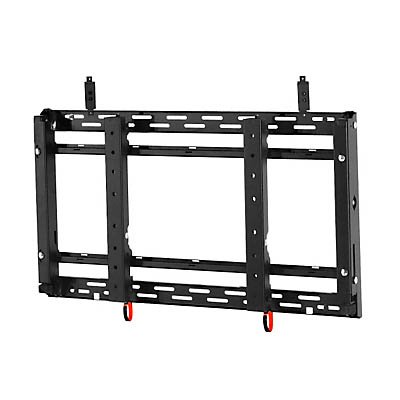

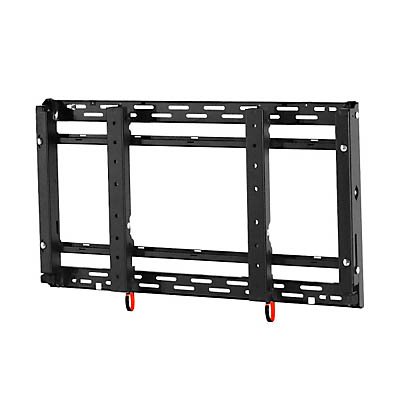

Peerless DS-VW765-LAND Full-Service Video Wall Mount - Landscape for 40" to 65" Displays
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs

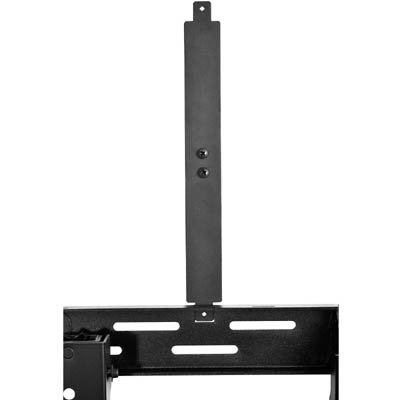

Spacer of Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full-Service Video Wall Mount - Landscape for 40" to 65" Displays
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Spacer of Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs
Peerless DS-VW765-LAND Full Service Video Wall Mount for 40 to 65 inch Displays up to 125 lbs

Highlights

  • Adjustable VESA mounting hole patterns in 100mm increments, starting at 200 x 200mm up to 700 x 400mm, additional patterns supported with adaptor plates

  • Integrated cable management tie-backs make display-to-display cabling simple

  • Included security hardware prevents the mount from extending out from the wall

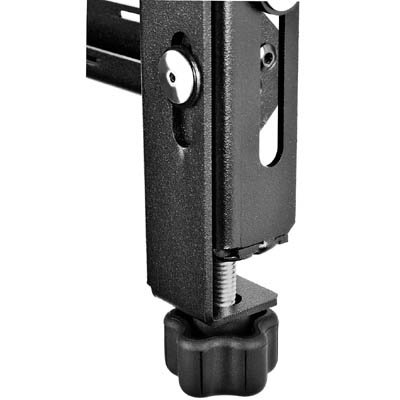

  • Simple, tool-less micro-adjustments at 8 points seamlessly align the displays

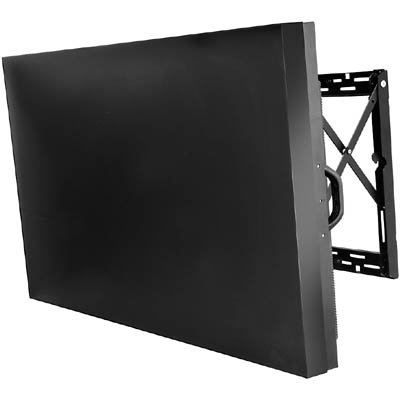

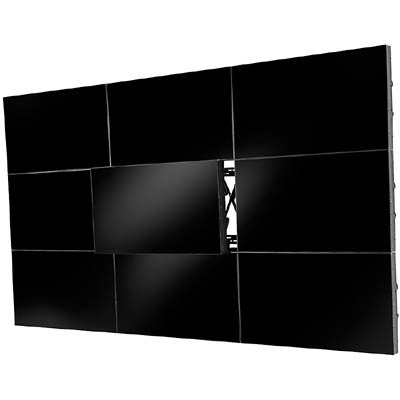

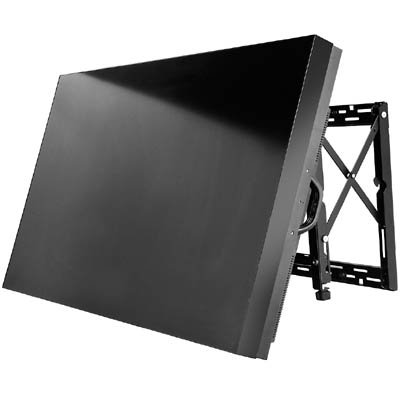

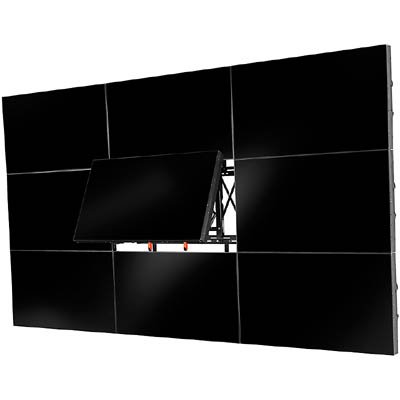

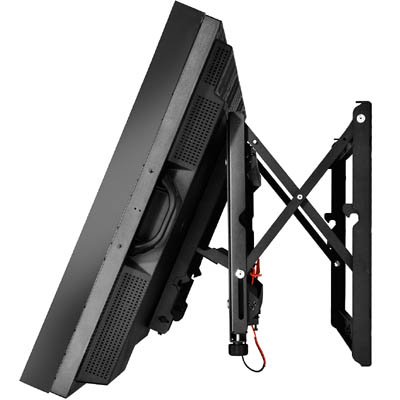

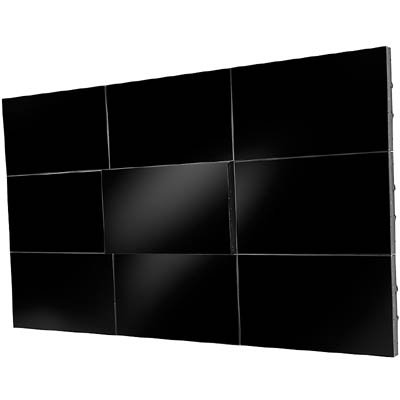

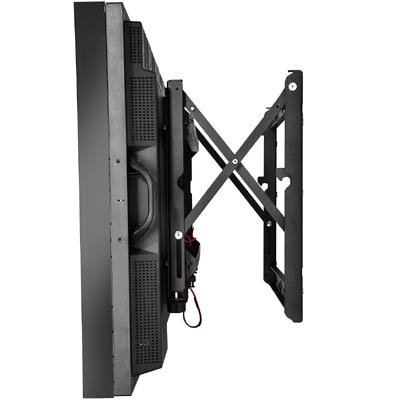

  • Pull-out/prop-open mechanism provides quick service access

  • Open wall plate architecture allows for total wall access that increases electrical and cable management options

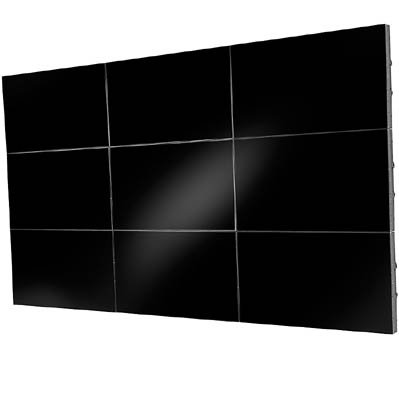

  • Displays and mounts sit flush against the wall for a clean side appearance

  • Spring loaded mechanism allows displays to click securely into place against the wall

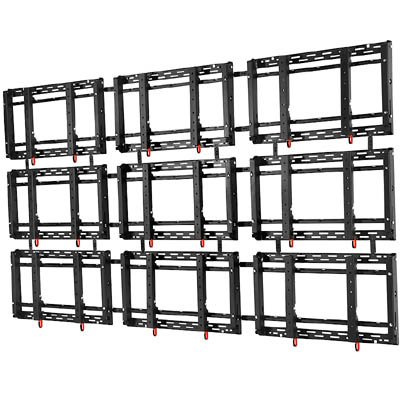

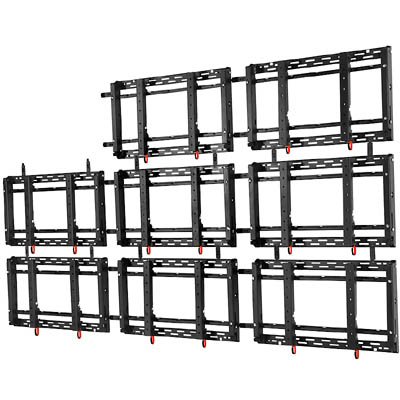

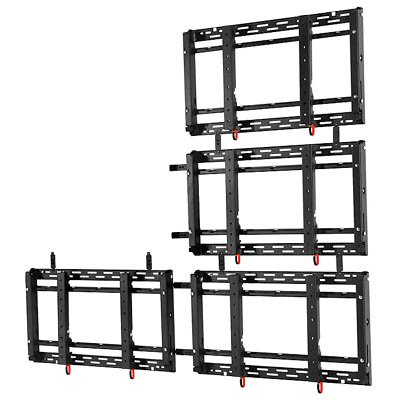

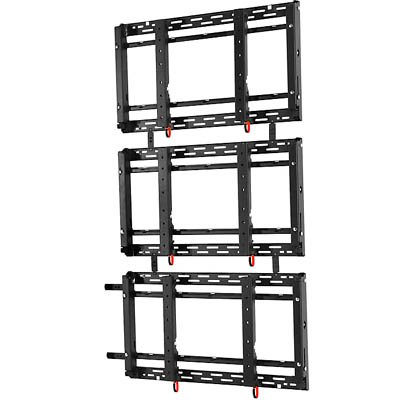

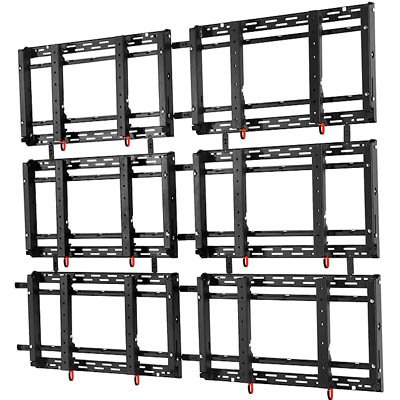

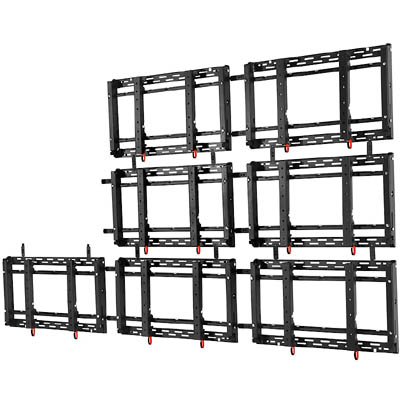

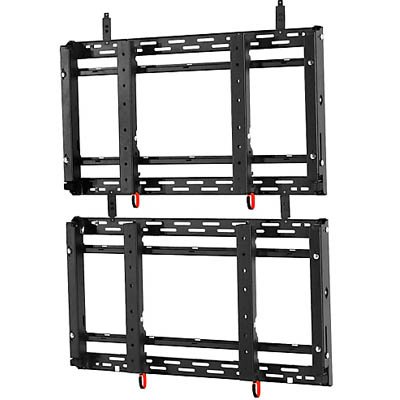

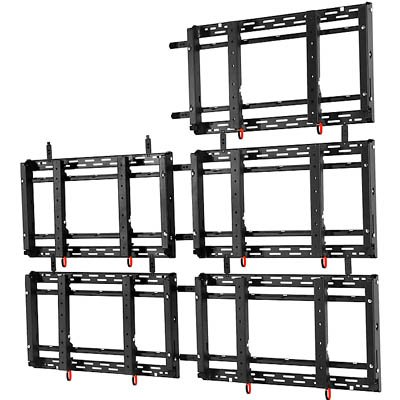

  • Modular mount for unlimited video wall display configurations

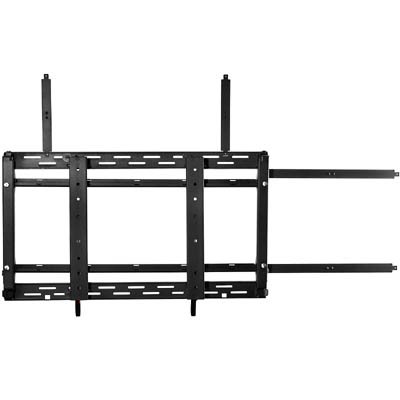

  • Reusable custom wall spacers eliminate guesswork and on-site installation calculations (sold separately)

Description

Peerless-AV’s Full-Service Video Wall Mount is easy to configure, quick to install and a snap to maintain. Create any configuration imaginable, but leave the tedious calculations to the custom wall plate spacers. The mount’s innovative design is loaded with time saving features like no-tool-required micro-adjustments and easy-access to any display for quick serviceability.

Helpful Hints: For displays with 800x400 mounting patterns please reference the accessories tab for model: ACC-V800X.

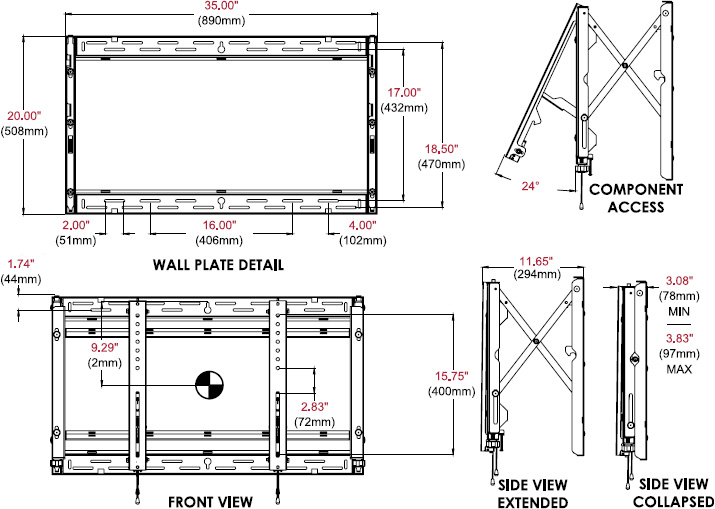

Technical Drawing

Technical drawing for Peerless DS-VW765-LAND Full-Service Video Wall Mount - Landscape

Specifications

Color Black
Finish Powder Coat
Screen Size

40" to 65"

VESA Pattern 200 x 200mm up to 700 x 400mm, additional patterns supported with adapter plates
Weight Capacity 125 lbs (56.8kg)
Distance from Wall

3.08-3.83" (78-97mm)

Package Contents
  • Wall mount assembly

  • Mounting attachment rails

  • Fasteners

Product Dimensions

35.00" x 20.00" x 3.08"-3.83" (890 x 508 x 78-97mm)

Product Weight

33 lbs (15kg)

Shipping Dimensions

37.13" x 22.25" x 4.25" (943 x 565 x 108mm)

Shipping Weight

37.95 lbs (17.25kg)

UPC Code 735029278771

Product Options/Accessories

Model DS-VW765-LAND
Manufacturer Peerless Mounts
Part Number DS-VW765-LAND
UPC 735029278771
Color Black
Finish Powder Coat
Dimensions (W x H x D) 35.00" x 20.00" x 3.08"-3.83" (890 x 508 x 78-97mm)
Weight 33 lbs (15kg)
Weight Capacity 125 lbs (56.8kg)
Shipping Dimensions 37.13" x 22.25" x 4.25" (943 x 565 x 108mm)
Shipping Weight 37.95 lbs (17.25kg)
Monitor Weight 40" to 65"
Mounting Pattern 200 x 200mm up to 700 x 400mm, additional patterns supported with adapter plates
Warranty Limited 5 year
Distance From Wall 3.08 - 3.83" (78 - 97mm)
Mounting Options Wall
