Video walls should be easy to configure, quick to install, and a snap to
maintain. No, it’s not a dream, it’s the DS-VW765-POR Full-Service Video Wall
Mount from Peerless-AV. Create any configuration imaginable, but leave the
tedious calculations to the custom wall plate spacers. Just install the first
mount. Then use the custom wall plate spacers to perfectly place each additional
mount on the wall. No measuring, no guessing, no mistakes. It couldn’t be
simpler. The innovative design combined with a mount that is ready-to-install
right out of the box makes this the fastest installing video wall system ever.
Now in a design that is 20% lighter than previous models and loaded with time
saving features like no-tool-required micro-adjustments and easy-access to any
display for quick serviceability it’s the ultimate video wall mounting solution.
Helpful Hints: The DS-VW765-POR’s pull-out/prop-open mechanism provides quick serviceability and easy-access, so you can achieve a seamless video wall in no time.
42" to 65" (22" minimum Display Height)
|VESA Pattern||200x200 up to 600x400|
|Weight Capacity||125 lbs (57kg)|
|Distance from Wall||
22.02" x 26.87" x 3.08"-3.83" (559 x 683 x 78-97mm)
27.9 lbs (12.7kg)
28.13" x 27.50" x 3.75" (714 x 698 x 95mm)
32.6 lbs (14.8kg)
8 points of tool-less micro adjustments align the displays
Additional patterns supported with adaptor plates.
VESA mounting hole patterns from 200 x 200mm up to 400 x 600mm in 100mm increments.
Includes security hardware that helps deter tampering and theft
Displays and mounts sit flush against the wall for a clean side appearance

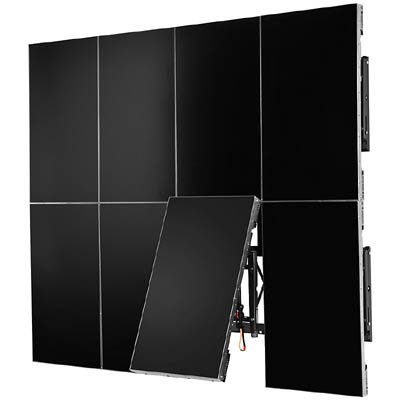

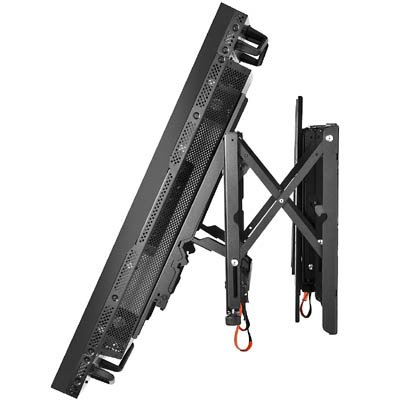

Pull-out/prop-open mechanism provides quick service access
Integrated cable management tie-backs make display to display cabling simple
Displays click securely into place against the wall with spring loaded mechanism
Modular mount for unlimited video wall display configurations
Display specific wall plate spacers eliminate the guesswork and on-site installation calculations
Product Options/AccessoriesACC-V800X Accessory Adapter Rails (VESA 600x400, 800x400mm) Discontinued $61.87 $56.56 DS-ACC765 Cable Release Kit $55.00
|Dimensions (W x H x D)||22.02" x 26.87" x 3.08"-3.83" (559 x 683 x 78-97mm)|
|Weight||27.9 lbs (12.7kg)|
|Weight Capacity||125 lbs (57kg)|
|Shipping Dimensions||28.13" x 27.50" x 3.75" (714 x 698 x 95mm)|
|Shipping Weight||32.6 lbs (14.8kg)|
|Monitor Size||42" to 65" (22" minimum Display Height)|
|Mounting Pattern||200 x 200mm up to 400 x 600mm in 100mm increments. Additional patterns supported with adaptor plates.|
|Warranty||Limited 5 year|
|Distance From Wall||3.08" - 3.83" (78 - 97mm)|
