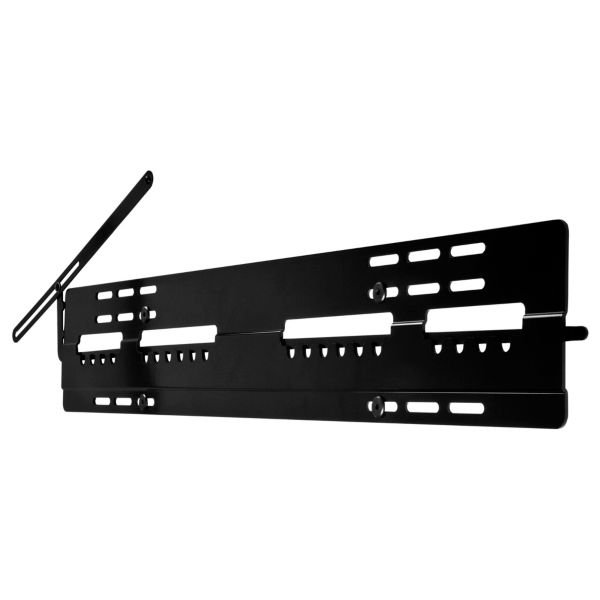

Peerless SUF651 Universal Ultra Slim Flat Wall Mount for 37" to 75" Displays

Product ID 17150


  • Easy three-step installation, mount the wall plate, hang the flat panel display and insert the locking arm

  • Theft resistant security screw on locking arm

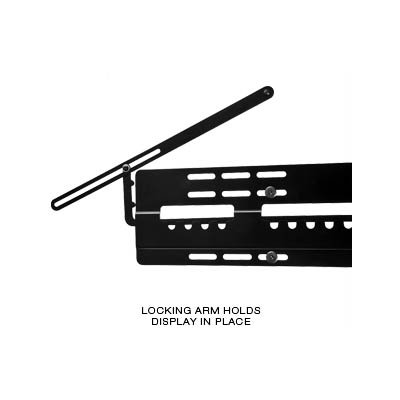

  • Locking arm holds flat panel display in place and prevents accidental bump-offs and unwanted horizontal adjustment

  • Comes with fastener pack with all necessary display attachment hardware

  • Mounts to wood studs and concrete

  • Mount compatible with ultra-thin flat panel displays with 150-400mm (in 25mm increments) and 550-700mm (in 25mm increments) horizontal mounting hole patterns

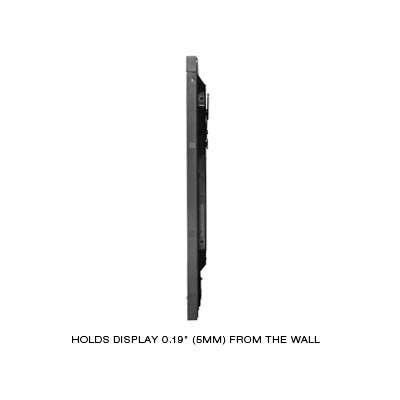

  • Ultra-thin design holds display only 0.19" (5mm) from the wall for a near invisible application

  • Designed exclusively for use with ultra-thin TVs 2" (51 mm) deep or less

  • The screen must have a flat mounting surface, or the mounting holes need to be on the furthest back surface on the screen


One of the world’s slimmest mounts, at only 0.19" (5mm) thin, peerless SUF651 brings displays closer to the wall than most other products in the industry. This near-invisible mount is the beauty that supports the modern style of the latest ultra-thin displays while the locking arm ensures a secure installation. This unmatched solution delivers space-saving, ultra-sleek looks and brings the display ultra-close to the wall.

Helpful Hints: Designed exclusively for use with ultra thin displays 2" (50.8mm) deep or less

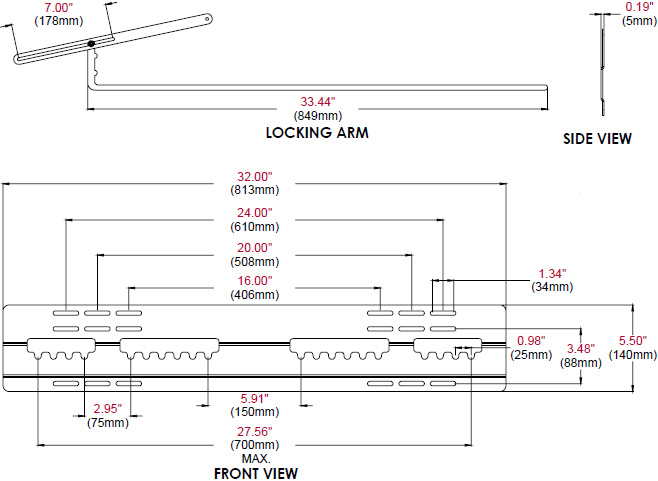

Technical Drawing

Technical drawing for
Peerless SUF651 Universal Ultra Slim Flat Wall Mount, 37


Color Black
Finish High Gloss
Minimum to Maximum Screen Size

37" to 75"

VESA Pattern 200, 400, 600
Weight Capacity 150 lbs (68.0kg)
Distance from Wall

0.19" (5mm)

Mounting Pattern

700mm (27.56")

Security Features Security Hardware
Package Contents
  • Wall Mount
  • Locking Arm
  • Mounting and display attachment hardware
Product Dimensions

32.00" x 5.50" x 0.19" (813 x 140 x 5mm)

Product Weight

4.32 lbs (1.94kg)

Shipping Dimensions

6" x 1.375" x 39.75" (152.4 x 39.925 x 1009.65mm)

Shipping Weight

5.8 lbs (2.61kg)

UPC Code


Model SUF651
Manufacturer Peerless Mounts
Part Number SUF651
UPC 735029278375
Color Black
Dimensions (W x H x D) 32" x 5.5" x 0.19" (813 x 140 x 5mm)
Weight 4.32 lbs (1.94kg)
Weight Capacity 150 lbs (68kg)
Shipping Dimensions 6" x 1.375" x 39.75" (152.4 x 39.925 x 1009.65mm)
Shipping Weight 5.8 lbs (2.61kg)
Monitor Size 37" to 75"
Distance From Wall 0.19" (5mm)
Mounting Pattern 700mm (27.56")
Warranty Limited 5 year
Finish High Gloss
Number of Monitors 1 Monitor
Mounting Options Wall
