Chief WP22US Short Throw and Universal Projector Mount Kit (40")

Includes RPA mini universal projector mount (RSAUS).

Product ID 17190

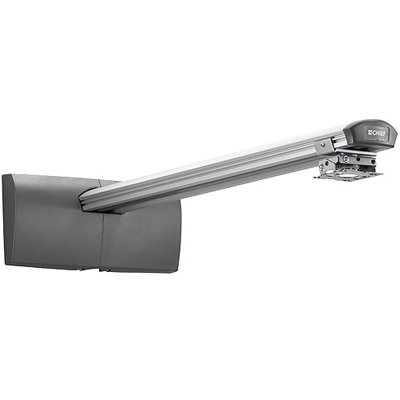

Chief WP22US Short Throw and Universal Projector Mount Kit (40")

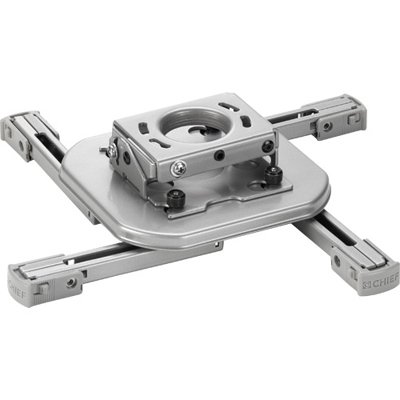

Chief RSAUS Universal Projector Mount comes with Chief WP22US
Chief WP22US Short Throw and Universal Projector Mount Kit (40")
Chief RSAUS Universal Projector Mount comes with Chief WP22US


Chief WP22US provides ideal placement and alignment for mounting to wood studs, steel studs and concrete.

  • Includes RPA mini universal projector mount (RSAUS)

  • Also supports wall-mounted long-throw projectors

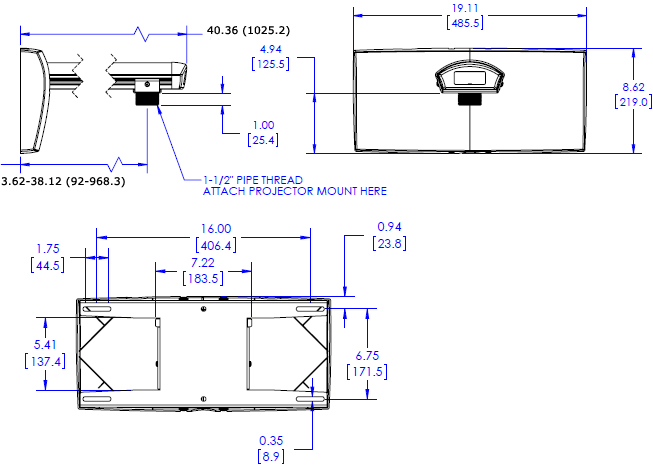

Technical Drawing

Technical Drawing for Chief WP22US Short Throw and Universal Projector Mount Kit




Level +4°/-0°







UL Listed




2.38" - 39.12" (6 - 99 cm)

Lateral Shift

1.75" (44 mm)


TAA Compliant

Overall Dimensions (H x W x D)

40.36" x 19.05" x 8.62" (103 x 48 x 22 cm)

Shipping Weight

26.90 lbs

Weight Capacity

25 lbs (11.3 kg)



Precision adjustment
  • Projector mount slides along arm for infinite projector placement
  • Integrated micro leveling
  • Lateral shift of 1.75"

Integrated cable management

  • Aesthetic covers and inlay style cable management system conceal and protect cables for a clean finish

Multiple installation options

  • Designed for mounting to concrete, block wall, brick, dual wood or dual steel studs. Includes hardware for mounting to wood stud and concrete wall

Complete Solution

  • Includes short throw arm and RPA mini universal projector mount
  • 1.5" NPS collar provides compatibility with RPA & Elite Series projector mounts and other accessories
  • Ability to personalize your install with Chief's interchangeable logo card
  • Also sold in 24" & 56" length options
  • TAA compliant

Product Options/Accessories

Model WP22US
Manufacturer Chief Mounts
Part Number WP22US
UPC 841872153933
Color Silver
Extension 2.38"-39.12" (6-99 cm)
Lateral Shift 1.75" (44 mm)
Overall Dimensions 40.36" x 19.05" x 8.62" (103 x 48 x 22 cm)
Weight Capacity 25 lbs
Adjustments Level +4/-0 degree
Roll 3 degree
Pitch 20 degree
Yaw 360 degree
Shipping Weight 26.90 lbs
Mounting Options Short Throw
