Cotytech DM-H1A3 Hexa Monitor Desk Mount with Four Triple Arms

Product ID 17246

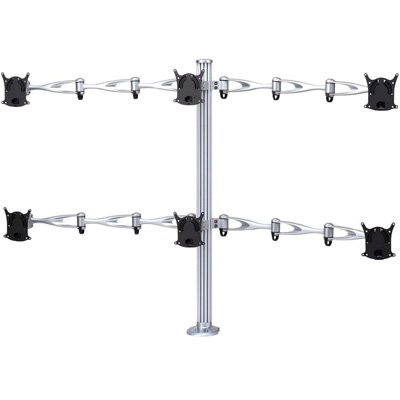

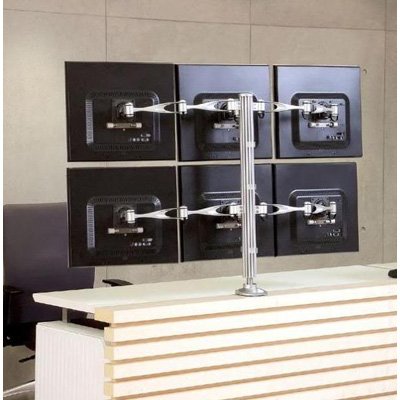

Cotytech DM-H1A3 Hexa Monitor Desk Mount is a completely full motion LCD monitor mount, 4 with triple arms, 2 armless brackets, with weight capacity of 22lbs (10kgs) (for each monitor). The Triple Arms featuring -/+ 30 degree tilt, 360 degree monitor rotation, 360 degree swivel & 29.5 inch full extension (for each monitor). The armless portion is full motion with -/+15 degree tilt, 180 degree monitor rotation and 180 degree swivel. It is ideal for offices, public area, bank, stock market, surveillance unit, industrial settings, production line and many more.

This multiple display desk mount renders maneuverability, flexibility and a chic look that is sure to flatter your LCD monitor. The mounting bracket boasts integrated strength through the latest engineering technology, and is tested for durability in our offshore manufacturing plant. The Cotytech hexa monitor desk mount has been built with the end user in mind, and features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of desk mounts. All our monitor mounts offer five year warranty


Technical Specifications

Weight Capacity

Supports up to 10kgs (22lbs) for each monitor


30° / - 30° (armed) 15° / - 15°(armless)


Max 360° (armed) 180°(armless)

Maximum Extension

29.5" (750mm) for each monitor mounted on arms

Mounting Pattern

VESA compliant: 75x75 and 100x100

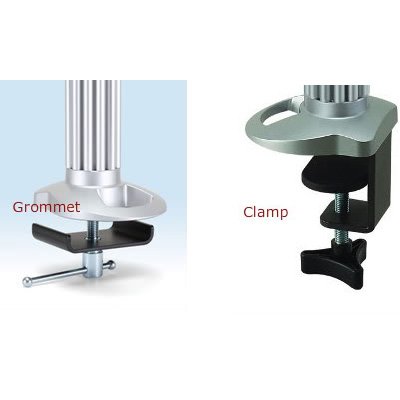

  • Desk-mountable; Pole length: 27.6" (70cm), longer pole option available; Triple arm length: 29.5" (75cm)
  • Supports six LCD monitors up to 29", each with independent height adjustment
  • Increase efficiency by using multiple applications simultaneously, eliminating toggling back and forth between documents and programs.
  • Maximum adjustment rendered by tilting, swiveling, pivoting and height adjustment.
  • Smooth, fingertip tilt in all directions
  • The unique 360° swiveling feature allows users to share screen with their close neighbor or the one across the desk ,making this perfect for selling and training environments.
  • Portrait and landscape rotation
  • Solid aluminum alloy construction
  • Maximum productivity and supreme ergonomic comfort
  • Clean look with minimal hardware visible from underside of work surface
Model DM-H1A3
Manufacturer Cotytech
Part Number DM-H1A3
Weight Capacity Up to 10 kg (22 lbs) for each monitor, total 60 kg (132 lbs)
Tilt (armed) 30/-30 degree, (armless) 15/-15 degree
Swivel Max 360° (armed), 180°(armless)
Maximum Extension 29.5" (750 mm) for each monitor mounted on arms
Mounting Pattern VESA compliant: 75x75 and 100x100
Pole Length 27.6" (70 cm)
Arm Length Triple arm length: 29.5" (75 cm)
Rotation Max (armed) 360 degree, (armless) 180 degree
Mounting Options Desk
