$1,687.00

Chief LPAUB or LPAUS Large FUSION Height Adjustable Mobile Cart

FCA610 Shelf and FCA650 CPU holder (purchase separately)

Product ID 17283
HIGHLIGHTS
Chief LPAUB or LPAUS Large FUSION Height Adjustable Mobile Cart

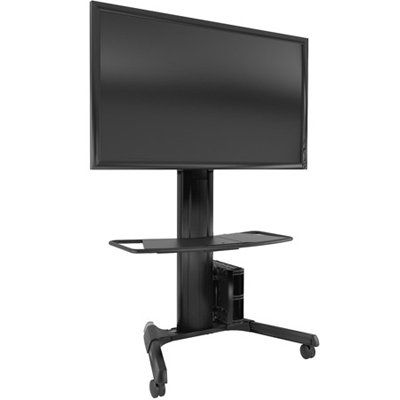

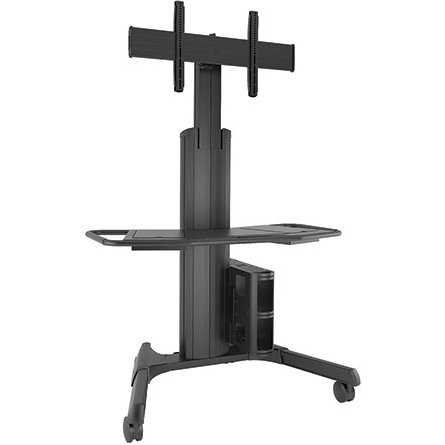

LPAUB shown with FCA610 Shelf and FCA650 CPU holder (purchase separately)

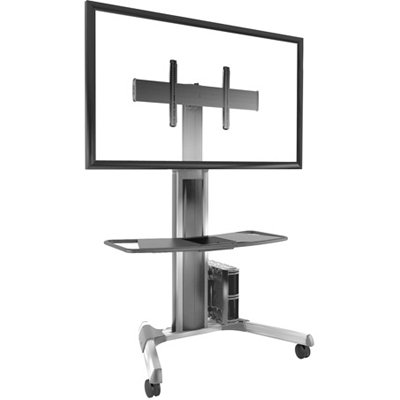

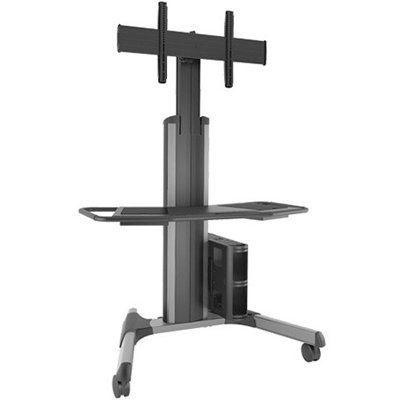

LPAUS shown with FCA610 Shelf and FCA650 CPU holder (purchase separately)

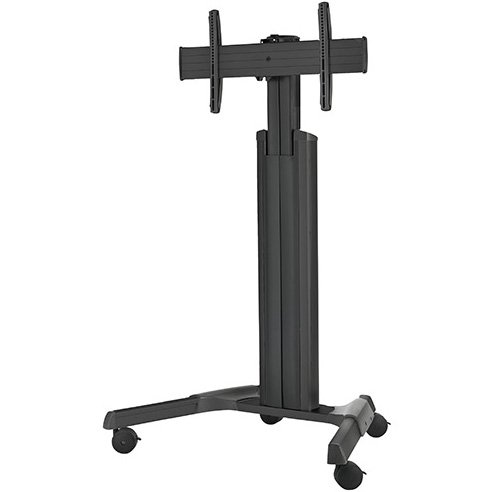

Front view of LPAUB

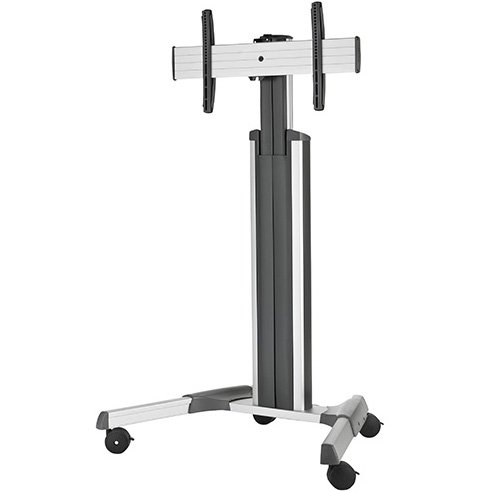

Front view of LPAUS
LPAUB shown with FCA610 Shelf and FCA650 CPU holder (purchase separately)
Chief LPAUB or LPAUS Large FUSION Height Adjustable Mobile Cart
LPAUB shown with FCA610 Shelf and FCA650 CPU holder (purchase separately)
LPAUS shown with FCA610 Shelf and FCA650 CPU holder (purchase separately)
Front view of LPAUB
Front view of LPAUS
LPAUB shown with FCA610 Shelf and FCA650 CPU holder (purchase separately)

Highlights

  • Height adjustable mobile AV cart
  • UL Listed
  • Screen Size:  40 - 80"
  • Weight capacity: 200 lbs
  • VESA compatibility: 200 x 200 - 800 x 400 mm
  • Lockable front two casters

Description

Chief LPAU is UL Listed and is designed for professional use in corporate and classroom environments. This AV cart is height adjustable and the adjustment can be done by one person via hand or 1/2" hex bit on a power drill. The center of the display to the floor can range from 50 - 70".

  • Note: shelf and CPU holder accessories sold separately.

  • Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

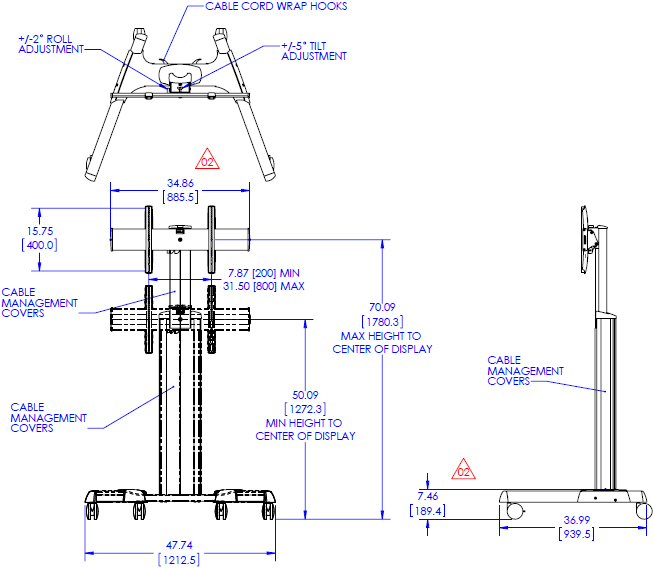

Technical Drawing

Technical Drawing for Chief LPAUB or LPAUS Large FUSION Height Adjustable Mobile Cart

Specifications

Center of Display to Floor Table Range 50 - 70" (1270 - 1770 mm)
Certifications UL Listed
Color Black, Silver
Mounting Pattern Compatibility (Universal Versions) 200 x 200 - 800 x 400 mm
Notes (Portrait screen orientation if screen is at least 34" tall and has a 400 x 400mm mounting pattern or smaller)
Number of Monitors 1
Post-Installation Leveling Roll Yes
Shipping Weight 97 lbs (44 kg)
Solution Type Universal
Tilt +/- 5°
Typical Screen Sizes 42 - 86"
Weight Capacity 200 lbs (90.7 kg)
Orientation Landscape

Features

  • Sleek look suitable for multiple environments

  • Turn knob allows single user to easily adjust the screen height by hand or 1/2" hex drill bit to any height between 50 and 70 inches (127 - 177 cm)

  • Flexible cable covers allow lay in access anywhere along column

  • Centris Technology provides tilt and roll with use of knobs

  • Landscape screen orientation (portrait only if screen is at least 34" tall and has a mounting pattern 400 x 400mm or smaller)

  • Ships with preassembled heavy-duty casters (front two casters are lockable)

Model LPAUB, LPAUS
Manufacturer Chief Mounts
Part Number LPAUB, LPAUS
UPC 841872155951
Color Black, Silver
Center of Display to Floor/Table Range 50 - 70" (1270 - 1770 mm)
Mounting Pattern 200 x 200 - 800 x 400 mm
Tilt +/-5 degree
Monitor Size 42 - 86"
Weight Capacity 200 lbs (90.7 kg)
Shipping Weight 97 lbs (44 kg)
Overall Dimensions 77.9" x 45" x 33.2" (1801 x 1143 x 844 mm)
Mounting Options Cart
Number of Monitors 1 Monitor
Post-Installation Leveling Roll Yes
Orientation Landscape
