Chief LFAUB or LFAUS Large FUSION Height Adjustable Floor Stand

Product ID 17406
Chief LFAUB or LFAUS Large FUSION Height Adjustable Floor Stand

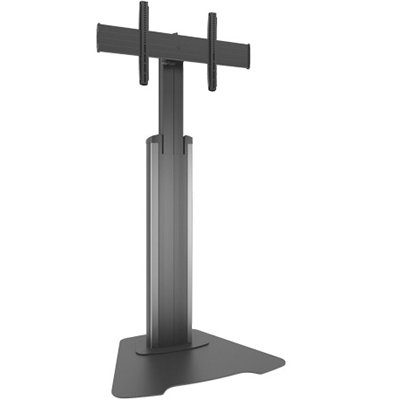

LFAUS silver
Chief LFAUB or LFAUS Large FUSION Height Adjustable Floor Stand
LFAUS silver


Chief LFAUB or LFAUS floor AV stand incorporates rounded edges and sleek features to give a softer, professional feel that fits well in corporate and classroom environments. The height can be adjusted by one person via hand or 1/2" hex bit on a power drill.

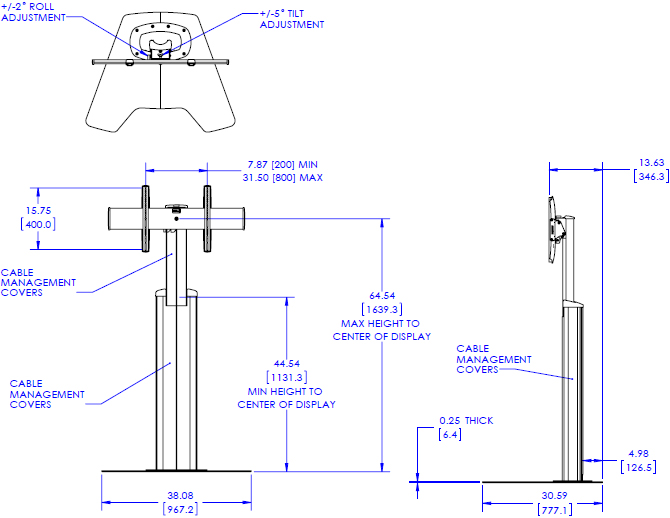

Technical Drawing

Technical Drawing for Chief LFAUB or LFAUS Large FUSION Height Adjustable Floor Stand


Center of Display to Floor Table Range 44.5" - 64.5" (1131 -1639 mm)
Certifications UL Listed
Color Black, Silver
Mounting Pattern Compatibility (Universal Versions) 200 x 200 - 800 x 400 mm
Notes (Portrait screen orientation if screen is at least 34" tall and has a 400 x 400mm mounting pattern or smaller)
Number of Monitors 1
Post-Installation Leveling Roll Yes
Shipping Weight 135 lbs (61.23 kg)
Solution Type Universal
Tilt +/- 5°
Typical Screen Sizes 42 - 86"
Weight Capacity 200 lbs (90.7 kg)
Orientation Landscape


  • Sleek look suitable for multiple environments

  • Turn knob allows single user to easily adjust the screen height by hand or 1/2" hex drill bit to any height between 41.5 and 61.5 inches (106-156 cm)

  • Flexible cable covers allow lay in access anywhere along column

  • Centris Technology provides tilt and roll with use of knobs

Manufacturer Chief Mounts
Part Number LFAUB, LFAUS
UPC 841872156330
Color Black, Silver
Center of Display to Floor/Table Range 44.5" - 64.5" (1131 -1639 mm)
Mounting Pattern 200 x 200 - 800 x 400 mm
Overall Dimensions 72.4" x 38.1" x 30.6" (1839 x 968 x 777 mm)
Shipping Weight 135 lbs (61.23 kg)
Tilt +/- 5 degree
Screen Size 42 - 86" in
Weight Capacity 200 lbs (90.7 kg)
Mounting Options Stand
Orientation Landscape
Post-Installation Leveling Roll Yes
Number of Monitors 1 Monitor
Mounting Pattern 200 x 200 - 800 x 400 mm
