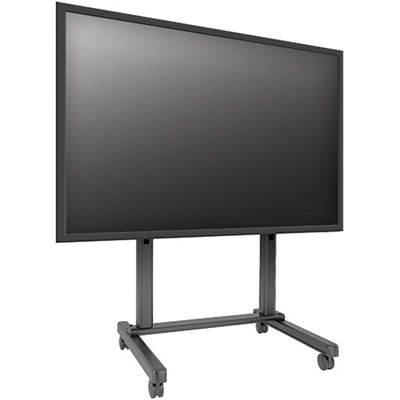

Chief XVM1X1U FUSION Freestanding Video Wall Cart (90-105")

Product ID 17473


  • A freestanding video wall cart or stand
  • Designed for extra large screens more than 90"
  • UL Listed
  • Screen Sizes: 90" - 105"
  • Weight Capacity:  500 lbs


Chief's XVM1X1U Fusion extra large freestanding single screen solution makes it possible to construct a mobile video wall solution for screens larger than 90".

  • An extra large display and the XVM1X1 will create an impactful digital signage solution.

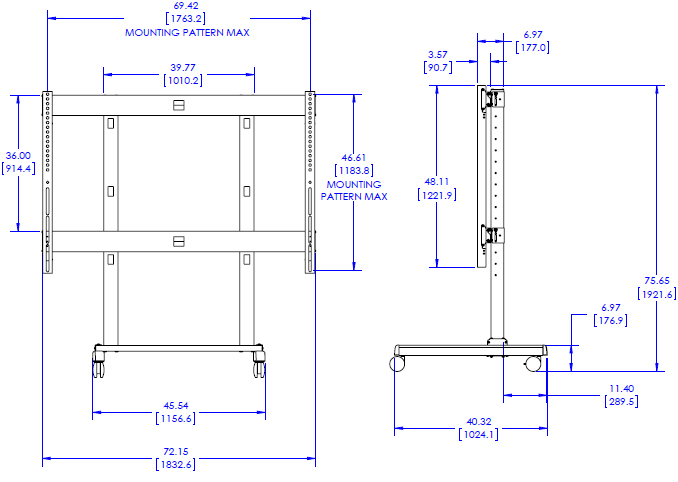

Technical Drawing

Technical Drawing for Chief XVM1X1U FUSION Extra Large Freestanding Video Wall Solution



Center of Display to Floor/Table Range

51.6" (131 cm)


UL Listed



Mounting Pattern Compatibility (Universal Versions)

1763 mm x 1183 mm max M16 Screws

Overall Dimensions (H x W x D)

75.7" x 72.2" x 40.3" (192.2 cm x 183.3 cm x 102.4 cm)

Shipping Weight

191.00 lbs

TV Height Range

> 48"

TV Width Range

> 72"

Typical Screen Sizes

90" - 105"

Weight Capacity

500 lbs. (226.8 kg)



  • For single extra large screen larger than 90"

  • Universal bracket design to match multiple displays

  • Smooth rolling casters for effortless positioning (1 locking caster per leg)

  • Integrated cable management for a clean installation

  • Available leveling feet (FCA776) for more permanent installations

Model XVM1X1U
Manufacturer Chief Mounts
Part Number XVM1X1U
UPC 841872156477
Color Black
Center of Display to Floor/Table Range 51.6" (131 cm)
Mounting Pattern 1763 mm x 1183 mm max M16 Screws
Overall Dimensions 75.7" x 72.2" x 40.3" (192.2 cm x 183.3 cm x 102.4 cm)
Shipping Weight 191 lbs
TV Height Range > 48"
TV Width Range > 72"
Monitor Size 90" -105"
Weight Capacity 500 lbs (226.8 kg)
Mounting Options Cart
