$5,928.00

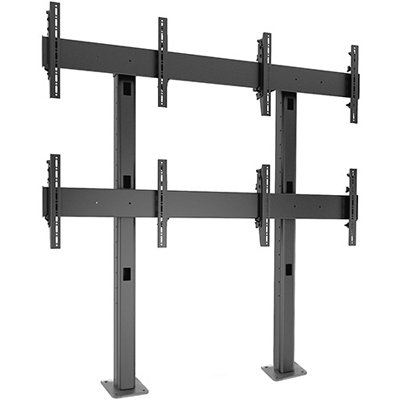

Chief LBM2X2U FUSION 2x2 Large Bolt Down Freestanding Video Wall

Product ID 17505
Chief LBM2X2U FUSION 2x2 Large Bolt Down Freestanding Video Wall
Chief LBM2X2U FUSION 2x2 Large Bolt Down Freestanding Video Wall

Description

Chief's LBM2X2U FUSION Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.

  • Screen array configuration: 2 screens wide x 2 screens high.

  • Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

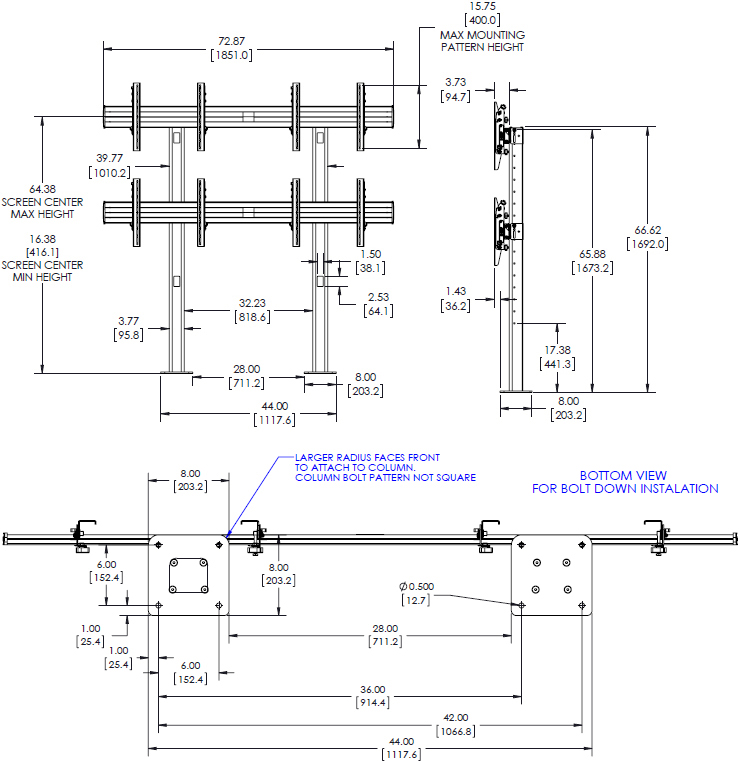

Technical Drawing

Technical Drawing for Chief LBM2X2U FUSION 2x2 Large Bolt Down Freestanding Video Wall

Specifications

Center of Display to Floor Table Range 16.38" (416 mm) (minimum bottom row) - 64.38" (1635 mm) (maximum top row)
Certifications UL Listed, TAA Compliant
Color Black
Lateral Shift Yes
Manual Height Adjustment Micro-adjustment up to 0.75" (19 mm) per screen
Mounting Pattern Compatibility (Universal Versions) Any width x 100 mm - 400 mm
Number of Monitors 4
Overall Dimensions (H x W x D) 72.9" x 72.9" x 9.43" (1852 x 1851 x 239 mm)
Plumb Adjustment Micro-adjustment up to 0.75" (19 mm)
Screen Array Configuration 2 x 2
Shipping Weight 177 lbs (80.29 kg)
Solution Type Universal
Typical Screen Sizes 42 - 50" (Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility)
Weight Capacity 125 lbs (56.7 kg)
Orientation Landscape

Features

  • 2 x 2 screen arrangement for 42 - 50" screens. Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility

  • Easily align displays with independent height, plumb and lateral shift adjustment

  • Bolt-down solution allows for a permanent solution

  • Integrated cable management for a clean installation

  • TAA Compliant

Model LBM2X2U
Manufacturer Chief Mounts
Part Number LBM2X2U
UPC 841872157511
Center of Display to Floor/Table Range 16.38" (416 mm) (minimum bottom row) - 64.38" (1635 mm) (maximum top row)
Color Black
Manual Height Adjustment Micro-adjustment up to 0.75" (19 mm) per screen
Mounting Pattern Any width x 100 mm - 400 mm
Overall Dimensions 72.9" x 72.9" x 9.43" (1852 x 1851 x 239 mm)
Plumb Adjustment Micro-adjustment up to 0.75" (19 mm)
Monitor Size 42 - 50"
Weight Capacity 125 lbs (56.7 kg)
Shipping Weight 177 lbs (80.29 kg)
Lateral Shift Yes
Orientation Landscape
Number of Monitors 4

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
