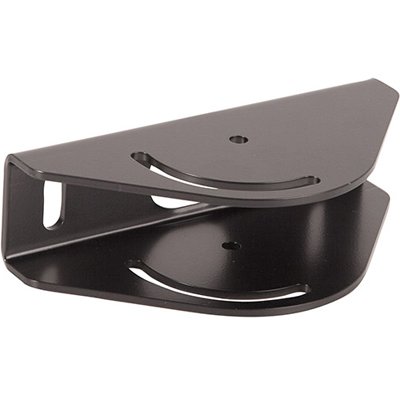

Chief CPA395 Pin Connection Angled Ceiling Plate

Product ID 17518
Chief CPA395 Pin Connection Angled Ceiling Plate
Chief CPA395 Pin Connection Angled Ceiling Plate


Chief CPA395 is perfect for projector or flat panel installations on an angled ceiling. Chief offers a variety of ceiling plates that are compatible with:

  • CPA extension columns

  • LCM Single Display Ceiling Mounts

  • MCM Single Display Ceiling Mounts

  • LCM Multi-Display Ceiling Mounts

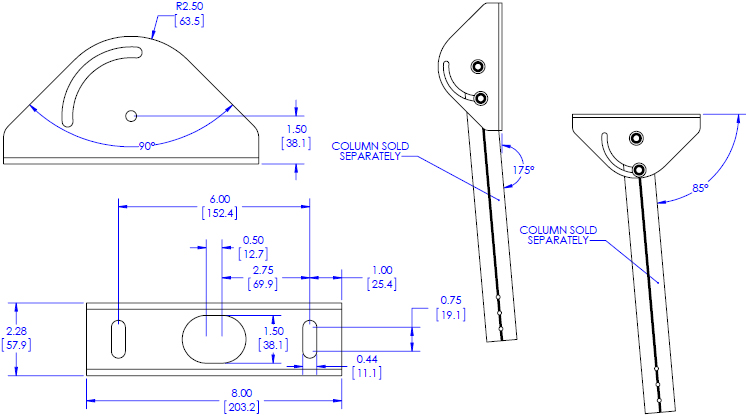

Technical Drawing

Technical Drawing for Chief CPA395 Angled Ceiling Plate, Pin Connection




TV Certified, UL Listed




TAA Complaint

Shipping Weight

3.85 lbs

Weight Capacity

500 lbs (226.8 kg)



  • Perfect for projector installations on an angled ceiling.
  • Adjusts from -5° to +95° to level a mount from an angled ceiling
  • Compatible with pin connection CPA column system
  • TAA Compliant


Model CPA395
Manufacturer Chief Mounts
Part Number CPA395
UPC 841872156446
Color Black
Weight Capacity 500 lbs (227kg)
Adjustments From -5° to +95° to level a mount from an angled ceiling
Shipping Weight 3.85 lbs
