Innovative 9109-Switch Freestanding Dual Monitor Stand- 14" Pole

Base Dimensions: 9.5" W x 10.5" L. Base Weight: 10 lbs. Weight Range: Up to 18 lbs per monitor. Monitor size: up to 24" widescreen

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.

Product ID 17629
Innovative 9109-Switch Freestanding Dual Monitor Stand- 14" Pole

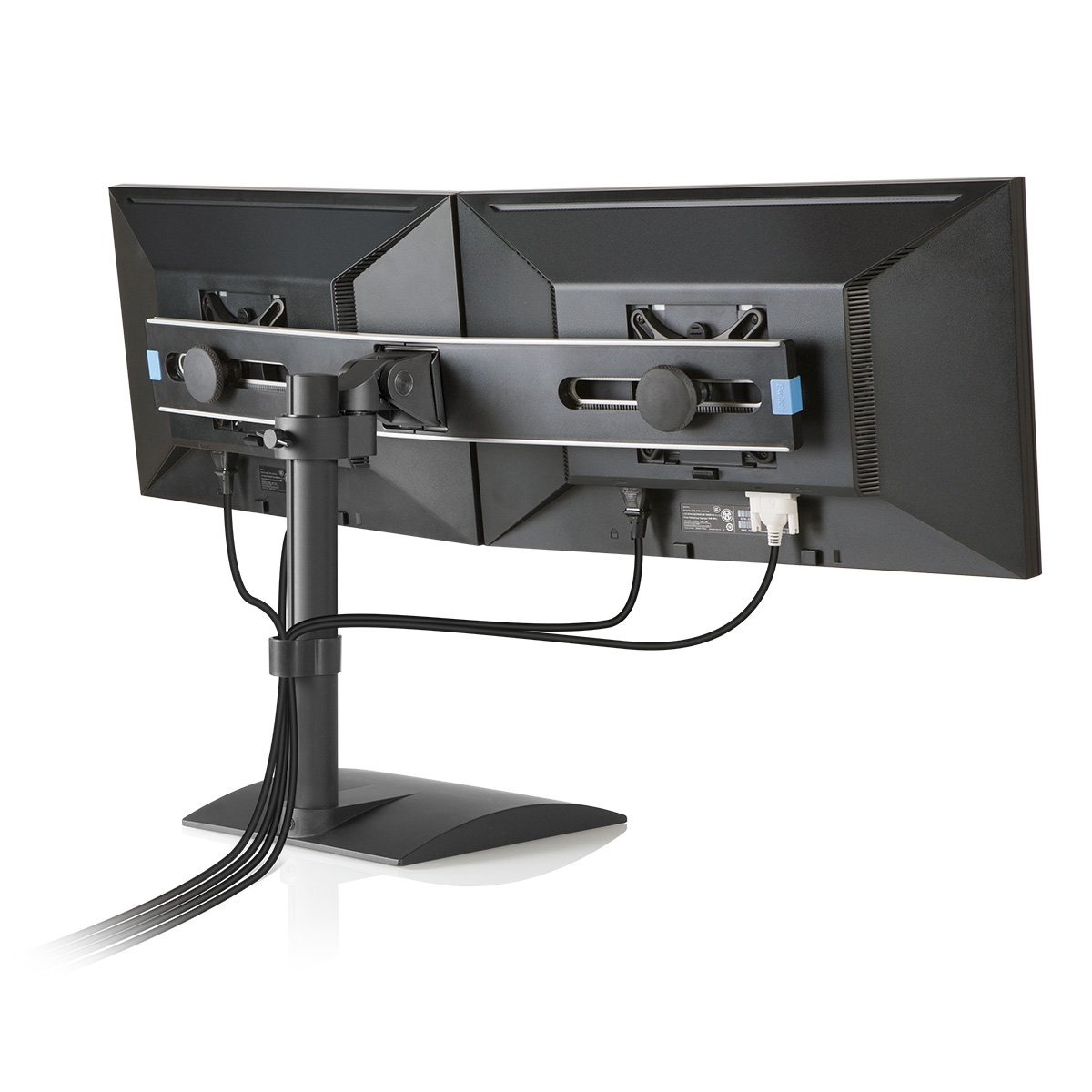

Cable management

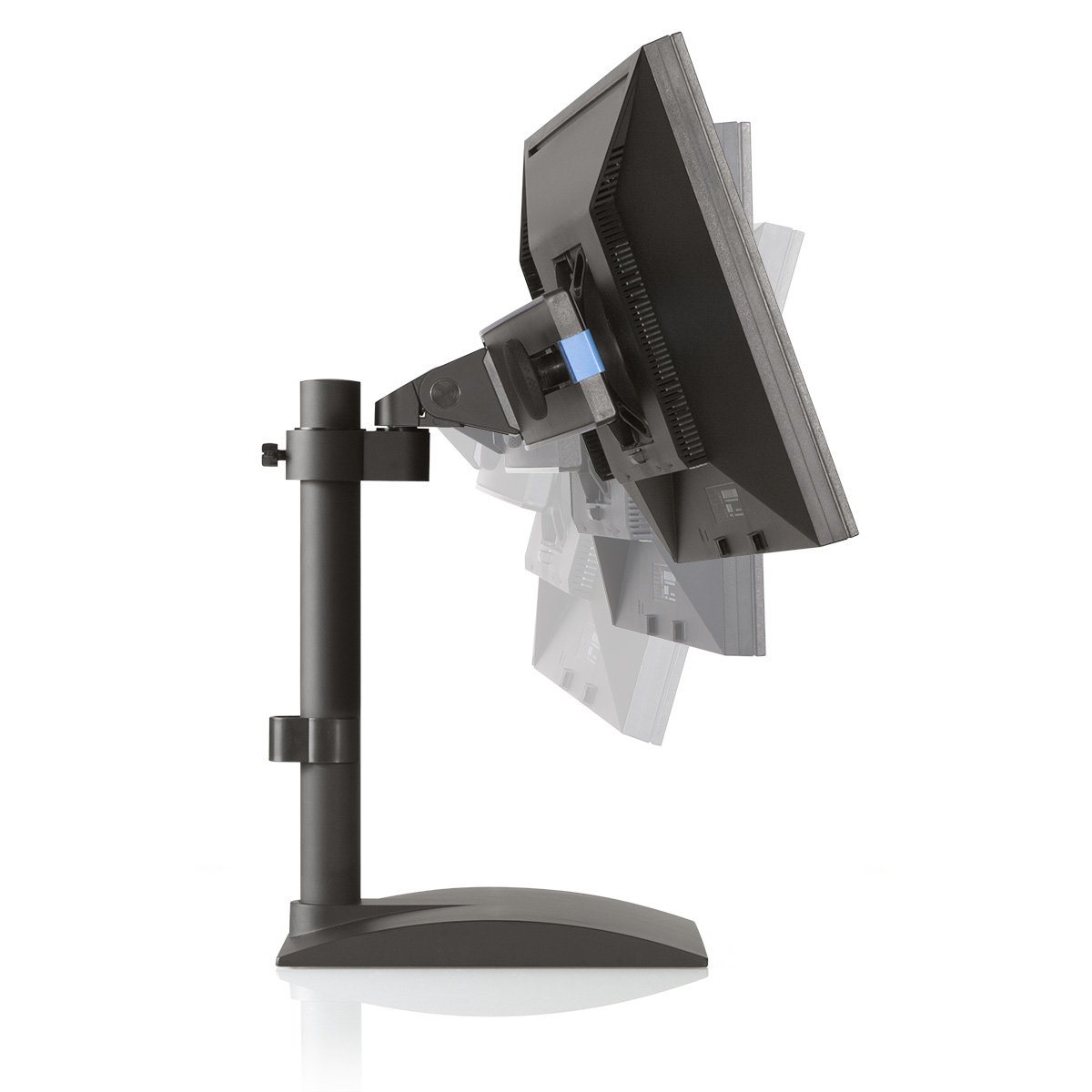

Wide range of monitor tilt

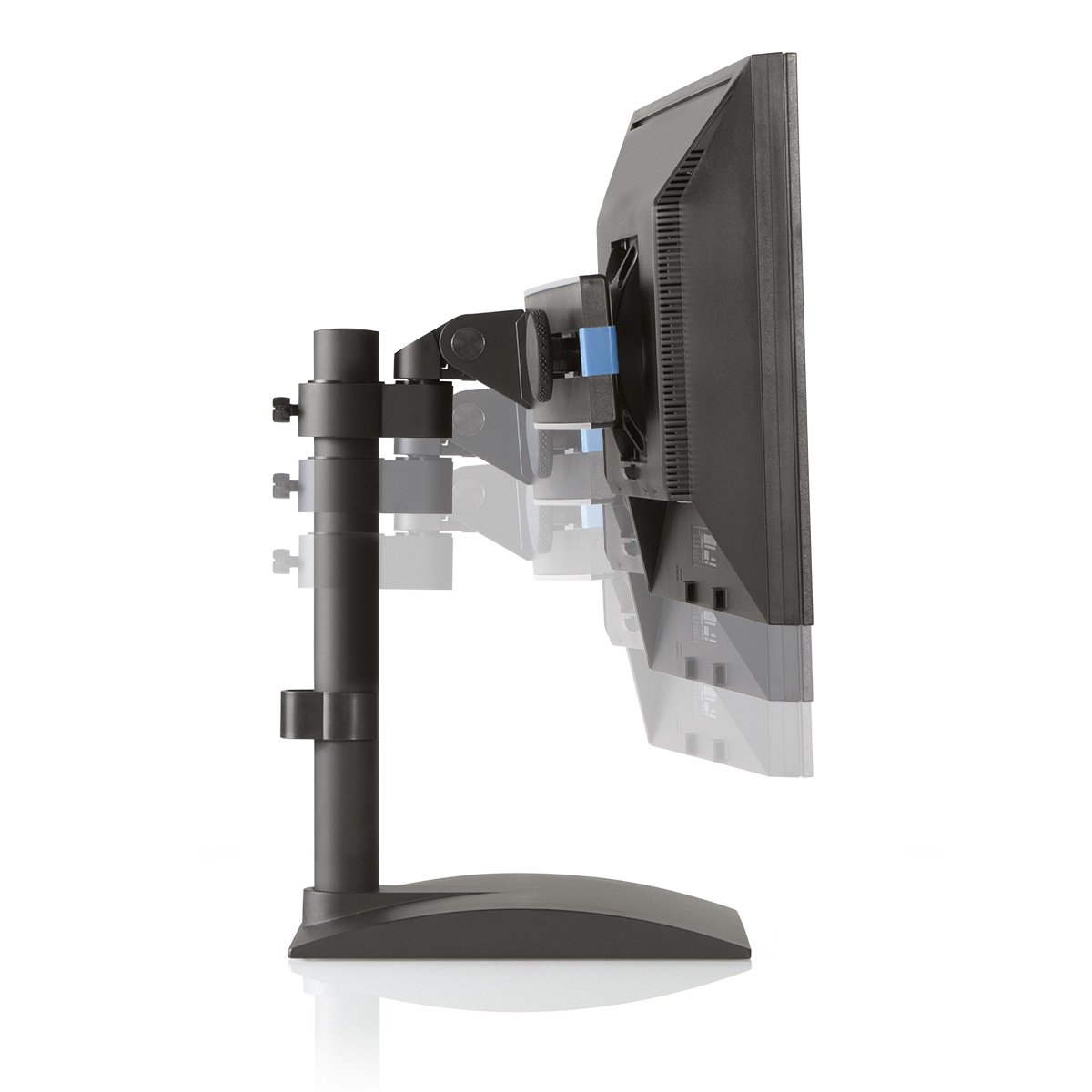

Adjustable monitor height

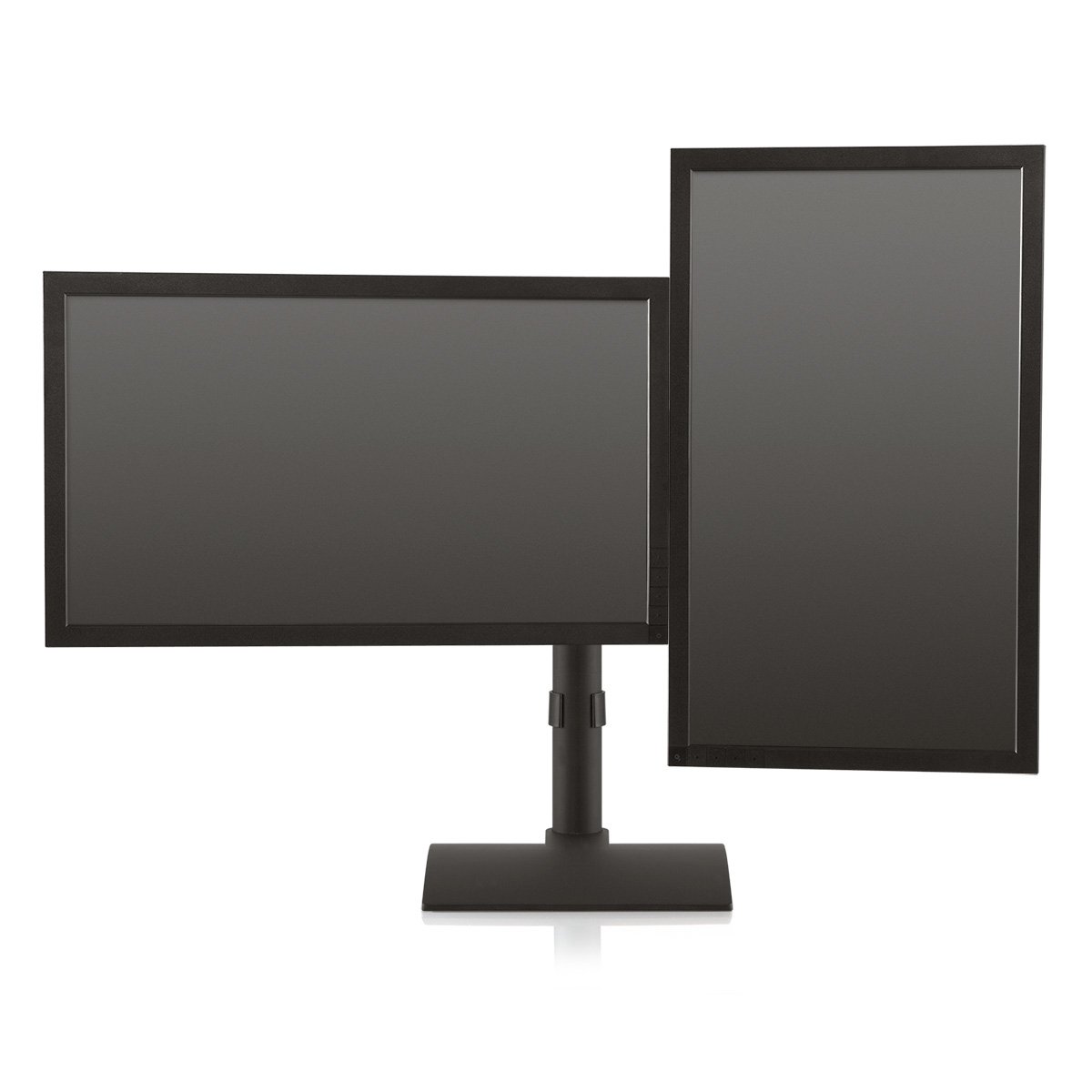

Portrait or landscape viewing
Innovative 9109-Switch Freestanding Dual Monitor Stand- 14" Pole
Cable management
Wide range of monitor tilt
Adjustable monitor height
Portrait or landscape viewing


Increase productivity and save space with the 9109-Switch dual monitor stand. The monitor mount includes a freestanding base for quick setup.

Innovative 9109-Switch is a VESA-compatible freestanding dual monitor stand. The 90-degree pivot feature allows you to view the LCD in either landscape or portrait format. Comes with a freestanding base - instant setup.

Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

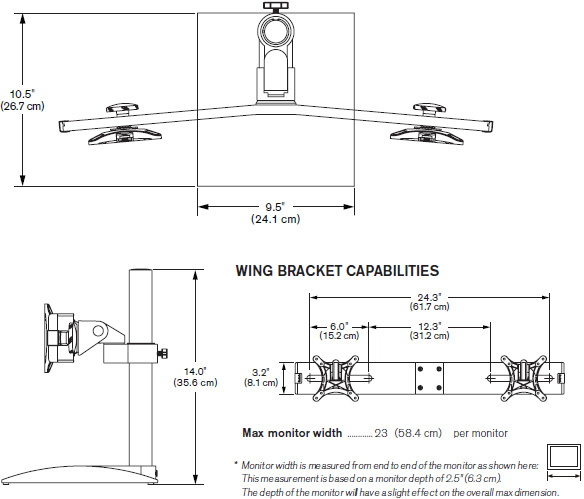

Technical Drawing

Technical Drawing for Innovative 9109-Switch Freestanding Dual Monitor Stand - 14

Technical Specifications

Color 104 - Vista Black
Screen Size Up to 24" widescreen
Pole Height 14"
Base Dimensions 9.5" W x 10.5" L
Base Weight 2.1 lbs
Monitor Tilt 200 degrees
Monitor Pivot Landscape to Portrait (90 degrees)
VESA Compatibility 75mm, 100mm quick-release adapters included
Mount Configurations Desktop stand
Weight Capacity Up to 18 lbs per monitor
Warranty 10 years


  • Dual monitor stand accommodates monitors up to 24" widescreen (monitor widths may vary)

  • 14" pole, position monitor at desired height

  • Sturdy base provides a secure platform

  • Base dimensions: Width 9.5", Length 10.5", Weight. 2.1 lbs

  • LCD monitor stand is VESA-monitor compatible - 75mm, 100mm VESA adapters included

Model 9109-Switch
Manufacturer Innovative LCD Arms
Part Number 9109-Switch
Color 104 - Vista Black
Pole Length 14
Base Dimensions 9.5
Base Weight 2.1 lbs
Tilt 200 degree
Pivot Landscape to portrait
Mounting Pattern VESA 75mm, 100 mm
Monitor Weight Up to 18 lbs per monitor
Monitor Size Up to 24
Mounting Options Desktop Stand
Number of Monitors 2 Monitors
Warranty 10 Years
