Ergotech FDM-PC-S02 Dual Freedom Arm

Product ID 17669
Ergotech FDM-PC-S02 Dual Freedom Arm
Metal Grey with ICE cube
Silver with ICE cube
White with ICE cube
Metal grey

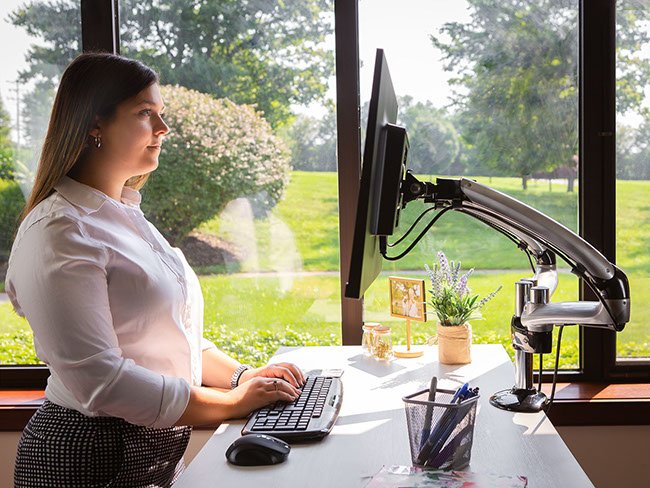

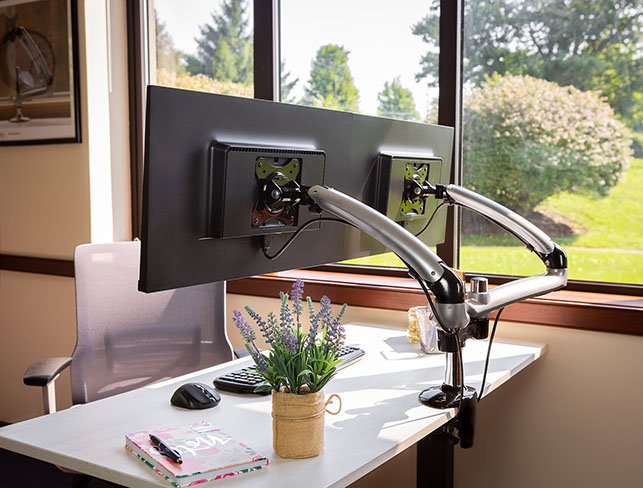

Ergotech FDM-PC-S02 Dual Freedom Arm in application
Ergotech FDM-PC-S02 Dual Freedom Arm in application
Ergotech FDM-PC-S02 Dual Freedom Arm
Metal Grey with ICE cube

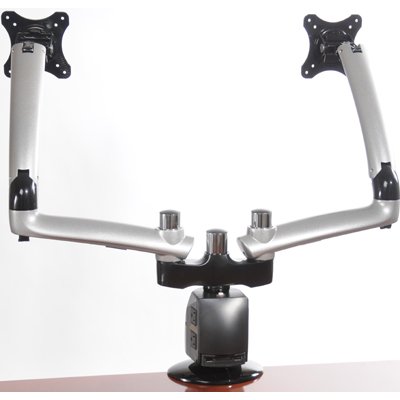

Silver with ICE cube

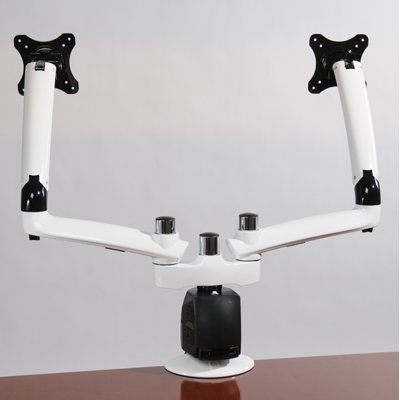

White with ICE cube
Metal grey
Ergotech FDM-PC-S02 Dual Freedom Arm in application
Ergotech FDM-PC-S02 Dual Freedom Arm in application


  • TAA Compliant

  • Product Includes: (2) Aluminum articulating arms, 8" pole, dual yoke and a desk clamp base

  • Offers 14" of dynamic one-touch height adjustment

  • Full extension range of 23.4"

  • Monitor Weight Capacity per monitor: Minimum: 8.4 lbs and Maximum: 17.8 lbs

  • Monitor Size: Up to 27"

  • VESA Compatibility: 75x75 and 100x100

  • Tilt: UP 90°, Down 45°

  • Pan: 180°

  • Rotation: Approximately 300°

  • Max Desk Thickness: 2.5"

  • Available Upgrade: Grommet Mount (FDM-GROM-B)

  • Colors: Metal Gray, Silver

  • Warranty: 3 years

  • Integrated cable management system


Ergotech Freedom Arm is a stylish articulating monitor arm that easily mounts to any standard desk (or wall) allowing you to free up valuable desk space. Give your monitor the versatility it needs & deserves to move freely around your workspace. There is a Freedom Arm model compatible with most PC, Apple iMac and Thunderbolt/Apple Cinema Displays.

Ergotech Freedom Arm Dual easily mounts to any standard desk, creating a clutter-free workspace and giving you the ability to fully customize your monitor placement with the touch of your finger.
Research proves that dual monitors configurations increase productivity and accuracy among workers. Stop taking the time to switch between windows and increase your viewing space with the Freedom Arm dual and work more efficiently.

Technical Drawing

Technical Drawing for Ergotech FDM-PC-S02 Dual Freedom Arm


Color Metal Gray and Silver
Height Adjustment 14"
Extension Range 23.4"
Tilt UP 90°, Down 45°
Pan 180°
Rotation Approximately 300°
Max Desk Thickness 2.5"
Weight Capacity Minimum: 8.4 lbs and Maximum: 17.8 lbs per monitor
Mounting Pattern VESA 75x75 and 100x100
Monitor Size Up to 27"
Warranty 3 years

Frequently Asked Questions

q Is there another part needed to mount the 2nd monitor?

There is no other part needed. The FDM-PC-S02 will allow you to use two monitors.

Model FDM-PC-S02
Manufacturer Ergotech
Part Number FDM-PC-S02
Color White, Metal Grey and Silver
Monitor Size 27"
Height Adjustment 14"
Maximum Extension 23.4"
Weight Capacity 7-17.8 lbs per monitor
Tilt Up 90 degree, Down 45 degree
Pan 180 degree
Rotation 360 degree
Mounting Options Desk
Pole Length 8"
Pole Diameter 1.5"
Maximum Monitor Size 27"
Monitor Placement Side-by-Side

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Product Warranty

Seller warrants that its products will be free from defects in material and workmanship when the title passes to the Buyer. Seller will repair or replace, at its discretion, any defective product without charge (shipping charges excluded) for a period of: Freedom Arm 3 years, 200 Series Arm Lifetime, 320 Series Arm 5 years, 7Flex Arm 10 years, 100 Series Monitor Mounts Lifetime, OmniLink 10 years, Tablik 3 years, VersaStand 1 year, VersaFlex 1 year, One Touch 10 years unit/parts, 2 years motor - after the original date of purchase, unless the product damage resulted from Buyer abuse, misuse or negligence. Seller may require proof of purchase before performing any repairs or replacing any products during the warranty period. Except as specifically set forth above, Seller makes no warranties, express or implied and specifically disclaims any warranty of merchantability or fitness for a particular purpose. Repair or replacement of the product ordered from Seller shall be Buyer’s exclusive remedy.

Warranty Claim Procedure

Please call 877-523-2767 or email [email protected] with the return reason in order to initiate the warranty claim procedure.

Wait for return request approval from Ergotech. You must obtain an RMA # from Ergotech prior to shipping your item back for a refund or replacement.

Once you receive return approval and your RMA#, please repackage the item(s), using the original packaging boxes/inserts/padding (when possible) to minimize damage and to ensure the product(s) are returned to us in the same condition as you received it.

Send the product to the following address:
Ergotech c/o Innovative Office Products, Inc.
100 Kuebler Road
Easton, PA 18040

Your refund will be processed within 10 business days of receiving your return and inspecting your item.
