The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

$215.00

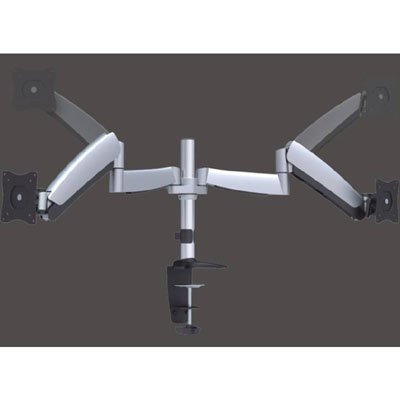

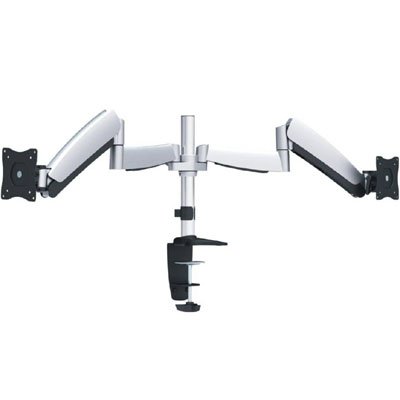

Ergotech 320-C14-C024 One-Touch Dual Monitor Arm

Product ID 17672
HIGHLIGHTS
Ergotech 320-C14-C024 One-Touch Dual Monitor Arm
Ergotech 320-C14-C024 One-Touch Dual Monitor Arm

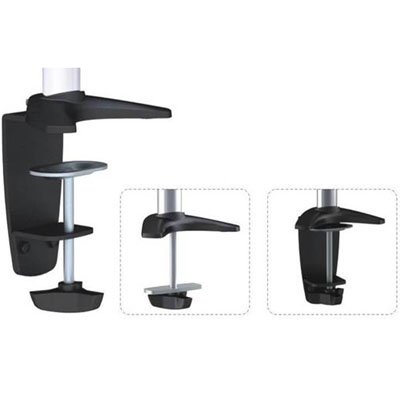

Grommet and desk clamp mount in one
Ergotech 320-C14-C024 One-Touch Dual Monitor Arm
Ergotech 320-C14-C024 One-Touch Dual Monitor Arm
Grommet and desk clamp mount in one

Highlights

  • Product Includes: 14" pole + desk clamp and grommet mounting hardware

  • Integrated Cable Management System

  • Monitor Weight Capacity: 0 lbs - 19.8 lbs

  • Monitor Size: Maximum 24"

  • VESA Compatibility: 75mm & 100mm

  • Height Adjustment: 14"

  • 320-C14-C012 Link Extension: 23"

  • Tilt: +90°/-40°

  • Pan: 180°

  • Rotation: 360°

  • Max Desk Thickness: 3.5"

  • Warranty: 5 years

Description

The 320 Series is an affordable articulating arm that delivers a powerful solution to your mounting needs. One of the most unique features of the 320 Series arm is the fact that it comes with both a desk clamp and grommet mount all in one, allowing it to convert based on your workspace setup.

Easily adjust the monitor height and position with just a fingertip. The built-in spring tension gauge enables monitor sizes up to 24" and weights ranging from 0-19.8lbs. Polished aluminum construction offers greater durability and enhanced aesthetics.

Ergotech 320-C14-C024 - 320 Series Articulating LCD Monitor Arm is a powerful solution to your monitor mounting needs when cost is a driving factor. Easily adjust the monitor height and position with just a fingertip! The 320 Series LCD Monitor Arm offers 360º degrees rotation and a range of -40º to +90º tilt. The built-in spring tension gauge enables various monitor sizes and weights ranging from 0-25lbs and up to 24". Polished aluminum construction offers greater durability and enhanced aesthetics. The 320 Series LCD Monitor Arm is ergonomically designed for adjustment in any position.



Technical Drawing

Technical Drawing for Ergotech 320-C14-C024 One-Touch Dual Monitor Arm

Specifications

Color Silver
Monitor Size Maximum 24"
Mounting Options Grommet and Desk Clamp Mount
Mounting Pattern VESA 75mm and 100mm
Weight Capacity 0 - 19.8 lbs
Height Adjustment 14"
Extension Range 23"
Tilt +90º/-40º
Pan 180º
Rotation 360º
Maximum Desk Thickness 3.5"
Warranty 5 years

Product Options/Accessories

Frequently Asked Questions

q Both monitors move in unison up and down the pole 14 inches. Is that correct?
a

They do move in unison, but the pole is not supposed to be used for height adjustment after the arm is setup. The user sets the arm at the pole height and then leaves it there. They would need to remove it and place it at the height they want later.

Model 320-C14-C024
Manufacturer Ergotech
Part Number 320-C14-C024
UPC 728028198232
Color Silver
Material Steel and aluminum
Monitor Size Up to 24" each
Rotation 360 degree
Tilt -40 to +90 degree
Mounting Options Desk
Pole Length 14"
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
Weight Capacity 0 - 19.8 lbs
Pan 180 degree
Maximum Desk Thickness 3.5"
Height Adjustment 14"
Maximum Extension 23"
Mounting Pattern VESA 75mm & 100mm
Warranty 5 years

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Product Warranty

Seller warrants that its products will be free from defects in material and workmanship when the title passes to the Buyer. Seller will repair or replace, at its discretion, any defective product without charge (shipping charges excluded) for a period of: Freedom Arm 3 years, 200 Series Arm Lifetime, 320 Series Arm 5 years, 7Flex Arm 10 years, 100 Series Monitor Mounts Lifetime, OmniLink 10 years, Tablik 3 years, VersaStand 1 year, VersaFlex 1 year, One Touch 10 years unit/parts, 2 years motor - after the original date of purchase, unless the product damage resulted from Buyer abuse, misuse or negligence. Seller may require proof of purchase before performing any repairs or replacing any products during the warranty period. Except as specifically set forth above, Seller makes no warranties, express or implied and specifically disclaims any warranty of merchantability or fitness for a particular purpose. Repair or replacement of the product ordered from Seller shall be Buyer’s exclusive remedy.

Warranty Claim Procedure

Please call 877-523-2767 or email [email protected] with the return reason in order to initiate the warranty claim procedure.

Wait for return request approval from Ergotech. You must obtain an RMA # from Ergotech prior to shipping your item back for a refund or replacement.

Once you receive return approval and your RMA#, please repackage the item(s), using the original packaging boxes/inserts/padding (when possible) to minimize damage and to ensure the product(s) are returned to us in the same condition as you received it.

Send the product to the following address:
Ergotech c/o Innovative Office Products, Inc.
100 Kuebler Road
Easton, PA 18040
Attn: RMA #XXXX

Your refund will be processed within 10 business days of receiving your return and inspecting your item.
