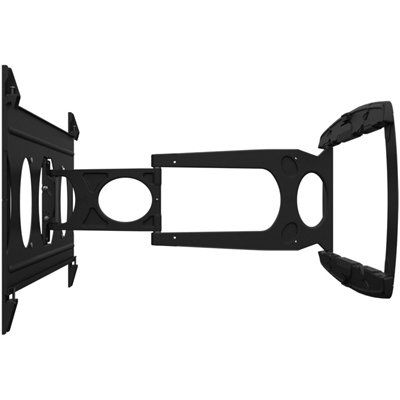

Premier AM100 Low-Profile Ultra-Slim Swingout Wall Mount

Product ID 17749
HIGHLIGHTS

Highlights

  • Low profile, ultra-slim swingout flat panel mount
  • Three different options for swingout arm placement

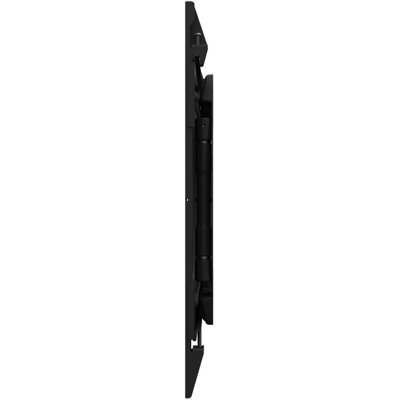

  • Collapses 1.5" from the wall

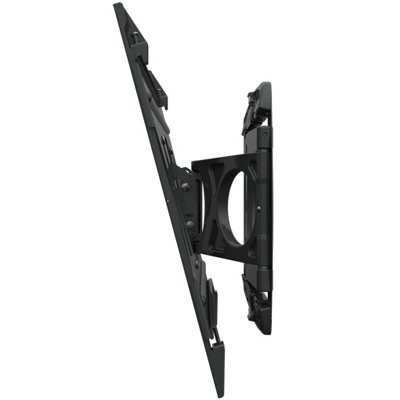

  • 15 degree of downward tilt

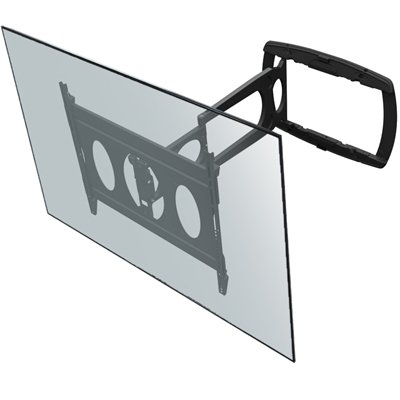

  • Extends 30" from the wall
  • 180 degree of swivel
  • Universal mounting pattern up to 630 x 526
  • Cable management

Description

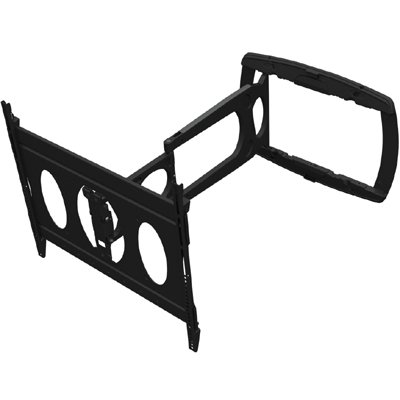

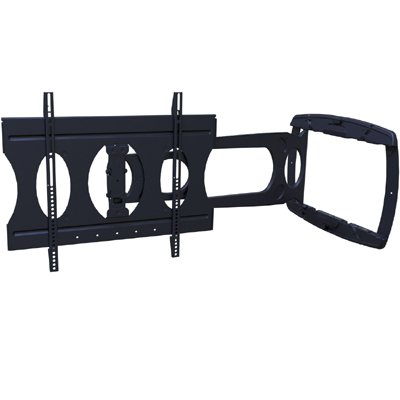

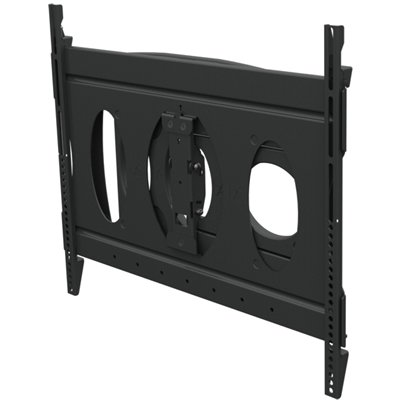

Premier AM100 is an ultra-slim mounting wall plate that provides three options for the swing arm placement, allowing the mount to swing out from the left, right, or center, based on the installation requirements. Featuring a cable management solution that is built into the arm of the mount, this feature keeps power and cables protected when pulling or pushing the display.

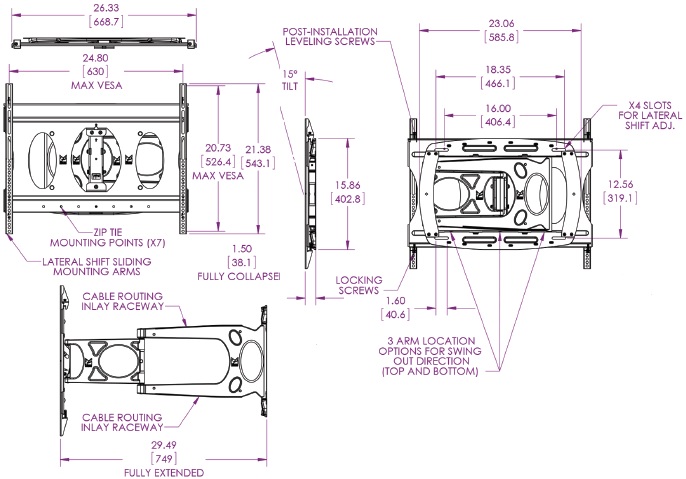

Technical Drawing

Technical Drawing of Premier AM100 Low-Profile Ultra-Slim Swingout Wall Mount

Specifications

ColorBlack
Weight29.1 lbs (13.2kg)
Width26.33" (669mm)
Height21.38" (543mm)
Depth1.5" - 29.49" (38mm - 749mm)
Weight Capacity100 lbs (45.5kg)
Tilt15°
Extension29.49" (749mm)
Swivel180°
CompatibilityVESA pattern 100 x 100 - 630 x 526
Shipping Dimensions30.5" W x 19" H x 4" D
WarrantyLifetime

Product Options/Accessories

Model AM100
Manufacturer Premier Mounts
Part Number AM100
UPC 829973086480
Color Black
Weight Capacity 100 lbs (45.5 kg)
Depth 1.5" - 29.49 mm (38mm - 749mm)
Mounting Pattern VESA 100 x 100 (Min) - 630 x 526 (Max) mm
Tilt +15 degree
Extension 30" (762 mm)
Swivel 180°
Warranty Lifetime
Mounting Options Full-Motion/Swing Wall
Weight 29.1 lbs (13.2 kg)
Width 26.33" (669 mm)
Height 21.38" (543 mm)
Shipping Dimensions 30.5" W x 19" H x 4" D (775 x 483 x 102 mm)
