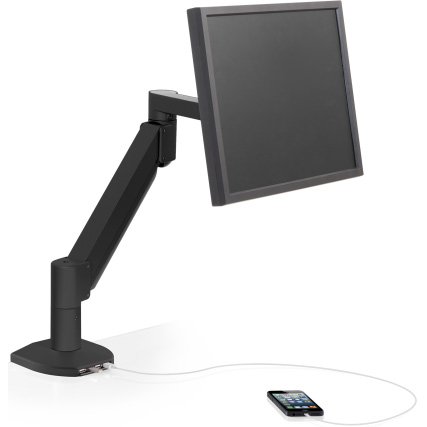

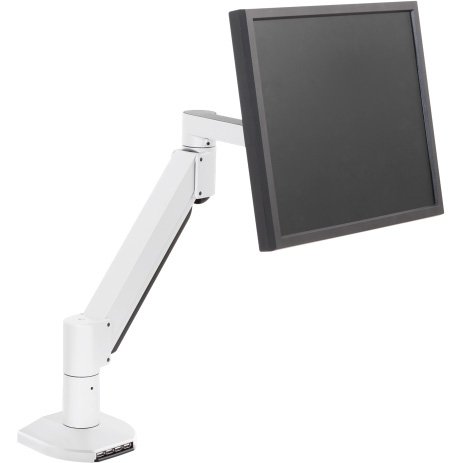

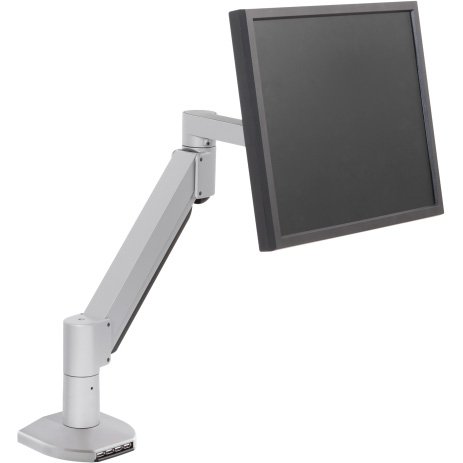

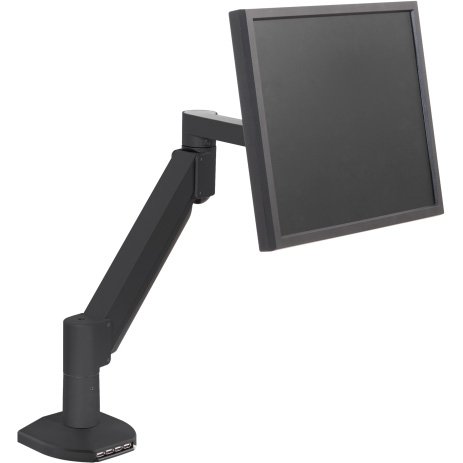

Innovative 7500-Busby Deluxe Monitor Arm with Integrated USB Hub

This product has a lead time of 20 business days. Busby must be connected to a computer and a power outlet to enable devices to be charged. Busby may not charge devices while they are in use.

Product ID 17775


Our heavy duty 7500 monitor arm, now with Busby, an integrated USB hub that offers convenient access to charge all USB devices.

Innovative 7500-Busby deluxe monitor arm brings effortless movement to large monitors. This stable, heavy-duty desk mount ‘floats’ monitors above the desk, where it can be effortlessly raised and lowered with just one hand. Save space and easily position the monitor at an ergonomic viewing angle.

Combined with Busby, you no longer have to crawl under your desk to reach your PC’s USB port! Busby places USB ports right at your fingertips, where they are integrated into your flat panel monitor mount. Busby provides convenient access to charge and power all of your USB-enabled devices, without consuming additional desk space.

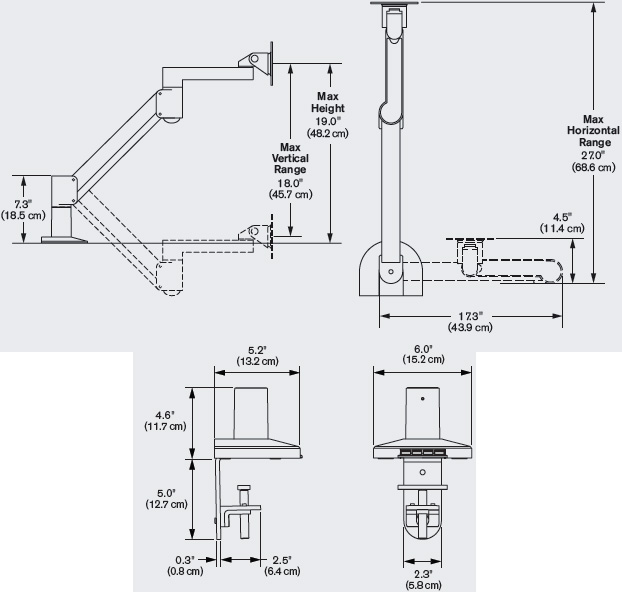

Technical Drawing

Technical Drawing for Innovative 7500-Busby Deluxe Monitor Arm with Integrated USB Hub

Technical Specifications

Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Screen Size Up to 24"
Height Adjustment 18" (45.9 cm)
Extension Range 27" (68.6 cm)
Rotation 360 degrees at three joints
Monitor Tilt 180 degrees
Monitor Pivot Landscape / Portrait
Mount Configurations Desk Edge, Thru-Desk, Grommet
VESA Compatibility 75 & 100mm, adapter included
Warranty 10 Years
Cable Management Cables are clipped beneath arm
Monitor Weight
  • 7500-500-Busby: 2 - 13 lbs (0.9 - 5.9 kg)

  • 7500-800-Busby: 6 - 21 lbs (2.7 - 9.5 kg)

  • 7500-1000-Busby: 8 - 27 lbs (3.6 - 12.2 kg)

  • 7500-1500-Busby: 12 - 40 lbs (6.1 - 19.9 kg)


  • The monitor mount provides convenient access to charge and power all USB-enable devices

  • Busby features four USB 2.0 ports

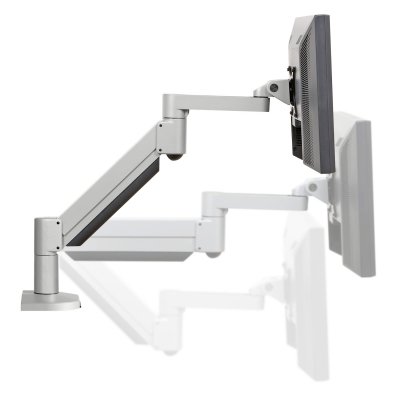

  • Monitor arm offers 18" of vertical range (9" up and down from horizontal) and 27" of horizontal range

  • Arm includes our spring-assisted HD tilter for smooth monitor pivoting

  • Cable management routes cables inside the monitor arm

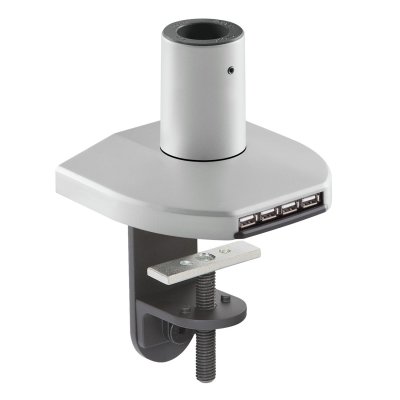

  • Monitor mount clamps to desk edge, through grommet hole or bolt through desk

  • VESA-monitor compatible - 75mm & 100mm VESA adapters included; please call for non-VESA options

Model 7500-Busby
Manufacturer Innovative LCD Arms
Part Number 7500-Busby
Color 104 - Vista Black, 124 - Silver, 248 - Flat White
Rotation At three joints 360 degree
Tilt 180 degree
Pivot Landscape to portrait
Mounting Pattern VESA 75mm and 100mm
Monitor Weight 7500-500-Busby: 2-13 lbs (0.9-5.9 kg); 7500-800-Busby: 6-21 lbs (2.7-9.5 kg), 7500-1000-Busby: 8-27 lbs (3.6-12.2 kg), 7500-1500-Busby: 12-40 lb (5.4-18.1 kg)
Mounting Options Desk
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Monitor Size Up to 24"
Height Adjustment 18" (45.7 cm)
Extension 27" (68.6 cm)
Mounting Options Desk Edge, Thru-Desk, Grommet
Warranty 10 Years
