Innovative 7000-Busby-8408 Dual Mount with Integrated USB Hub
This product has a lead time of 20 business days. Busby must be connected to a computer and a power outlet to enable devices to be charged. Busby may not charge devices while they are in use.
Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Description

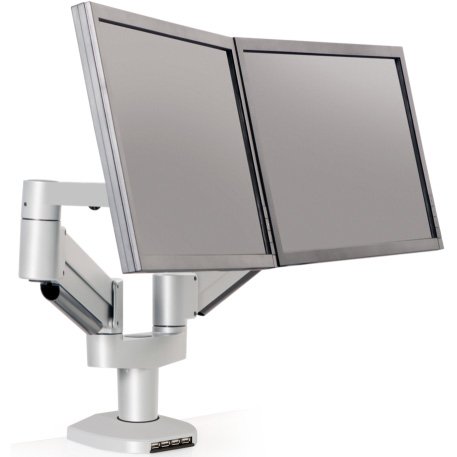

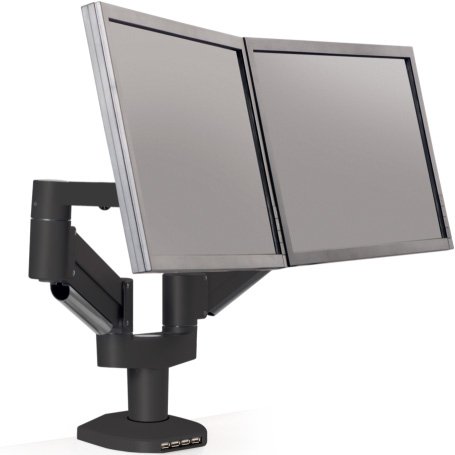

Mount two 7000 arms at one point on the desk. Includes Busby, an integrated USB hub for your desktop.
Now you can mount two of our best-selling 7000 monitor arms from one point on your desk. This dual monitor mount allows users to effortlessly reposition each monitor with just one hand. You will free up desk space, even as you work in greater ergonomic comfort.
Innovative 7000-Busby-8408 combines the 7000 dual monitor arm with our Busby USB hub. With Busby, you no longer have to crawl under your desk to reach your PC’s USB port. Busby places USB ports right at your fingertips, where they are integrated into your flat panel monitor mount. Busby provides convenient access to charge and power all of your USB-enabled devices without consuming additional desk space.
Please note this monitor mount was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded the tilter of 7000-Busby-8408.
Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with the Quick Release Tilter 8500 in this monitor mount, making monitor installation and removal faster, easier, and virtually effortless. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.
 8500 Quick Release Monitor Tilter |
 |
Please note that 8500 Quick-Release Tilter is not recommended for iPads, tablets, or touch-enabled displays used for drawing and other interactive applications. Frequent physical interaction with the screen can cause the monitor to wobble, which may reduce mounting stability over time.
Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.
8524 Top Down Mount
Technical Drawing
Technical Specifications
| Color | 104 - Vista Black, 124 - Silver and 248 - Flat White |
| Screen Size | Up to 24" |
| Height Adjustment | 16" (40.6 cm) |
| Extension Range | 24" (61 cm) |
| Rotation | 360 degrees at three joints |
| Monitor Tilt | 180 degrees |
| Monitor Pivot | Landscape / Portrait |
| Mount Configurations | Desk Edge, Thru-Desk, Grommet |
| VESA Compatibility | 75mm, 100mm adapters included |
| Warranty | 10 Years |
| Cable Management | Cables are clipped beneath arm |
| Monitor Weight |
|
Features
Dual monitor arm offers convenient access to charge and power all of your USB-enabled devices
Features four USB 2.0 ports
The monitor arm offers 24" of horizontal range and 16" of vertical range (8" up and down from horizontal)
Extremely flexible positioning of dual flat panel monitors
Independently move and adjust each arm
Mount the monitor arms to your desk edge, through a grommet hole, or bolt through desk
VESA-monitor compatible - 75mm, 100mm VESA adapters included
Product Options/Accessories
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model 7000-Busby-8408
- Manufacturer HAT Design Works (Innovative)
- Part Number 7000-Busby-8408
- Color 104 - Vista Black, 124 - Silver
- Rotation At three joints 360 degree
- Tilt 180 degree
- Pivot Landscape to portrait
- Mounting Pattern VESA 75mm, 100mm
- Monitor Weight 7000-500-8408-Busby: 2-13 lbs (0.9-5.9 kg); 7000-800-8408-Busby: 7.5-25 lbs (3.4-11.3 kg)
- Mounting Options Desk
- Monitor Arm Types 2 Monitors
- Number of Monitors 2 Monitors
- Height Adjustment 16
- Extension 24
- Mounting Options Desk Edge, Thru-Desk, Grommet
- Warranty 10 Years
- Monitor Size Up to 24
- Maximum Monitor Size 24
- Monitor Placement Side-by-Side
No reviews yet. Be the first to share your thoughts!
Warranty
Seller warrants that its products will be free from defects in material and workmanship when the title passes to the buyer. Seller will repair or replace, at its discretion, any defective product without charge (shipping charges excluded) for a period of 10 years (exception: 1 year for Busby, 5 years for Winston Workstation, Winston-E, Winston Desk and Freedom Desk, 3 years for Tablik and 1 year for Bild motorized column) after the original date of sale, unless the product damage resulted from normal wear and tear, buyer abuse, misuse or negligence or failure to follow instructions related to the products’s installation or intended use. Seller may require proof of purchase before performing any repairs or replacing any products during the warranty period. Except as specifically set forth above, seller makes no warranties, express or implied and specifically disclaims any warranty of merchantability or fitness for a particular purpose. Repair or replacement of the product ordered from seller shall be buyer’s exclusive remedy.
