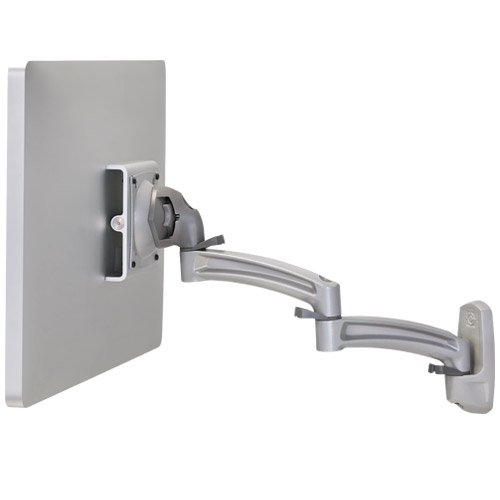

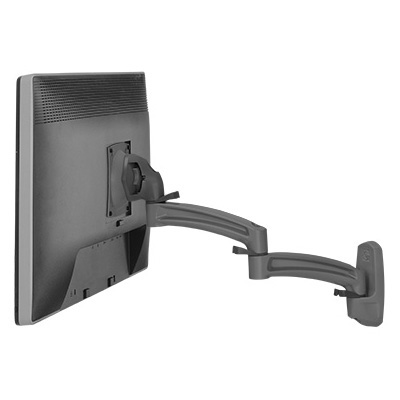

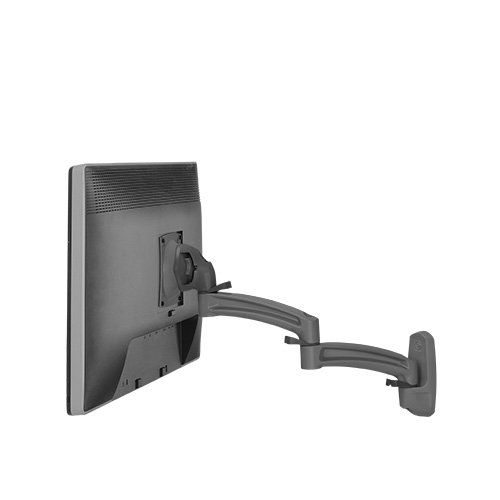

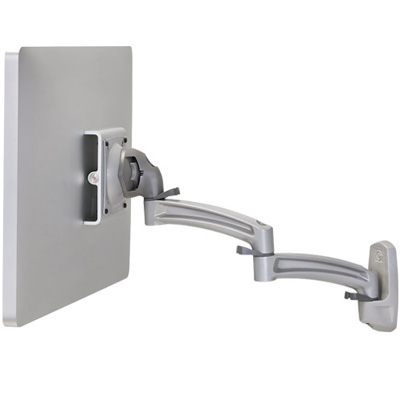

Chief Kontour Wall Mount Swing Arm, 1 Monitor - K2W120B or K2W120S

Product ID 17852
Chief Kontour Wall Mount Swing Arm, 1 Monitor - K2W120B or K2W120S
Black color
Chief Kontour Wall Mount Swing Arm, 1 Monitor - K2W120B or K2W120S
Black color


Chief K2W120B enhanced Kontour K2W Wall Mount Articulating Arms are great solutions for the office, healthcare facilities, or public spaces. The K2W mounts provide unlimited manual height adjustment on the Pole for optimal ergonomic positioning for any application.

Kontour monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work environment.

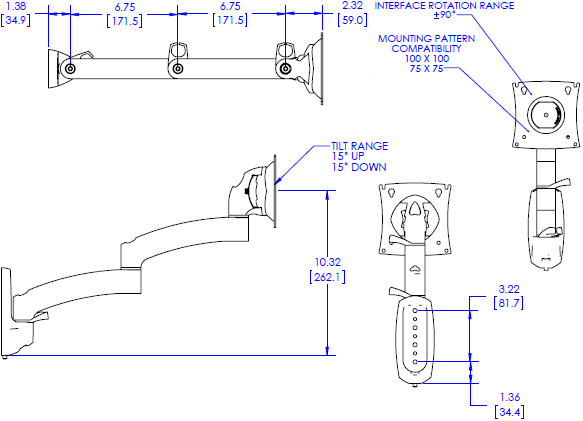

Technical Drawing

Technical Drawing for Chief Kontour Wall Mount Swing Arm, 1 Monitor - K2W120B or K2W120S


Color Black, Silver
Compatible With OFB Furniture Brackets Yes
Maximum Extension 17.2" (437 mm)
Minimum Depth 2.95" (75 mm)
Mounting Pattern Compatibility (Universal Versions) VESA 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 1
Shipping Weight 5.75 lbs (2.61 kg)
Tilt +/- 15°
Typical Screen Sizes 10 - 30" (254 - 762 mm) diagonals
Weight Capacity 40 lbs (18.1 kg)
Orientation Landscape, Portrait


  • Sleek, solidly-constructed forged aluminum arms in subtle semi-gloss silver & black finishes

  • Patented Centris Head provides +/- 15° of effortless tilt, for optimal viewing comfort whether sitting or standing

  • Wall Mounts easily install to any wall using the fast-installing Wall Plate

  • Slat-Wall Mounts easily connect to most Slat-Wall products using the included OFBLU universal slat wall interface bracket

  • Tool-free cable management clips provide a clean, professional look

  • With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

Model K2W120B, K2W120S
Manufacturer Chief Mounts
Part Number K2W120B, K2W120S
UPC 841872160689
Color Black, Silver
Maximum Extension 17.2" (437 mm)
Minimum Depth 2.95" (75 mm)
Mounting Pattern 75 x 75mm, 100 x 100mm VESA
Shipping Weight 5.75 lbs (2.61 kg)
Tilt +/- 15 degree
Monitor Size 10 - 30" (254 - 762 mm) diagonals
Weight Capacity Up to 40 lbs (18.1 kg)
Mounting Options Wall
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Orientation Landscape, Portrait

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
