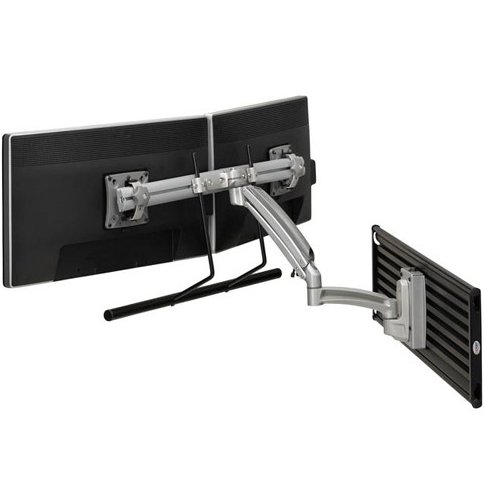

Chief Kontour Dynamic Slat-Wall Mount, Dual Monitor Array K1S22H

Product ID 17873


Chief K1S22H enhanced Kontour K1S Dynamic Height-Adjustable Slatwall Mounts are perfect solutions for the office, healthcare facilities, and public spaces.

Key enhancements have been made to Chief's patented Centris Extreme Tilt technology, for the ultimate in effortless fingertip monitor positioning. Kontour monitor mounts float your displays in the optimal ergonomic position to create a more productive and comfortable work environment.

Note: Slatwall is not included.

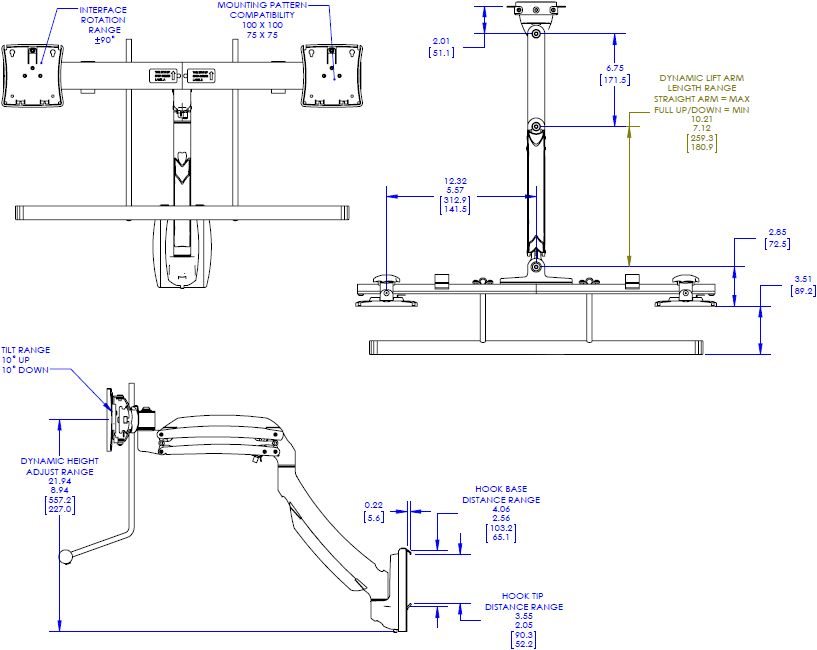

Technical Drawing

Technical Drawing for Chief Kontour Dynamic Slat-Wall Mount, Dual Monitor Array K1S22H


Certifications TAA Compliant
Color Black, Silver
Compatible With OFB Furniture Brackets Yes
Dynamic Height Adjustment 13" (330.2 mm)
Maximum Extension 21.44" (544.6 mm)
Minimum Depth 3.10" (78.7 mm)
Mounting Pattern Compatibility (Universal Versions) VESA 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 2
Shipping Weight 20.76 lbs (9.42 kg)
Tilt + 10°, - 10°
TV Width Range Up to 24.90" (632.5 mm)
Typical Screen Sizes 10 - 24" (254 - 609.6 mm) diagonals
Weight Capacity 2 - 9 lbs (0.9 - 4.1 kg)
Orientation Landscape, Portrait


  • New dual-monitor Array Bar with low-profile Monitor Tilt and Rotation adjustment

  • Sleek, solidly-constructed forged aluminum arms in enhanced silver & black finishes

  • Enhanced fingertip positioning of monitor(s) for optimal viewing comfort, whether sitting or standing

  • 13" of dynamic height adjustment using smooth motion gas-spring technology

  • Tool-free cable management covers for a clean, professional look

  • Wall Mounts easily install to any wall using fast-installing Wall Plate

  • With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

  • Most Kontour K1 products are TAA-compliant - see respective product pages for details

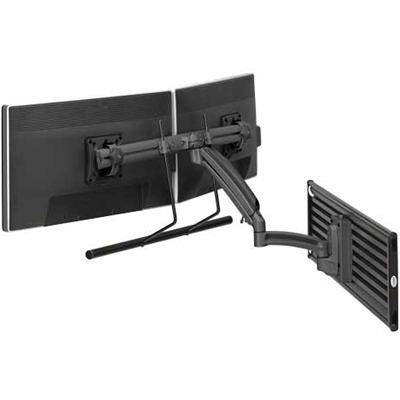

Model K1S22HB, K1S22HS
Manufacturer Chief Mounts
Part Number K1S22HB, K1S22HS
UPC 841872160375
Color Black, Silver
Dynamic Height Adjustment 13" (330.2 mm)
Maximum Extension 21.44" (544.6 mm)
Minimum Depth 3.10" (78.7 mm)
Mounting Pattern VESA 75 x 75mm, 100 x 100mm
Shipping Weight 20.76 lbs (9.42 kg)
Tilt +10 degree, -10 degree
TV Width Range Up to 24.90" (632.5 mm)
Monitor Size 10 - 24" (254 - 609.6 mm) diagonals
Weight Capacity 2 - 9 lbs (0.91 - 4.08 kg) per monitor
Mounting Options Slatwall
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
Orientation Landscape, Portrait
Maximum Monitor Size 24"
Monitor Placement Side-by-Side
