Chief Kontour 1x2 Vertical Focal Depth-Adjustable Wall Mounted Array - K4W120B

Product ID 17945

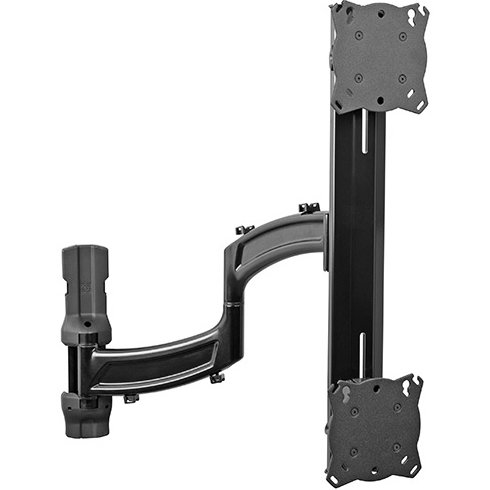

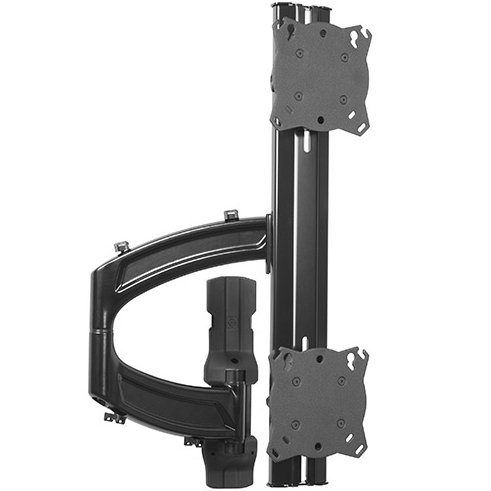

Chief K4W120B in color black is designed to hold two monitors vertically on the wall. The focal depth adjustable array provides the mechanism to easily position monitors for optimal viewing angle. It is an ideal solution for trading desks, call centers, security desks, IT, health care, control rooms and more.

Chief's K4-series was awarded the 2013 rAVe Best of InfoComm award for Best New AV Mount. Flexibility meets form and function with the Kontour K4 series of elegantly designed, Focal Depth Adjustable monitor array mounts from Chief.

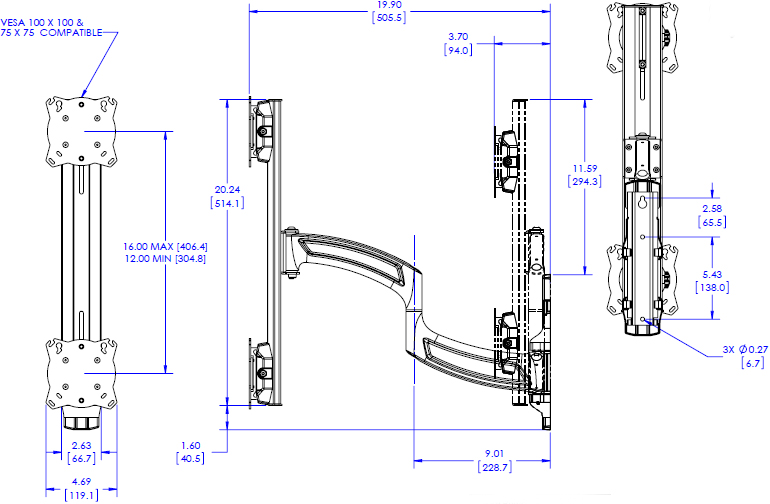

Technical Drawing

Technical Drawing for Chief K4W120B 1x2 Vertical Focal Depth-Adjustable Array, Wall Mounted


Certifications TAA Compliant
Color Black
Extension 16.2" (411.5 mm)
Minimum Depth 3.7" (94 mm)
Mounting Method Wall Mount
Mounting Pattern Compatibility (Universal Versions) VESA 75mm x 75mm & 100mm x 100mm
Notes Weight capacity is per monitor, Screen Center-to-Center Distance Range of 12" to 16" (304.8 mm to 406.4 mm)
Number of Monitors 2
Shipping Weight 17.3 lbs (7.85 kg)
Tilt +/- 10° vertical
Weight Capacity 15 lbs (6.8 kg)
Orientation Landscape, Portrait


  • Articulating Focal Depth Adjust

  • Great for multi-user settings where fast & easy adjustment is critical

  • Supports monitors up to 24" in both landscape

  • Swivel and Pan adjustment capability

  • Centris Vertical Tilt of +/- 10°

  • Wall or Desk Grommet mounting styles

  • Simple installation

  • Tool-free, integrated cable management

  • Streamlined, modern aesthetic

Product Options/Accessories

Model K4W120B
Manufacturer Chief Mounts
Part Number K4W120B
UPC 841872157917
Color Black
Extension 16.2" (411.5 mm)
Minimum Depth 3.7" (94 mm)
Mounting Pattern VESA 75mm x 75mm & 100mm x 100mm
Shipping Weight 17.3 lbs (7.85 kg)
Tilt Vertical +/- 10 degree
Weight Capacity 15 lbs (6.8 kg) per monitor
Mounting Options Wall
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
Orientation Landscape, Portrait
Maximum Monitor Size 24"
Monitor Placement Stacked One Over the Other

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
