Chief KONTOUR K4 3x1 Horizontal Wall Mounted Array - K4W310B

Product ID 17947
Chief KONTOUR K4 3x1 Horizontal Wall Mounted Array - K4W310B

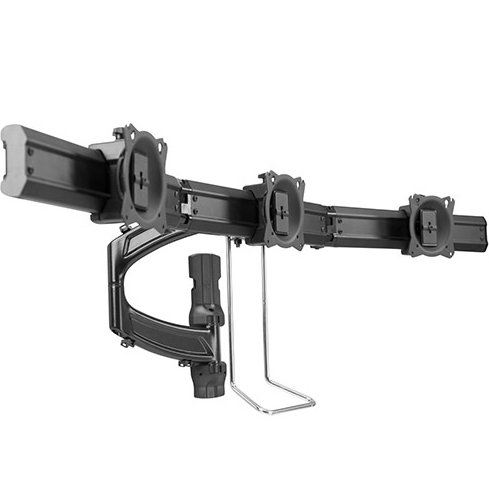

Side view
Chief KONTOUR K4 3x1 Horizontal Wall Mounted Array - K4W310B
Side view


Chief K4W310B provides an aesthetic & easily adjustable solution for monitor array stations where multiple users will want to re-position the bank of screens to their preferred viewing distance; such as trading desks, call centers, security desks, IT, health care, control rooms and more.

Flexibility meets form and function with the Kontour K4 series of elegantly designed, Focal Depth Adjustable monitor array mounts from Chief. Chief's K4-series was awarded the 2013 rAVe Best of InfoComm award for Best New AV Mount.

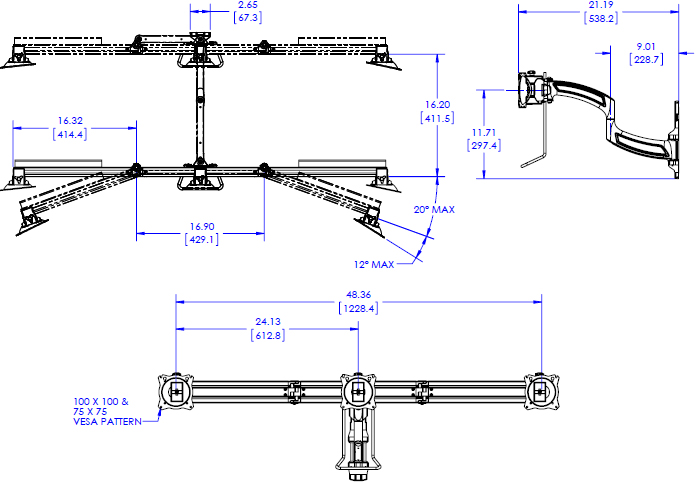

Technical Drawing

Technical Drawing for Chief K4W310B KONTOUR K4 3x1 Wall Mounted Array - Horizontal


Certifications TAA Compliant
Color Black
Equipment Width Range 48.36" (1228.4 mm) center-to-center max (when flat)
Extension 16.2" (411.5 mm)
Minimum Depth 4.25" (108 mm)
Mounting Method Wall Mount
Mounting Pattern Compatibility (Universal Versions) VESA 75mm x 75mm & 100mm x 100mm
Notes Weight capacity is per monitor, 24.12" (612.7 mm) max distance between monitor centers (when flat)
Number of Monitors 3
Rotation 20-degree max angle
Shipping Weight 21.3 lbs (9.66 kg)
Tilt +/- 12°
Weight Capacity 15 lbs (6.8 kg)
Orientation Landscape, Portrait


  • Articulating Focal Depth Adjust

  • Integrated handle for quick ergonomic adjustment to fit the user

  • Great for multi-user settings where fast & easy adjustment is critical

  • Supports monitors up to 24" in both landscape & portrait

  • Swivel and Pan adjustment capability

  • Centris Fingertip Tilt

  • Simple installation

  • Tool-free, integrated cable management

  • Streamlined, modern aesthetic

Product Options/Accessories

Model K4W310B
Manufacturer Chief Mounts
Part Number K4W310B
UPC 841872157931
Color Black
Equipment Width Range 48.36" (1228.4 mm) center-to-center max (when flat)
Extension 16.2" (411.5 mm)
Minimum Depth 4.25" (108 mm)
Mounting Pattern VESA 75mm x 75mm & 100mm x 100mm
Rotation Max angle 20 degree
Shipping Weight 21.3 lbs (9.66 kg)
Tilt +/- 12 degree
Weight Capacity 15 lbs (6.8 kg) per monitor
Mounting Options Wall
Number of Monitors 3 Monitors
Orientation Landscape, Portrait
