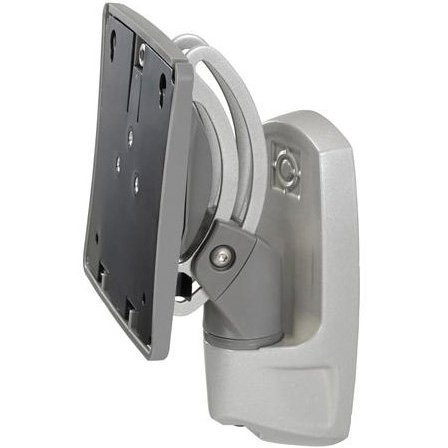

Chief Kontour Wall Mount with Extreme Tilt Pitch/Pivot - K0W100B or K0W100S

Product ID 17948
Chief Kontour Wall Mount with Extreme Tilt Pitch/Pivot - K0W100B or K0W100S

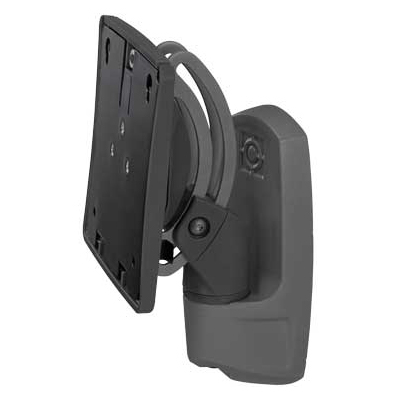

Black color
Chief Kontour Wall Mount with Extreme Tilt Pitch/Pivot - K0W100B or K0W100S
Black color


Chief K0W100 Kontour K0 Wall & Pole mounts, with Centris Extreme Tilt Pitch/Pivot, are great solutions for mounting a single monitor with exceptional range of motion. With an extremely low profile and sleek design, applications include public spaces, back-kitchen video monitoring, security monitors, or in the office.

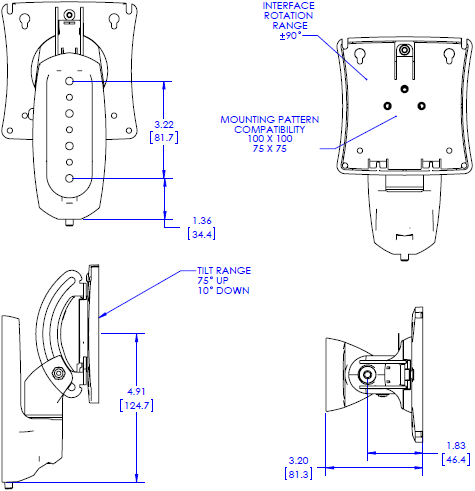

Technical Drawing

Technical Drawing for Chief Kontour Wall Mount with Extreme Tilt Pitch/Pivot - K0W100B or K0W100S


Color Black, Silver
Minimum Depth 3.20" (81 mm)
Mounting Pattern Compatibility (Universal Versions) VESA 75 x 75mm, 100 x 100mm
Number of Monitors 1
Post-Installation Leveling (Roll) Yes
Shipping Weight 5 lbs (2.27 kg)
Tilt +75°, -10°
Typical Screen Sizes 10 - 30" (254 - 762 mm) diagonals
Wall Stud Compatibility In Single Stud
Weight Capacity 40 lbs (18.1 kg)
Orientation Landscape, Portrait


  • Sleek, solidly-constructed mounts in subtle semi-gloss silver & black finishes

  • Enhanced fingertip positioning of monitor(s) for optimal viewing comfort

  • Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt

  • Adjustable tension settings on rotation & tilt allow free-moving or fully locked display positioning

  • Teardrop hole pattern makes mounting the screen quick and easy

  • Wall Mounts easily install to any wall using the fast-installing Wall Plate

  • Pole Mounts easily clamp to poles ranging from 1.50" - 1.90" diameter, including Chief's KTA pole accessories

  • OFB office furniture interface brackets available for most office systems

  • VESA 75 x 75 mm and 100 x 100 mm compatible

  • FSB interface brackets available for non-VESA compliant monitors

  • 40 lb (18.1 kg) weight capacity for use with larger monitors, touch-panels, and all-in-one computers

Model K0W100B, K0W100S
Manufacturer Chief Mounts
Part Number K0W100B, K0W100S
UPC 841872159959
Color Black, Silver
Minimum Depth 3.20" (81 mm)
Mounting Pattern VESA 75 x 75mm, 100 x 100mm
Shipping Weight 5 lbs (2.27 kg)
Tilt +75 degree, -10 degree
Monitor Size 10 - 30" (254 - 762 mm) diagonals
Weight Capacity Up to 40 lbs (18.1 kg)
Mounting Options Wall
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Orientation Landscape, Portrait
Wall Stud Single Stud
