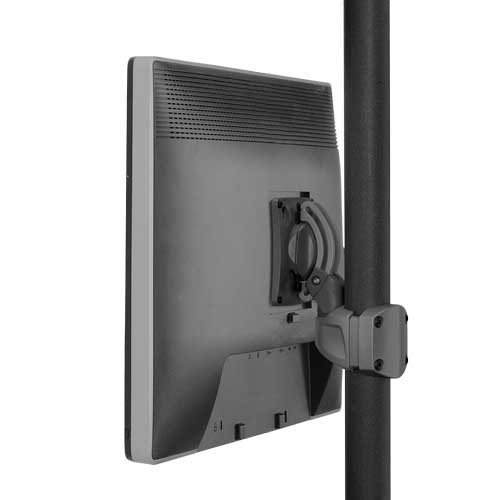

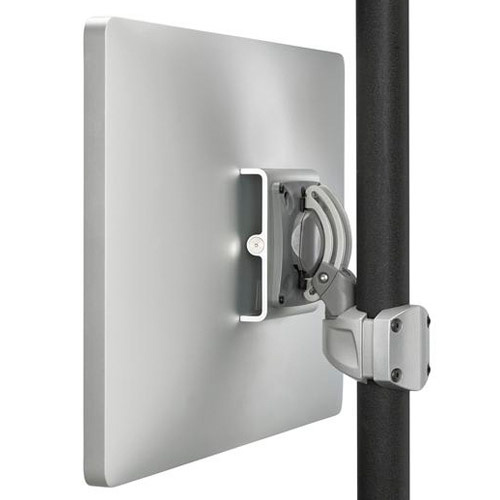

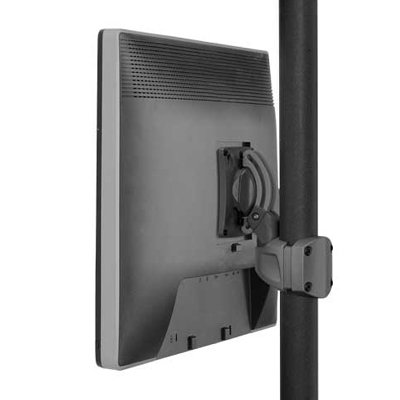

Chief Kontour Pole Mount with Extreme Tilt Pitch/Pivot - K0P100B or K0P100S

Product ID 17949


Chief K0P100 Kontour K0 Pole mounts, with Centris Extreme Tilt Pitch/Pivot, are great solutions for mounting a single monitor with exceptional range of motion. With an extremely low profile and sleek design, applications include public spaces, back-kitchen video monitoring, security monitors, or in the office.

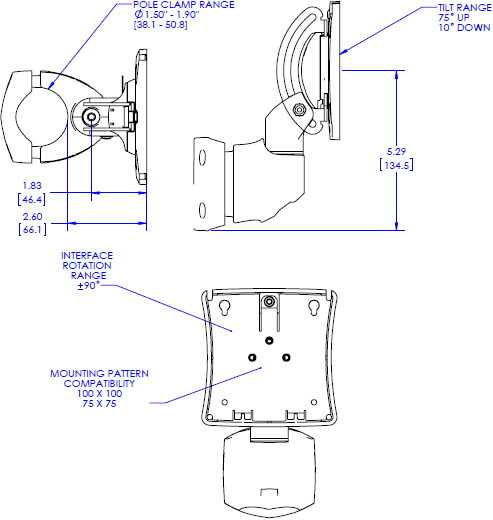

Technical Drawing

Technical Drawing for Chief K0P100B or K0P100S Kontour Pole Mount with Extreme Tilt Pitch/Pivot


Color Black, Silver
Minimum Depth 2.60" (66 mm)
Mounting Pattern Compatibility (Universal Versions) VESA 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 1
Pole Diameter Range 1.50 - 1.90 (38.1 - 48.3 mm)
Shipping Weight 5 lbs (2.27 kg)
Post-Installation Leveling Roll Yes
Tilt +75°, -10°
Typical Screen Sizes 10 - 30" (254 - 762 mm) diagonals
Weight Capacity Up to 40 lbs (18.1 kg)
Orientation Landscape, Portrait


  • Sleek, solidly-constructed mounts in subtle semi-gloss silver & black finishes

  • Enhanced fingertip positioning of monitor(s) for optimal viewing comfort

  • Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt

  • Adjustable tension settings on rotation & tilt allow for customized movement

  • Teardrop hole pattern makes mounting the screen quick and easy

  • VESA 75 x 75 mm and 100 x 100 mm compatible (interface brackets available for non-VESA compliant monitors)

  • Easily installs on pre-existing poles with 1.5 - 2" (38 - 51 mm) outer diameters

  • Ships fully assembled

Model K0P100B, K0P100S
Manufacturer Chief Mounts
Part Number K0P100B, K0P100S
UPC 841872159935
Color Black, Silver
Minimum Depth 2.60" (66 mm)
Mounting Pattern VESA 75 x 75mm, 100 x 100mm
Pole Diameter 1.50 - 1.90" (38.1 - 48.3 mm)
Shipping Weight 5 lbs (2.27 kg)
Tilt +75 degree, -10 degree
Monitor Size 10 - 30" (254 - 762 mm) diagonals
Weight Capacity Up to 40 lbs. (18.1 kg)
Mounting Options Pole
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Orientation Landscape, Portrait

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
