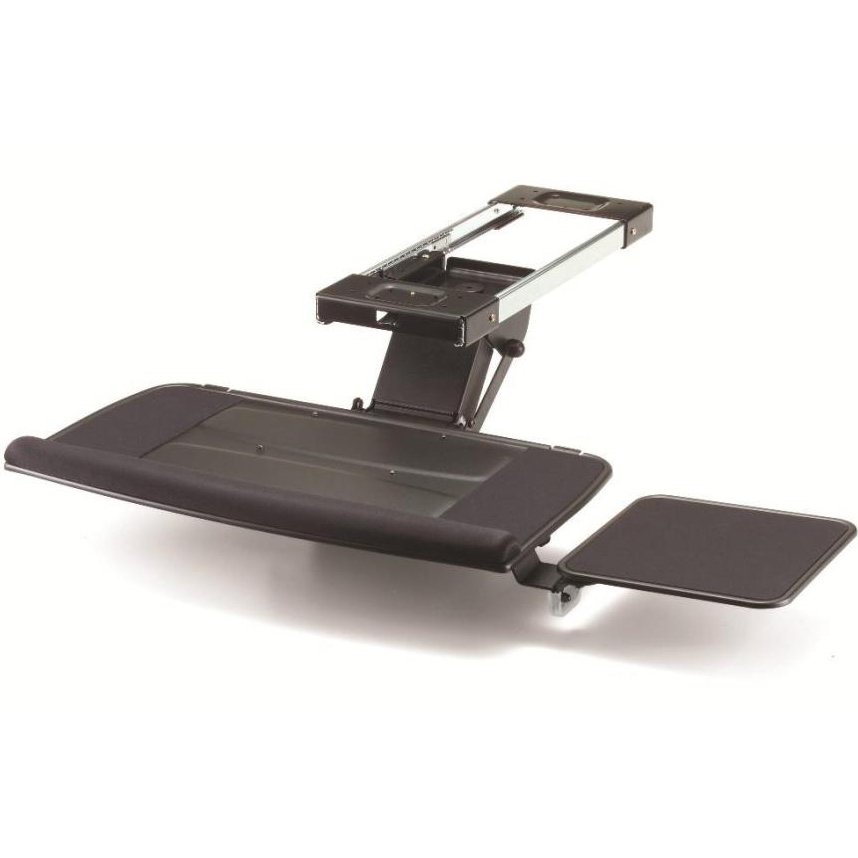

Cotytech KGM-5A-BB Fully Adjustable Keyboard Tray Ball Bearing

Product ID 17969
HIGHLIGHTS
Cotytech KGM-5A-BB Fully Adjustable Keyboard Tray Ball Bearing
Technical drawing
Cotytech KGM-5A-BB Fully Adjustable Keyboard Tray Ball Bearing
Technical drawing

Highlights

  • Composed of keyboard tray, mouse tray (right or left hand) and wrist rest.

  • Keyboard tray for all keyboard style; Steel frame coated black

  • Dimensions: 19.3" (L) x 11.2" (W)

  • Smooth movements with ball bearing mechanisms.

  • Control and use your keyboard tray unit in easy ways.

  • Arm adjust tilting angle: 10° up / 60° down

  • Mouse tray rotation: 360°

  • Height adjustment: 5.9" (150mm)

  • Friction track and spring assist mechanism

  • Loading area depth: 4.9"-7.5" (125-190mm) (distance from bottom surface of desk to this unit after being installed)

  • Keyboard tray will not fully retract under the desk

  • Materials: Steel & Foam

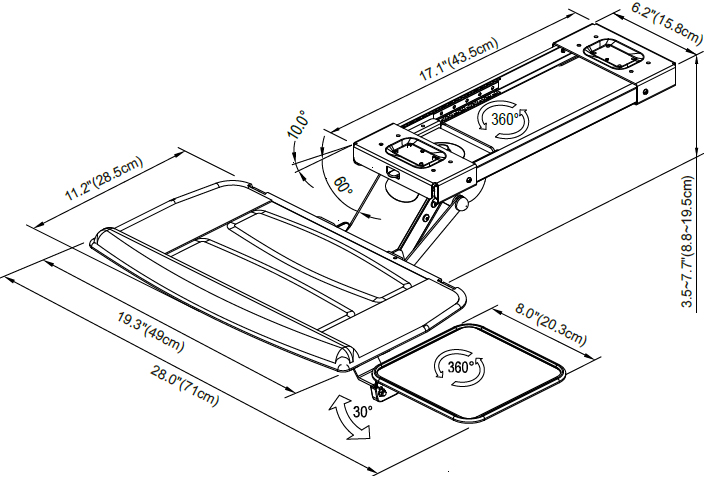

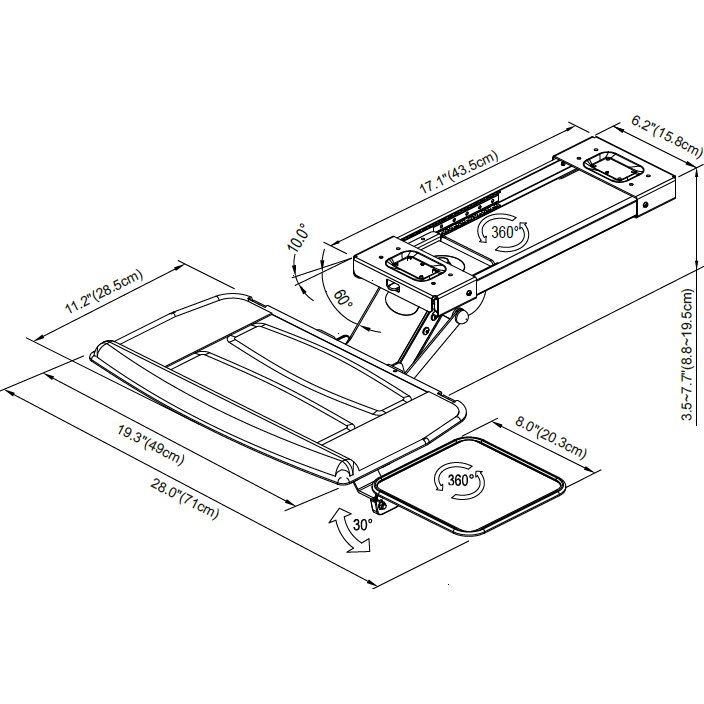

Technical Drawing

Technical drawing for Cotytech KGM-5A-BB Fully Adjustable Keyboard Tray Ball Bearing



Specifications

Dimensions

19.3" (L) x 11.2" (W)

Arm Adjust Tilting Angle

10° up / 60° down

Mouse Tray Rotation

360°

Height Adjustment

5.9" (150mm)

Loading Area Depth

4.9"-7.5" (125-190mm) (distance from bottom surface of desk to this unit after being installed)



Product Options/Accessories

Model KGM-5A-BB
Manufacturer Cotytech
Part Number KGM-5A-BB
Dimensions 19.3" (L) x 11.2" (W)
Tilt Up 10 degree/down 60 degree
Rotation 360 degree
Height Adjustment 5.9" (150mm)
Material Steel & Foam
Loading Area Depth 4.9"-7.5" (125-190mm) (distance from bottom surface of desk to this unit after being installed)
