Chief KONTOUR K4 Dual Monitor Grommet Mounted Array K4G210B

Product ID 17974
Chief KONTOUR K4 Dual Monitor Grommet Mounted Array K4G210B

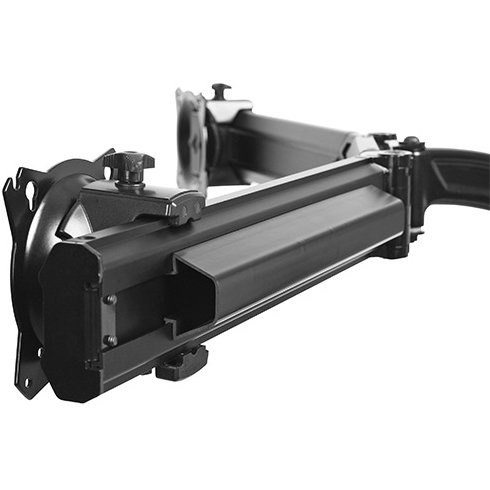

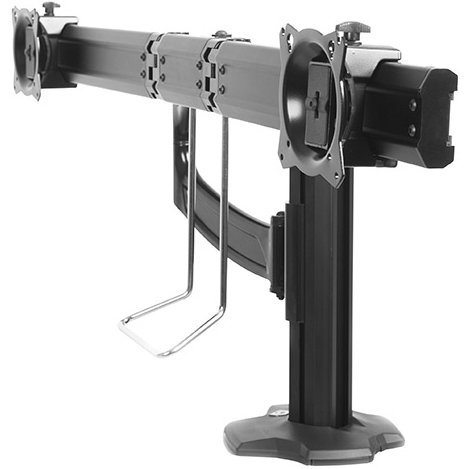

Back view

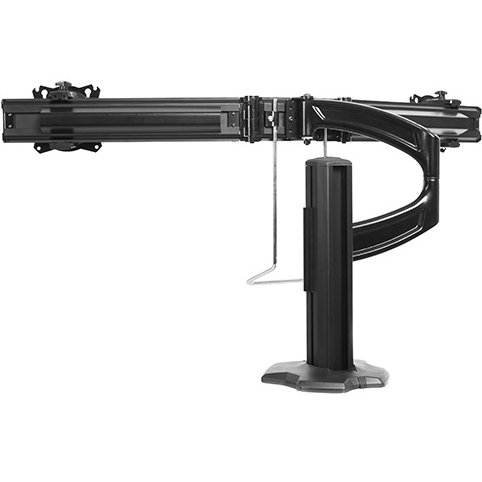

Side view

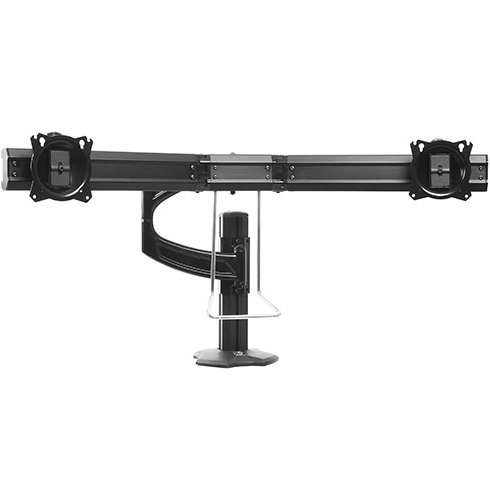

2x1 array
Chief KONTOUR K4 Dual Monitor Grommet Mounted Array K4G210B
Back view
Side view
2x1 array


Chief's K4-series was awarded the 2013 rAVe Best of InfoComm award for Best New AV Mount. Flexibility meets form and function with the Kontour K4 series of elegantly designed, Focal Depth Adjustable monitor array mounts from Chief.
Chief Kontour K4G210B provides an aesthetic & easily adjustable solution for monitor array stations where multiple users will want to re-position the bank of screens to their preferred viewing distance; such as trading desks, call centers, security desks, IT, health care, control rooms and more.

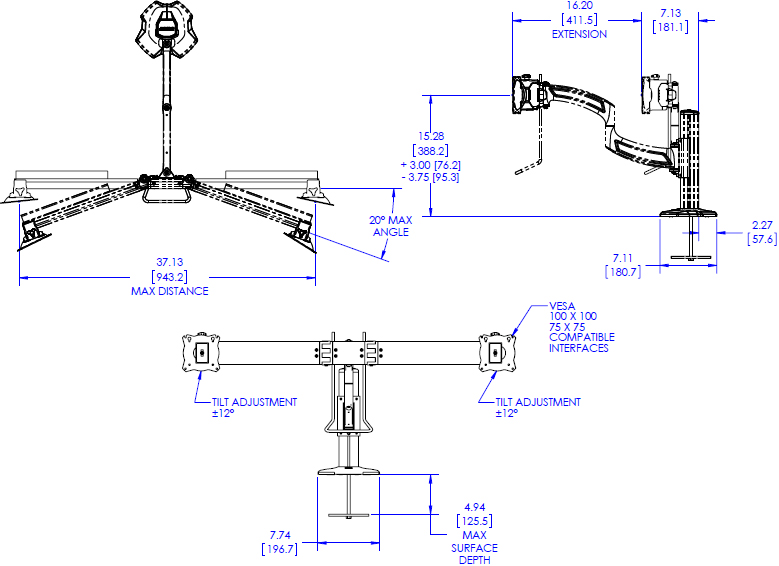

Technical Drawing

Technical Drawing for Chief K4G210B KONTOUR K4 Dual Monitor Grommet Mounted Array


Center of Display to Floor Table Range 11.5" to 18.2" (291 mm to 462 mm)
Certifications TAA Compliant
Color Black
Desktop Thickness Range Up to 4.9" (125 mm)
Extension 16.2" (411 mm)
Minimum Depth 9.4" (239 mm)
Mounting Method Grommet Hole
Mounting Pattern Compatibility (Universal Versions) VESA 75mm x 75mm & 100mm x 100mm
Notes Weight capacity is per monitor
Number of Monitors 2
Rotation 20-degree max angle
Screen Array Configuration 2 x 1
Shipping Weight 26.1 lbs (11.84 kg)
Tilt +/- 12 degrees
TV Width Range 37.1" (943 mm) max distance between monitor centers (when flat)
Typical Screen Sizes Up to 32" diagonal
Weight Capacity 15 lbs (6.8 kg)
Orientation Landscape, Portrait


  • Articulating Focal Depth Adjust

  • Integrated handle for quick ergonomic adjustment to fit the user

  • Great for multi-user settings where fast & easy adjustment is critical!

  • Supports monitors up to 32" in both landscape & portrait

  • Swivel and Pan adjustment capability

  • Centris Fingertip Tilt

  • Simple installation

  • Tool-free, integrated cable management

  • Streamlined, modern aesthetic

Model K4G210B
Manufacturer Chief Mounts
Part Number K4G210B
UPC 841872157757
Color Black
Center of Display to Floor/Table Range 11.5
Desktop Thickness Range Up to 4.9
Extension 16.2
Minimum Depth 9.4
Mounting Pattern VESA 75mm x 75mm & 100mm x 100mm
Rotation Max angle 20 degree
Shipping Weight 26.1 lbs (11.84 kg)
Tilt +/- 12 degree
TV Width Range 37.1
Monitor Size Up to 32
Weight Capacity 15 lbs (6.8 kg) per monitor
Mounting Options Desk
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
Orientation Landscape, Portrait
Maximum Monitor Size 32
Monitor Placement Side-by-Side
