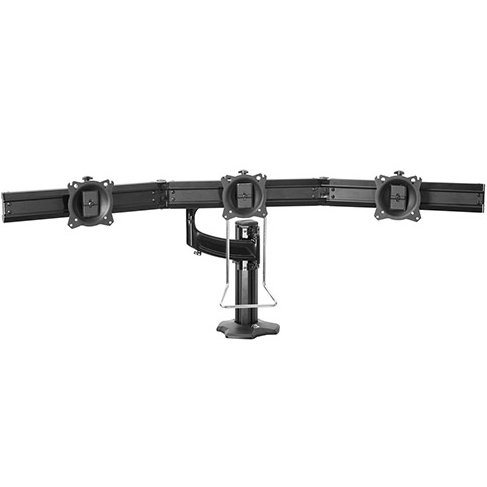

Chief KONTOUR K4 Depth-Adjustable Grommet Mounted Array K4G310B

Product ID 17976
Chief KONTOUR K4 Depth-Adjustable Grommet Mounted Array K4G310B
Chief KONTOUR K4 Depth-Adjustable Grommet Mounted Array K4G310B


  • Triple monitor grommet or 1/2" thru-hole mount
  • Ideal for trading desks, gaming, call centers, security desks and IT and Healthcare industry
  • Extension: 16.2"
  • Monitor size: 19" to 24" diagonal
  • Monitor width range:  maximum of 23"


Chief's K4-series was awarded the 2013 rAVe Best of InfoComm award for Best New AV Mount.

Flexibility meets form and function with the Kontour K4 Series of elegantly designed, Focal Depth Adjustable monitor array mounts from Chief. Chief K4G310B provides an aesthetic & easily adjustable solution for monitor array stations where multiple users will want to re-position the bank of screens to their preferred viewing distance; such as trading desks, call centers, security desks, IT, health care, control rooms and more.

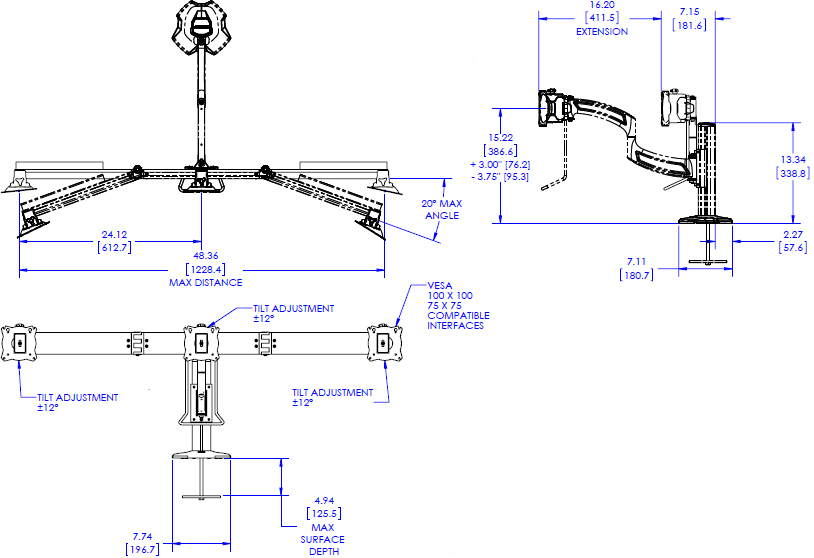

Technical Drawing

Technical Drawing for Chief KONTOUR K4 Depth-Adjustable Grommet Mounted Array K4G310B


Center of Display to Floor Table Range 11.47" to 18.22" (291.3 mm to 462.8 mm)
Certifications TAA Compliant
Color Black
Desktop Thickness Range 1" - 4.94" (25 - 125.5 mm)
Extension 16.2" (411.5 mm)
Minimum Depth 9.42" (239.3 mm)
Mounting Method Grommet and 1/2" Thru-Hole
Mounting Pattern Compatibility (Universal Versions) VESA 75mm x 75mm & 100mm x 100mm
Notes Weight capacity is per monitor
Number of Monitors 3
Rotation 20-degree max angle
Screen Array Configuration 3 x 1
Shipping Weight 27.7 lbs (12.56 kg)
Tilt +/- 12 degrees
TV Width Range Up to 23.0" (584 mm) max display width
Typical Screen Sizes 19" to 24" diagonal
Weight Capacity 15 lbs (6.8 kg)
Orientation Landscape, Portrait


  • Articulating Focal Depth Adjustable 3x1 Monitor Array

  • Integrated handles for quick ergonomic adjustment to fit the user

  • Great for multi-user settings where fast & easy adjustment is critical!

  • Supports monitors up to 24" in both landscape & portrait

  • Swivel and Pan adjustment capability

  • Centris Fingertip Tilt of every monitor

  • Grommet or 1/2" Thru-Hole mounted

  • Simple installation

  • Integrated cable management

  • Streamlined modern aesthetic

Model K4G310B
Manufacturer Chief Mounts
Part Number K4G310B
UPC 841872157764
Color Black
Center of Display to Floor/Table Range 11.47
Desktop Thickness Range 1
Extension 16.2
Minimum Depth 9.42
Mounting Options Grommet and 1/2
Mounting Pattern VESA 75mm x 75mm & 100mm x 100mm
Rotation Max angle 20 degree
Shipping Weight 27.7 lbs (12.56 kg)
Tilt +/- 12 degree
TV Width Range Up to 23.0
Monitor Size 19
Weight Capacity 15 lbs (6.8 kg) per monitor
Monitor Arm Types 3 Monitors
Number of Monitors 3 Monitors
Orientation Landscape, Portrait
