$4,032.00

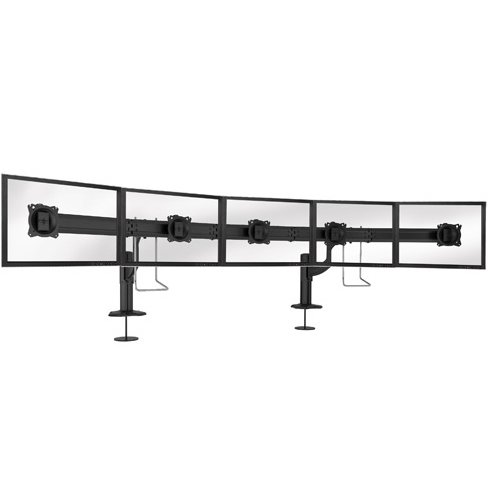

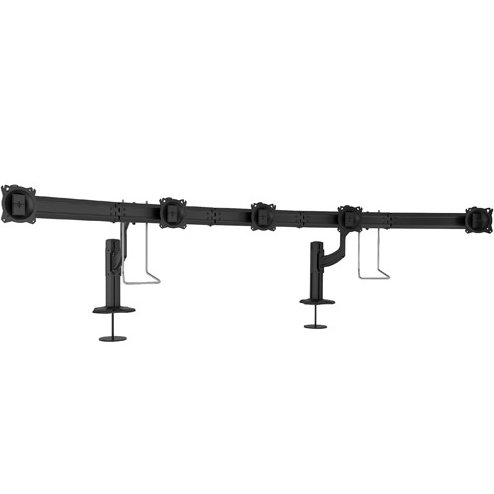

Chief KONTOUR K4 Depth-Adjustable Grommet Mounted Array K4G510B

Product ID 17977
Chief KONTOUR K4 Depth-Adjustable Grommet Mounted Array K4G510B
Chief KONTOUR K4 Depth-Adjustable Grommet Mounted Array K4G510B
Chief KONTOUR K4 Depth-Adjustable Grommet Mounted Array K4G510B
Chief KONTOUR K4 Depth-Adjustable Grommet Mounted Array K4G510B

Description

Chief's K4-series was awarded the 2013 rAVe Best of InfoComm award for Best New AV Mount.

Flexibility meets form and function with the Kontour K4 Series of elegantly designed, Focal Depth Adjustable monitor array mounts from Chief.
Chief K4G510B provides an aesthetic & easily adjustable solution for monitor array stations where multiple users will want to re-position the bank of screens to their preferred viewing distance; such as trading desks, call centers, security desks, IT, health care, control rooms and more.

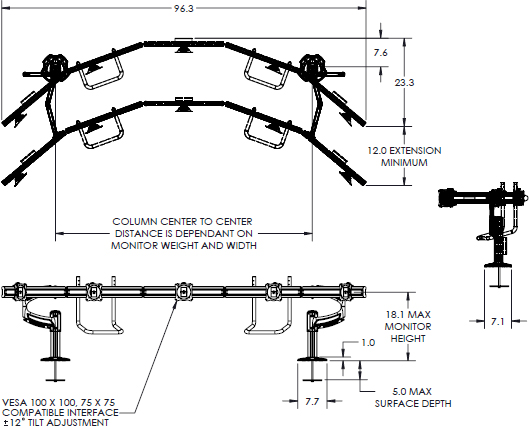

Technical Drawing

Technical Drawing for Chief KONTOUR K4 Depth-Adjustable Grommet Mounted Array K4G510B

Specifications

Center of Display to Floor Table Range 11.47" to 18.22" (291 mm to 463 mm)
Certifications TAA Compliant
Color Black
Desktop Thickness Range 1" - 4.94" (25 - 125.5 mm)
Maximum Extension 12.0" (305 mm) minimum
Minimum Depth 23.3" (592 mm)
Mounting Method Grommet and 1/2" Thru-Hole
Mounting Pattern Compatibility (Universal Versions) VESA 75mm x 75mm & 100mm x 100mm
Notes Weight capacity is per monitor
Number of Monitors 5
Screen Array Configuration 5 x 1
Shipping Weight 69 lbs (31.3 kg)
Tilt +/- 12 degrees
TV Width Range Up to 23.0" (584 mm) max display width
Typical Screen Sizes 19" to 24" diagonal
Weight Capacity 15 lbs (6.8 kg)
Orientation Landscape, Portrait

Features

  • Articulating Focal Depth Adjustable 5x1 Monitor Array

  • Integrated handles for quick ergonomic adjustment to fit the user

  • Great for multi-user settings where fast & easy adjustment is critical!

  • Supports monitors up to 24" in both landscape & portrait

  • Swivel and Pan adjustment capability

  • Centris Fingertip Tilt of every monitor

  • Grommet or 1/2" Thru-Hole mounted

  • Simple installation

  • Integrated cable management

  • Streamlined modern aesthetic

Model K4G510B
Manufacturer Chief Mounts
Part Number K4G510B
UPC 841872161716
Color Black
Center of Display to Floor/Table Range 11.47
Desktop Thickness Range 1
Maximum Extension 12.0
Minimum Depth 23.3
Mounting Options Grommet and 1/2
Mounting Pattern VESA 75mm x 75mm & 100mm x 100mm
Shipping Weight 69 lbs (31.3 kg)
Tilt +/- 12 degree
TV Width Range Up to 23.0
Monitor Size 19
Weight Capacity Up to 15 lbs. (6.8 kg) per monitor
Monitor Arm Types 5 Monitors
Number of Monitors 5 Monitors
Orientation Landscape, Portrait
