Chief FCAB3X1UP Large Ceiling Back-to-Back Portrait Accessory

Product ID 18017

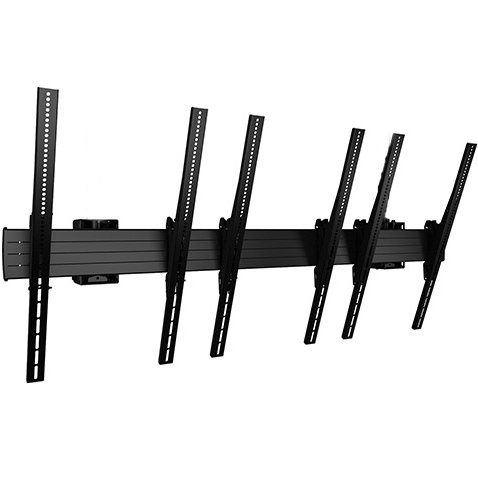

Chief FCAB3X1UP Large Ceiling Back-to-Back Portrait Accessory
Chief FCAB3X1UP Large Ceiling Back-to-Back Portrait Accessory


Chief's FCAB3X1UP FUSION ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. The FCAB3X1UP can be used to retrofit single sided 3 x 1 portrait ceiling configurations to be back-to-back solutions.

  • Screen array configuration: screens wide x screens high.

  • Confirm screen compatibility with MountFinder

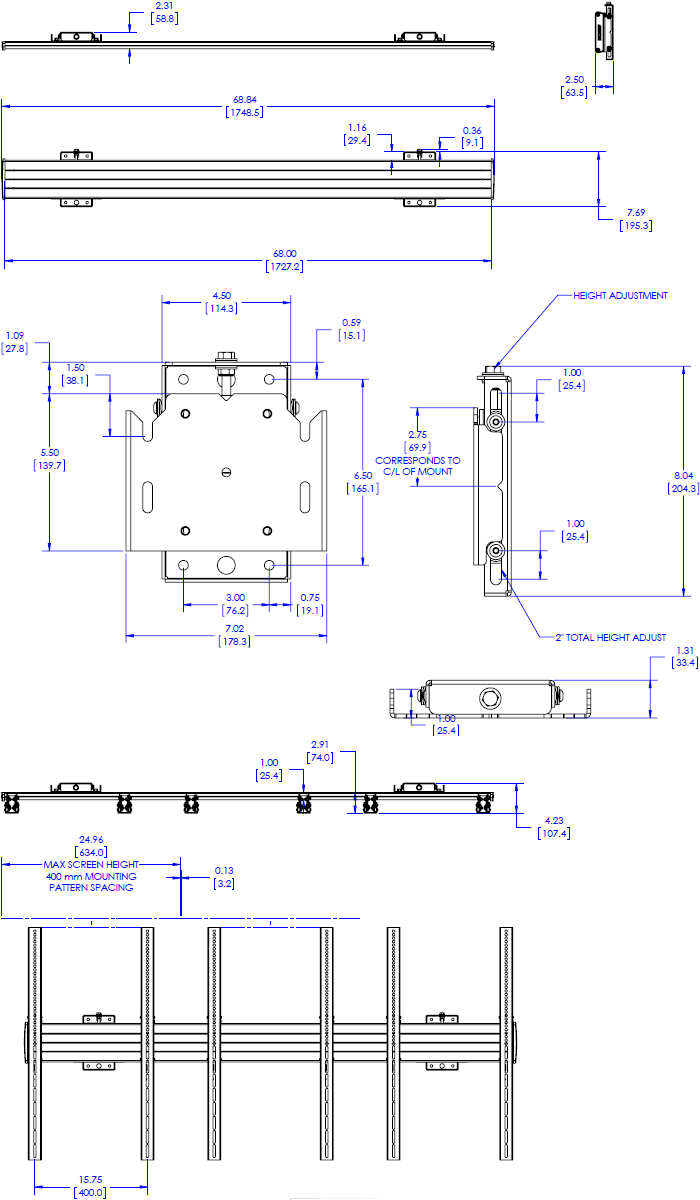

Technical Drawing

Technical Drawing for Chief FCAB3X1UP Large Ceiling Back-to-Back Portrait Accessory


Certifications UL Listed
Color Black
Mounting Pattern Compatibility (Universal Versions) Any width x 100 - 800 mm
Notes Weight capacity is per display
Number of Monitors 6
Screen Array Configuration 3 x 1
Shipping Weight 47 lbs (21.32 kg)
Solution Type Universal
Tilt + 5°, - 20°
Typical Screen Sizes 40 - 55" (up to 65" with FCAX extension brackets)
Weight Capacity 125 lbs (56.7 kg)
Orientation Portrait


  • Transform an LCM3X1UP into an LCB3X1UP

  • Single horizontal extrusion keeps screens aligned

  • Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees

  • Tool-free screen engagement

  • Security: Add a pad lock to secure screen to mount

  • Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65"

Manufacturer Chief Mounts
Part Number FCAB3X1UP
UPC 841872158945
Color Black
Mounting Pattern Any width x 100 - 800 mm
Shipping Weight 47 lbs (21.32 kg)
Tilt + 5 degree, - 20 degree
Monitor Size 40 - 55" (up to 65" with FCAX extension brackets)
Weight Capacity 125 lbs (56.7 kg)
Orientation Portrait

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
