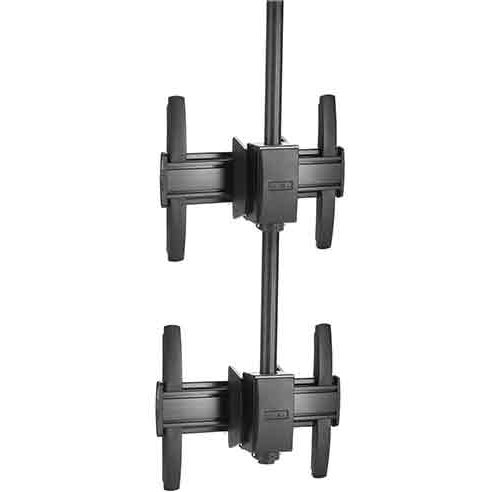

Chief MCM1X2U FUSION Medium Ceiling Mounted 1 x 2 Stacker

Product ID 18023
Chief MCM1X2U FUSION Medium Ceiling Mounted 1 x 2 Stacker
Chief MCM1X2U FUSION Medium Ceiling Mounted 1 x 2 Stacker


Chief's MCM1X2U FUSION ceiling mounted stacking solutions make it possible to install multiple displays vertically. Great for digital signage installations. It provides aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

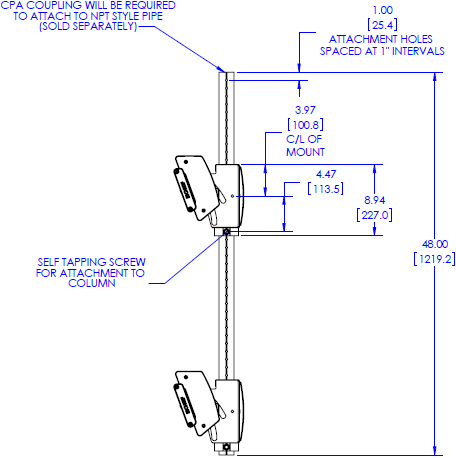

Technical Drawing

Technical Drawing for Chief MCM1X2U FUSION Medium Ceiling Mounted 1 x 2 Stacker


Adjustments (Roll) +/- 3°
Color Black
Mounting Pattern Compatibility (Universal Versions) 200mm x 100mm - 460 x 400mm
Notes Weight capacity is per display
Number of Monitors 2
Overall Dimensions (H x W x D) 16.5" x 20.8" x 6.4" (419 mm x 528 mm x 163 mm)
Screen Array Configuration 1 x 2
Shipping Weight 44 lbs (19.96 kg)
Solution Type Universal
Weight Capacity 100 lbs (45.4 kg) per screen
Orientation Landscape, Portrait


  • Bundled solution containing (2) flat panel ceiling mounts and (1) CPA048P 4ft pre-drilled column

  • For connecting to longer drop length 1.5" NPT extension columns you must order CPA264 separately

  • For connecting to longer drop length pin connection columns you must order CPA263 separately

Model MCM1X2U
Manufacturer Chief Mounts
Part Number MCM1X2U
UPC 841872158860
Color Black
Roll +/- 3°
Mounting Pattern 200mm x 100mm - 460 x 400mm
Number of Monitors 2 Monitors
Overall Dimensions 16.5" x 20.8" x 6.4" (419 mm x 528 mm x 163 mm)
Shipping Weight 44 lbs (19.96 kg)
Weight Capacity 100 lbs (45.4 kg)
Orientation Landscape, Portrait

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
