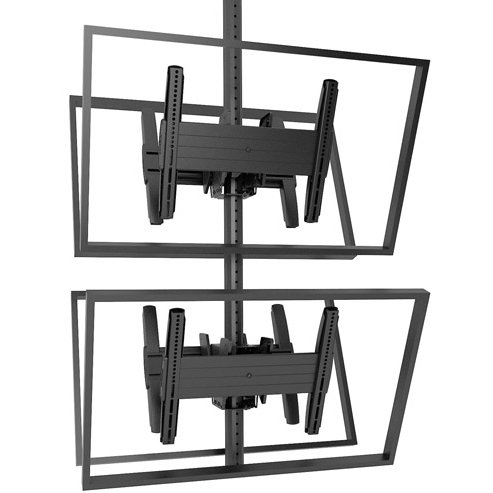

Chief MCB1X2U Fusion Medium Back-to-Back Stacked Ceiling Mount

Product ID 18025
Chief MCB1X2U Fusion Medium Back-to-Back Stacked Ceiling Mount
Chief MCB1X2U Fusion Medium Back-to-Back Stacked Ceiling Mount


Chief's MCB1X2U FUSION ceiling mounted solutions make it possible to install multiple displays vertically. Great for digital signage solutions.

  • Bundled solution containing (2) flat panel ceiling mounts and (1) CPA048P 4ft pre-drilled column

  • For connecting to longer drop length 1.5" NPT extension columns you must order CPA264 separately

  • For connecting to longer drop length pin connection columns you must order CPA263 separately

Technical Drawing

Technical Drawing for Chief MCB1X2U Fusion Medium Back-to-Back Stacked Ceiling Mount


Color Black
Notes Weight capacity is per display
Number of Monitors 4
Overall Dimensions (H x W x D) 16.5 x 20.8 x 10.2" (420 x 525 x 255 mm)
Screen Array Configuration 1 x 2
Shipping Weight 71 lbs (32.21 kg)
Solution Type Universal
Tilt + 5°, - 20°
Typical Screen Sizes 26 - 50"
Weight Capacity 100 lbs (45.4 kg) per screen
Orientation Landscape, Portrait


  • Centris Technology to provide continuous range of fingertip tilt from +5 to -20 degrees

  • Four set locking points at 0, 5, 10, and 15 degrees eliminate guess work when adjusting multiple screens

  • Simple on/off column connection for ease of installation and service

  • Tool-free screen engagement to secure displays with optional padlock security

Model MCB1X2U
Manufacturer Chief Mounts
Part Number MCB1X2U
UPC 841872159034
Color Black
Overall Dimensions 16.5 x 20.8 x 10.2" (420 x 525 x 255 mm)
Shipping Weight 71 lbs (32.21 kg)
Tilt +5 degree, -20 degree
Monitor Size 26 - 50"
Weight Capacity 100 lbs (45.4 kg) per screen
Number of Monitors 4 Monitors
Orientation Landscape, Portrait

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
