Innovative BILD-2/2 Bild 2 Over 2 Monitor Mount

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Product ID 18062
HIGHLIGHTS

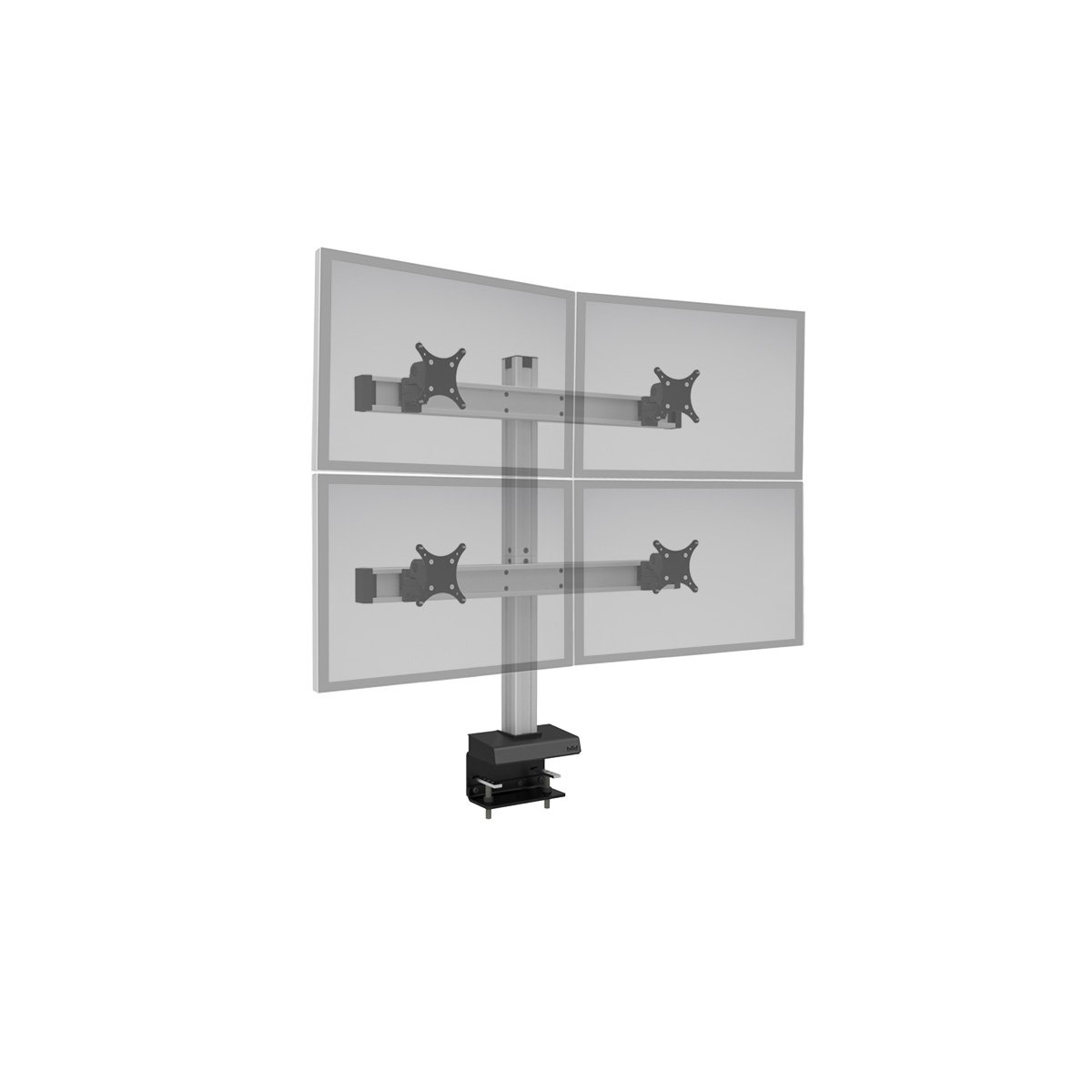

Innovative BILD-2/2 Bild 2 Over 2 Monitor Mount
 	Innovative BILD features
Black Finish BILD-2/2-CM-104

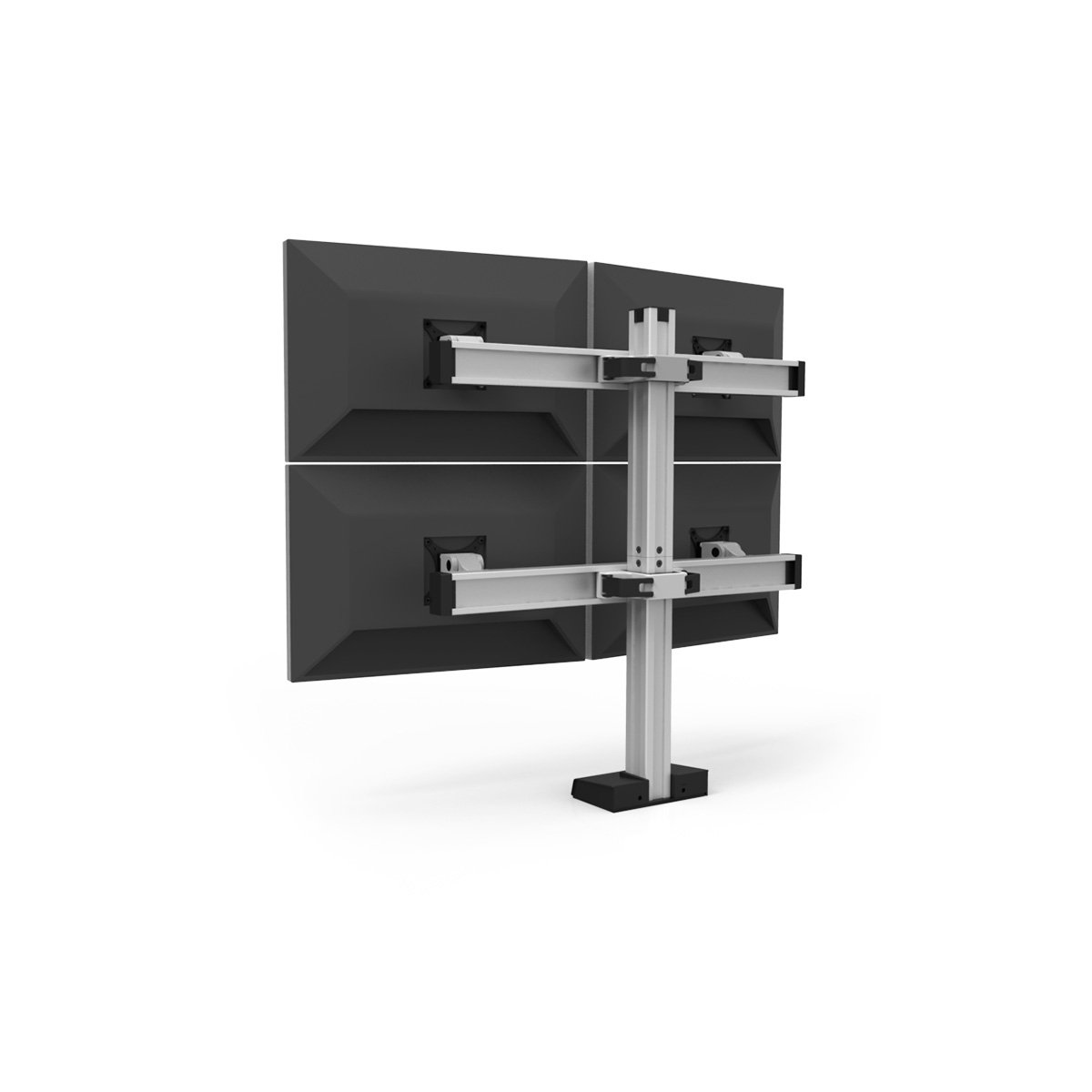

Silver Finish BILD-2/2-CM-124 Back View
Silver Finish BILD-2/2-CM-124

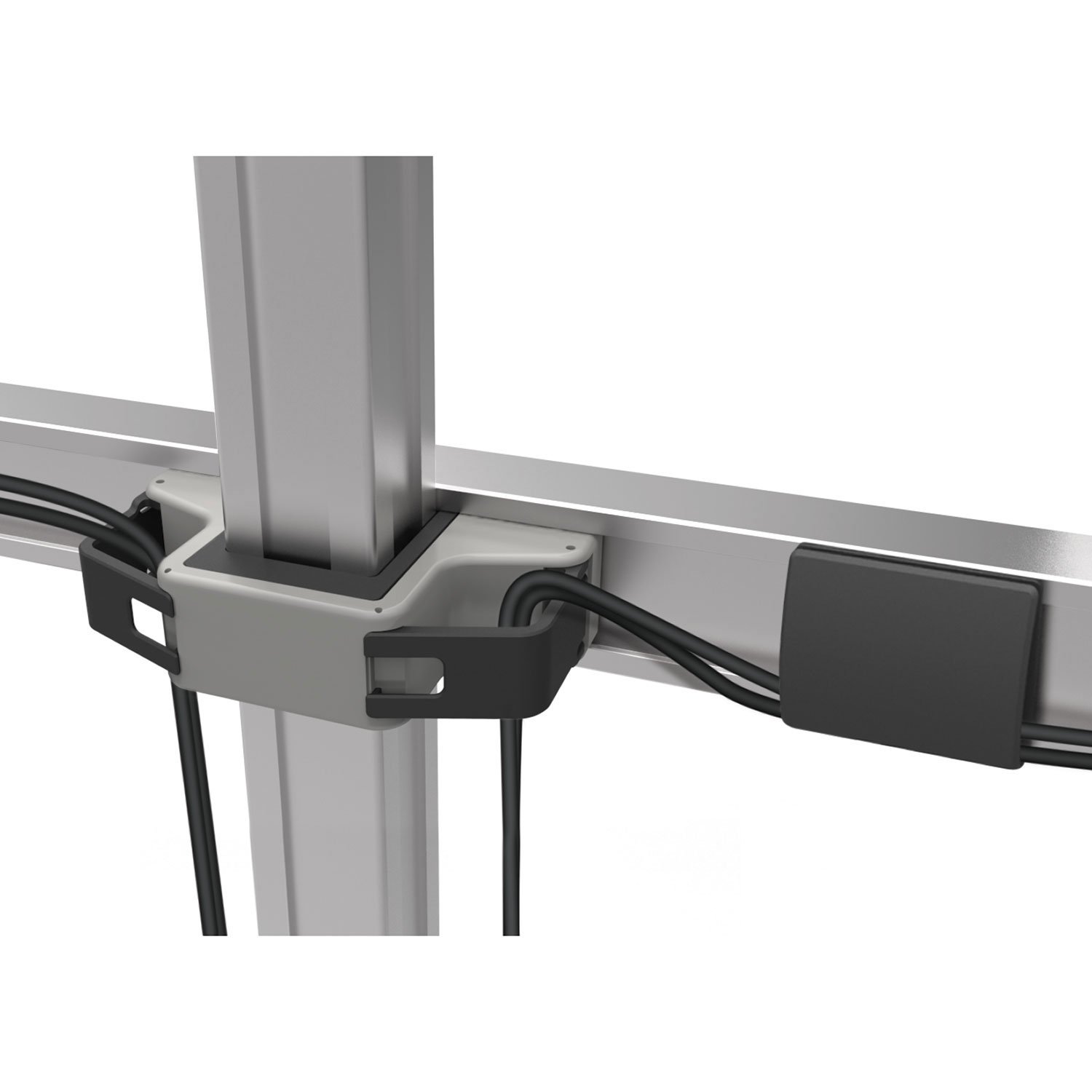

BILD Cable Management

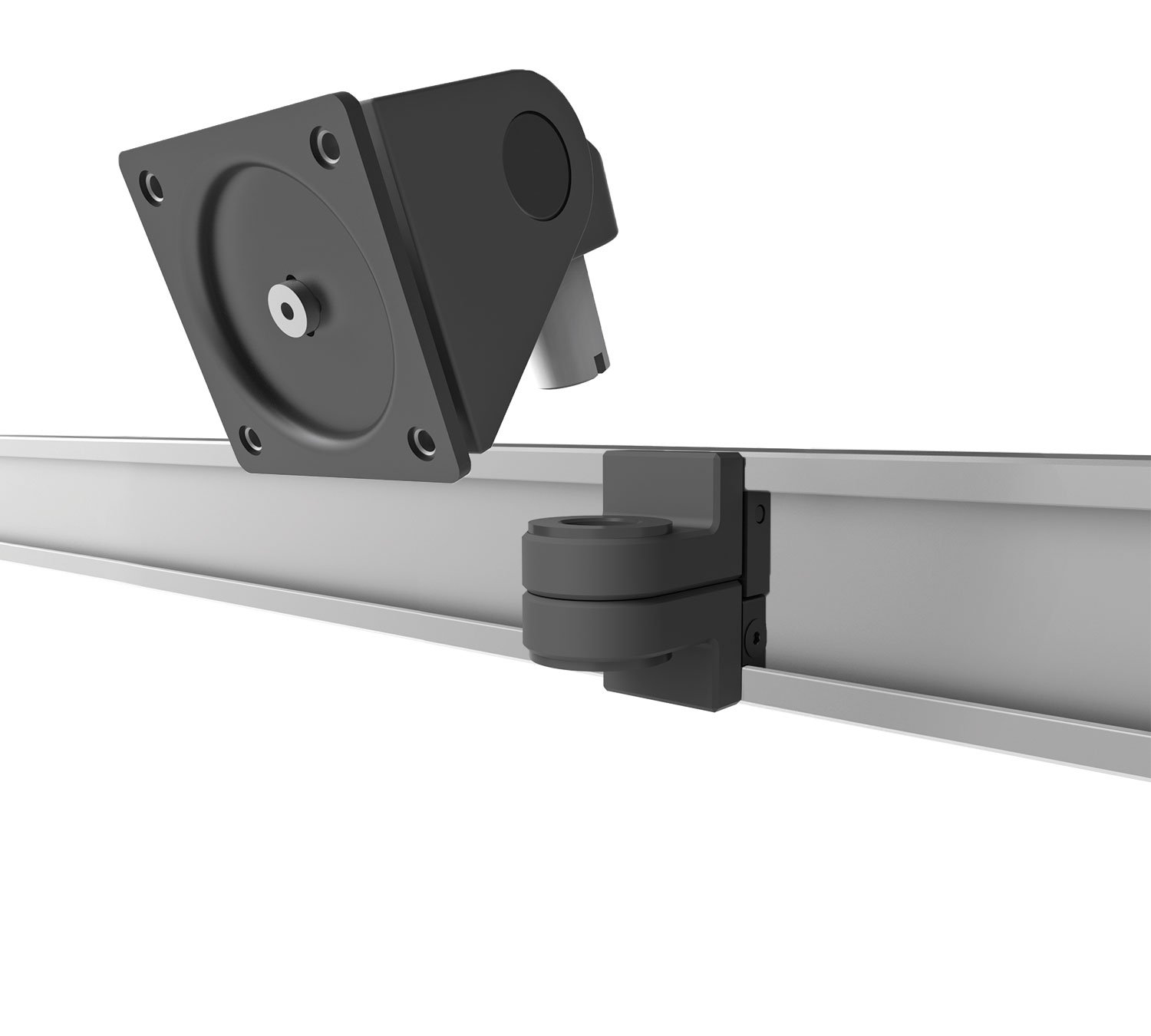

BILD Mount Cup Assembly
Innovative BILD-2/2 Bild 2 Over 2 Monitor Mount
 	Innovative BILD features
Black Finish BILD-2/2-CM-104
Silver Finish BILD-2/2-CM-124 Back View
Silver Finish BILD-2/2-CM-124
BILD Cable Management
BILD Mount Cup Assembly

Highlights

  • Supports monitors weighing up to 30 lbs each
  • Spring tilter is recommended for heavier monitors to achieve smoother adjustment for all monitors
  • Designed and Assembled in the USA

Description

Innovative BILD-2/2 Bild 2 over 2 quad monitor mount suspends four monitors above your work surface in two rows. Monitors can be positioned flat or on an angle and tilted up to 200 degrees. This highly adjustable quad monitor setup enables easy installation and replacement of monitors. Configure your Bild - Quickly and easily go from 2 to 16 plus monitors - all without wasting parts. Our new Bild multi-monitor mount is an easily adjustable monitor mount solution offering an endless number of configurations for installing multiple monitors.

Bild quad monitor stand mounts four monitors in two rows.



Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to the desired position. The BILD-2/2 is available with the standard tilter 8336-175 as the default, which works fine with compatible monitors weighing less than 30 lbs. However you have the option to replace the four standard 8336-175 tilters with the 8377-175 spring assisted tilters. Now as you can see in the image below both look very similar.

Innovative 8377-175 Spring Assisted Tilter Head
8377-175 Spring Assisted Tilter
Innovative 8336-175 Standard Monitor Tilter Head
8336-175 Standard Monitor Tilter


However 8377-175 differs from 8336-175 because of the presence of a spring as you can see in the image below. Technically the 8377-175 has a higher weight capacity (2-55 lbs) than the 8336-175 (2-45 lbs), but the springs in 8377-175 allow for a smoother monitor movement. Less friction force is required to hold the monitor load because of the support from springs and less friction leads to a seamless movement.


Front View of Innovative 8336-175 and 8377-175 TilterBack View of Innovative 8336-175 and 8377-175 Tilter


Irrespective of your tilter choice, you can add the 8473 height adjust adapter to adjust each monitor by 1.5 inches. The 8473 adapter gets attached between the tilter and the VESA adapter as shown in the image below.



Fine Tune Height Adjust Tilter





Technical Drawing

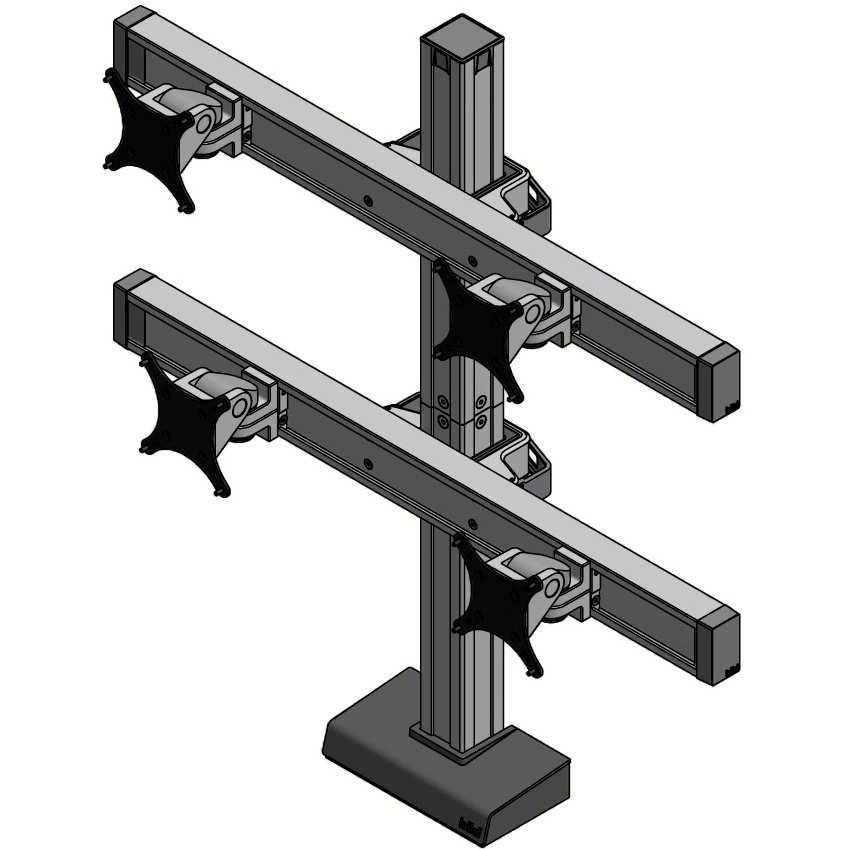

Technical Drawing for Innovative BILD-2/2 Bild 2 Over 2 Monitor Mount



Specifications

Color 104 - Vista Black and 124 - Silver
Screen Size Up to 24"
Monitor Pivot Landscape / Portrait
Monitor Tilt 200 degrees
Mount Configurations Desk Edge, Thru Mount (specify when ordering)
VESA Compatibility 75mm and 100mm adapter included
Warranty 10 years
Monitor Weight Up to 30 lbs (13.6 kg) per monitor

Features

  • The Bild 2 over 2 quad monitor mount offers a robust, solid construction with a clean design aesthetic

  • With the Bild 2 over 2 quad monitor mount, there’s no need to slide monitors to remove and replace them. Simply attach, adjust, and remove all at the face of the beam

  • This multi-monitor stand comes with adjustment tools that store in the beam end cap. Just loosen and tighten pivot points to the desired rigidity

  • Keep unslightly cables hidden with the Bild 2 over 2 monitor mount, which features cable clips in the column for keeping cables organized and out of the way

  • Bild 2 over 2 quad monitor mount has several mounting options available: desk clamp and thru-desk

  • The Bild 2 over 2 quad monitor stand is comprised of 99% recyclable content

  • Like all Bild multi-monitor mounts, Bild 2 over 2 is assembled in the USA

  • VESA-monitor compatible - 100mm VESA adapter included

Features of Innovative BILD

Model BILD-2/2
Manufacturer Innovative LCD Arms
Part Number BILD-2/2
Color 104 - Vista Black and 124 - Silver
Tilt Up to 200 degree
Monitor Weight Up to 30 lbs (13.6 kg) per monitor
Mounting Options Desk
Number of Monitors 4 Monitors
Monitor Size Up to 24
Pivot Landscape to portrait
Mounting Pattern VESA 75 mm, 100mm
Warranty 10 Years
