Innovative Winston Single Monitor Sit-Stand Workstation

For optimal performance, select the model that will support the total weight of your monitor and all items that will be placed on the Winston work surface. This will include your keyboard and mouse. The typical weight of keyboard and mouse is between 2-4 lbs. Please note, the monitor and the worksurface move in tandem, and not independent of each other.

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.

Product ID 18088
Innovative Winston Single Monitor Sit-Stand Workstation

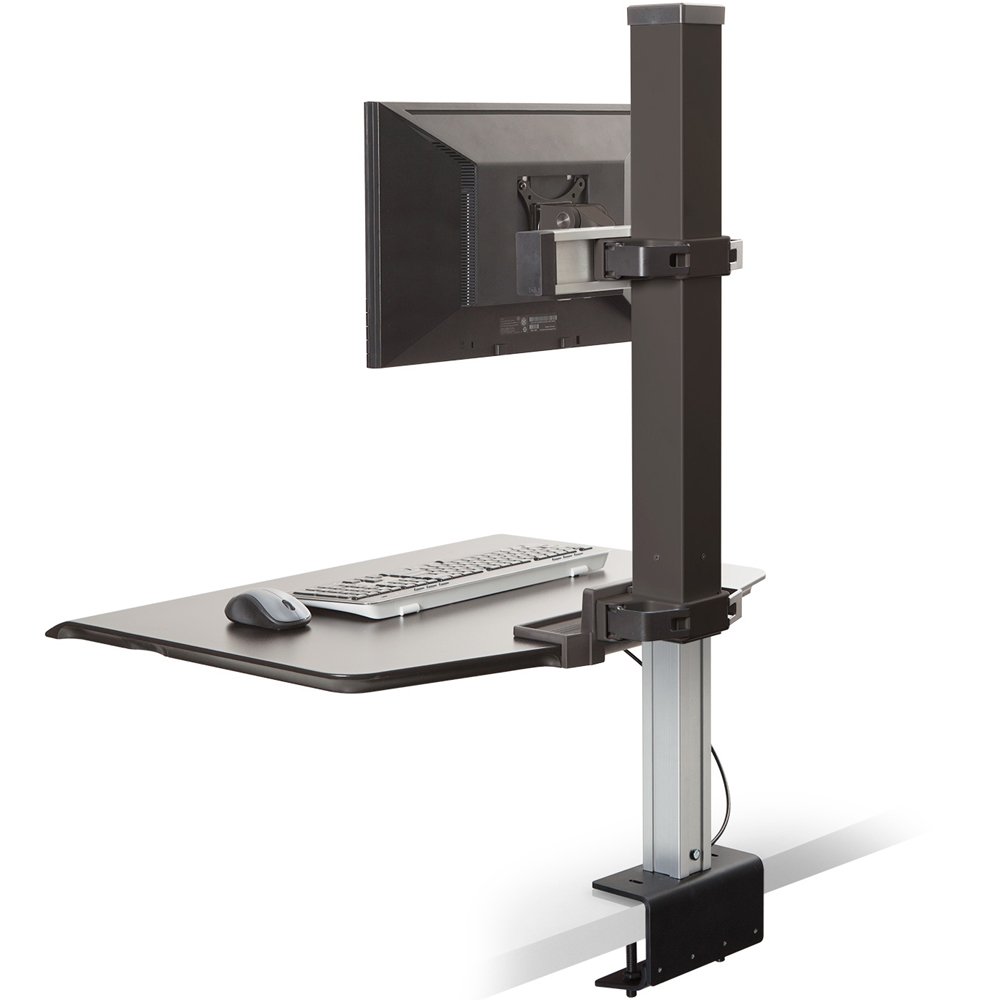

Dual Clamp
Cable management
Back view
Winston Workstation Worksurface

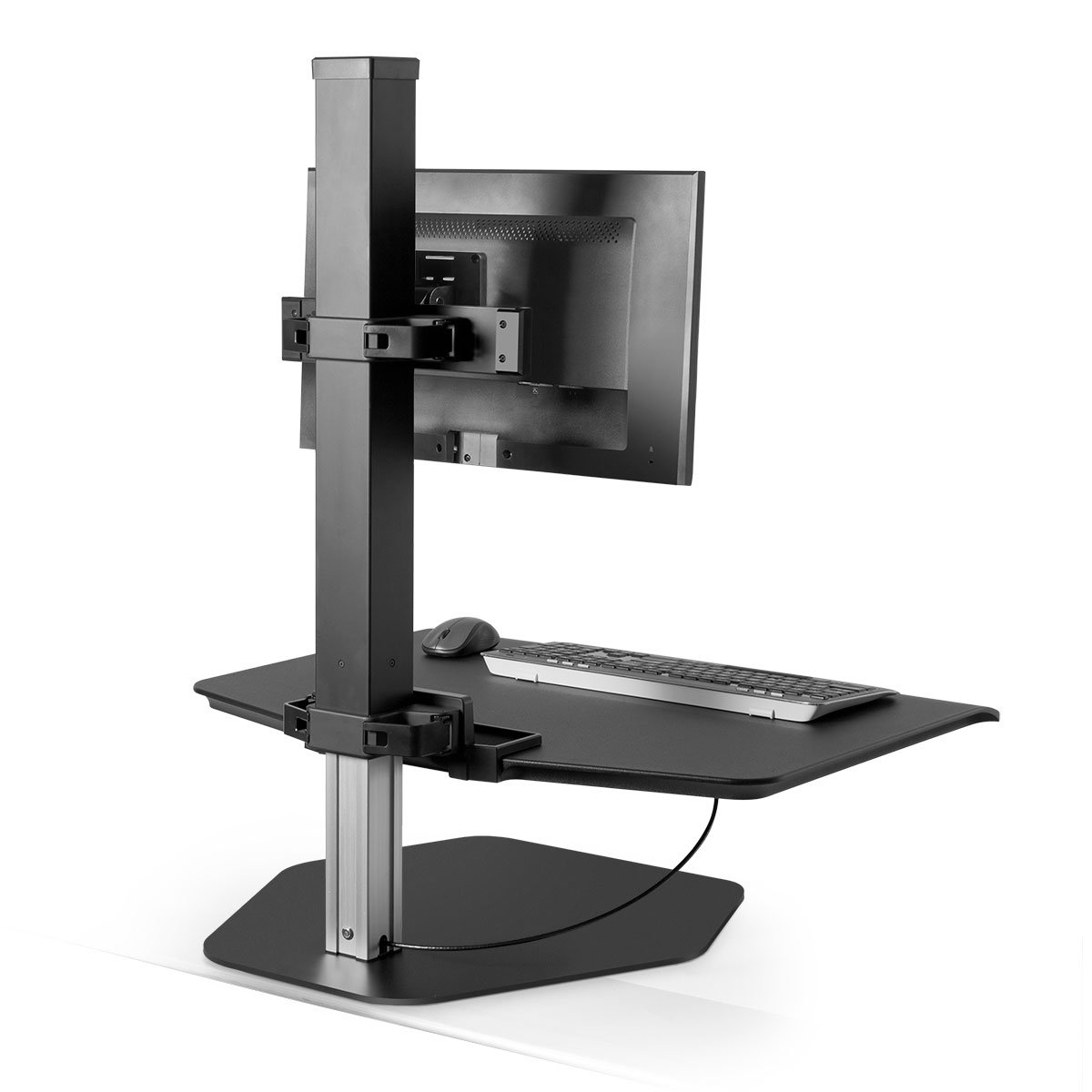

Winston Single Freestanding Sit-Stand Workstation in Vista Black

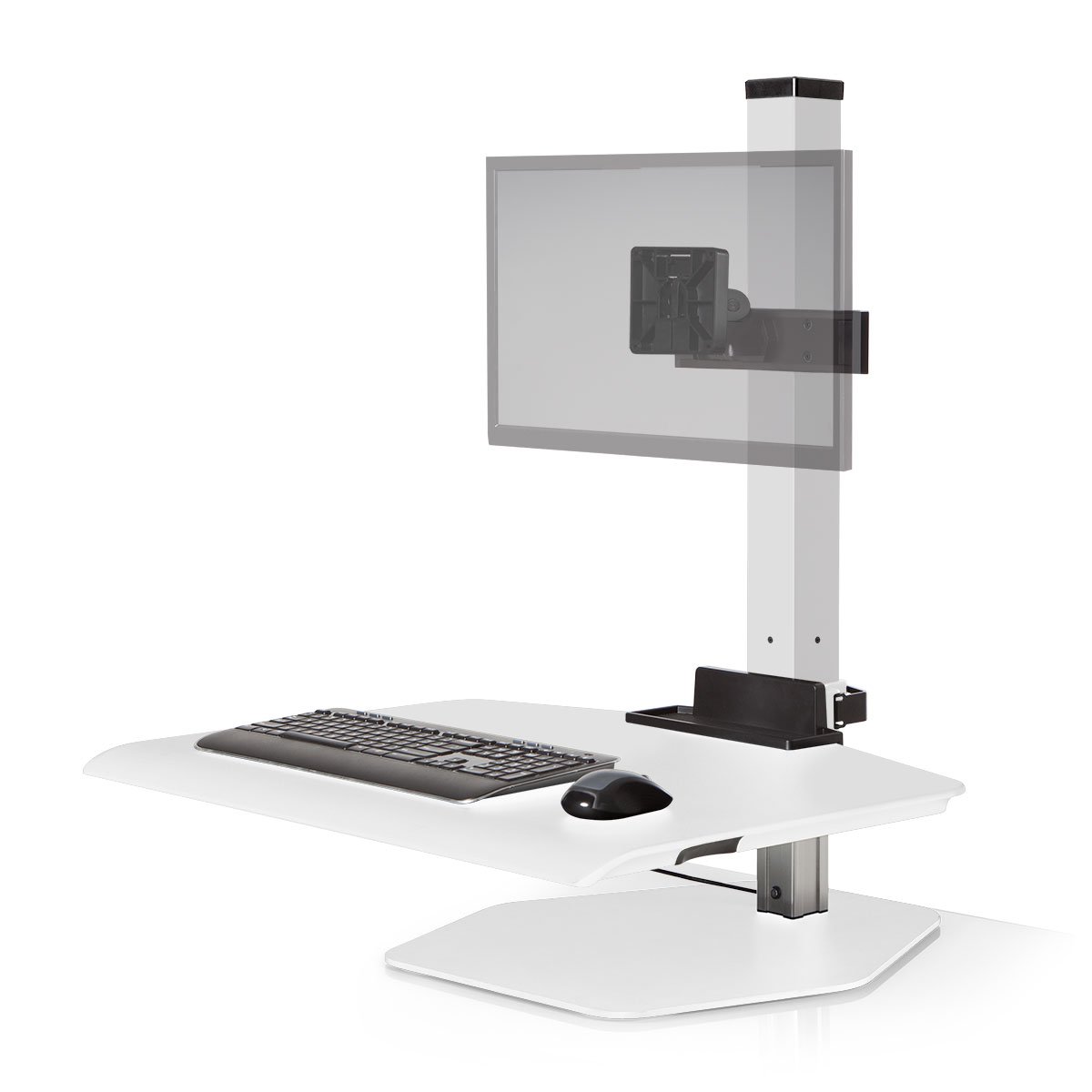

Winston Single Freestanding Sit-Stand Workstation in White
Innovative Winston Single Monitor Sit-Stand Workstation
Dual Clamp
Cable management
Back view
Winston Workstation Worksurface
Winston Single Freestanding Sit-Stand Workstation in Vista Black
Winston Single Freestanding Sit-Stand Workstation in White


  • Screen size:  up to 43" monitor
  • Converts existing desk into sit-stand
  • Quick installation with freestanding base
  • Great for glass desktops, no drilling required
  • The color of cross bar is black on all workstations with black, silver and white posts
  • White color post does not come with compact work surface
  • Height adjustment: 17"
  • Weight capacity: 7 - 20 lbs
  • Compact works surface for desks smaller than 24" deep
  • Looking for a dual monitor workstation?
  • Looking for an electric workstation?
  • This unit cannot be converted to a dual, triple or quad Winston workstation


Mount a 30" monitor on the Winston single monitor workstation. This adjustable monitor stand has a freestanding base which instantly turns your current desk into a standing desk. Quick installation without needing to drill makes this adjustable desktop workstation great for glass desktops.

A 30" x 19.3" work surface is ideal for desks smaller than 24" deep, while accommodating keyboard, mouse, phone, documents, and other necessary work items. This adjustable workstation offers 17" of height adjust to accommodate a variety of users and give you the freedom to easily alternate between sitting and standing throughout the day.

Excessive sitting is associated with a number of chronic diseases and conditions. Standing with a Winston sit-stand workstation for just three hours a day can offer the same health benefits as running 10 marathons a year and can extend your life by two years. Standing more also counters health concerns such as reducing the risk of obesity, type 2 diabetes, cardiovascular disease, and cancer.

This tabletop standing desk was engineered for stability with the industry's first locking cylinder to keep your workspace in place and eliminate wobbling while you work. A sleek, professional design means the Winston workstation fits into all types of offices and businesses, from home to corporate.

Convert your desk to a healthy sit-stand workstation in minutes. Winston Workstation freestanding sit-stand supports a flat panel monitor and features push-button height adjustment. Sit-stand workstation with compact work surface. Freestanding base retrofits to smaller desk spaces. Push-button height adjustment. Single monitor mount.

Winston Workstation - Energizing your body. Inspiring your mind. Instantly converts any desk into a sit stand workspace boosting health and productivity. Recent studies have shown that sitting throughout the day can have the same negative health consequences as smoking. Winston seamlessly integrates into your workday for a boost in health and wellness. Winston Workstation now comes with a compact work surface, ideal for users with smaller spaces who want to take advantage of a healthy sit stand workstation.


Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

Technical Drawing

Technical Drawing for Innovative Winston Single Monitor Sit-Stand Workstation

Technical Specifications

Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Height Adjustment Mechanism Pneumatic
Screen Size Up to 43"
Vertical Height Adjustment 17" (43.2 cm)
Work Surface Size WNST-1 - 23" x 30", WNST-1-CW - 17" x 30"
Weight Capacity 7 - 20 lbs (3.2 - 9.1 kg)
Monitor Tilt 200 degree
Monitor Pivot Landscape to portrait
Mount Configurations Freestanding
Monitor Compatibility VESA 75mm, 100mm
Cable Management Cables are clipped to column
Warranty 5 years


  • Quick, easy monitor install. Take the work out of adjusting and replacing monitors. Simply attach, adjust, and remove all at the face of the beam. No need to slide monitors to remove.

  • Quick and Easy Monitor Install

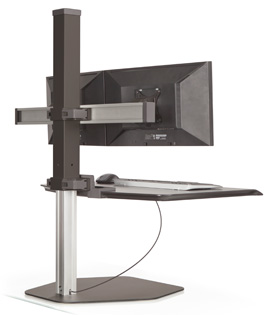

  • Engineered for stability. Designed to accommodate standing work without the distraction of unwanted movement.

  • Engineered for stability

  • Expansive work space. Large surface and convenient storage tray allow you to bring all necessities with you when you stand.

  • Expansive work space

  • Upgrade your space. Retrofit your existing desk into a healthy workspace with two easy mounting options: freestanding or desk clamp.

  • Seamless height adjustment. Features a 17" range of vertical height adjustment and a locking cylinder to keep the workstation in place. No manual adjustment needed.

  • Seamless height adjustment

  • Cable management. Cable clips in the column and beam keep the cables organized and out of the way.

  • Cable Management

  • Ethical manufacturing. Winston is assembled in the USA using components created through a green manufacturing process.

  • Winston is designed and assembled in the US

  • VESA-monitor compatible - 75mm, 100mm VESA adapters included.

  • Attention Apple users - compatible with VESA compliant iMac’s. (Apple VESA Mount Adapter Kit not included).

  • Additional mounting options: clamp mount and thru mount also available.

Frequently Asked Questions

q We have an employee who has this model (single monitor), but now is getting two monitors. Can the dual monitor mounting kit be purchased to fit this model?

Unfortunately single monitor unit cannot be converted to dual monitor unit due to weight reasons. The single unit is weight balanced for one monitor, adding two would cause the unit to not function.

Model WNST-1-104, WNST-1-124, WNST-1-248
Manufacturer Innovative LCD Arms
Part Number WNST-1-104, WNST-1-124, WNST-1-248
Color 104 - Vista Black, 124 - Silver, 248 - Flat White
Height Adjustment Vertical 17" (43.2 cm)
Mounting Pattern 75mm, 100mm
Monitor Weight 9 - 48 lbs (depending upon the model)
Desk Type Desk Mount
Price $600 - $699
Weight Capacity 7 - 20 lbs (3.2 - 9.1 kg)
Height Adjustment Mechanism Pneumatic
Monitor Size Up to 43"
Warranty 5 Years
Worksurface Dimensions WNST-1: 30" W x 23" D. WNST-1-CW: 30" W x 17" D
Mounting Options Freestanding
Tilt 200 degree
