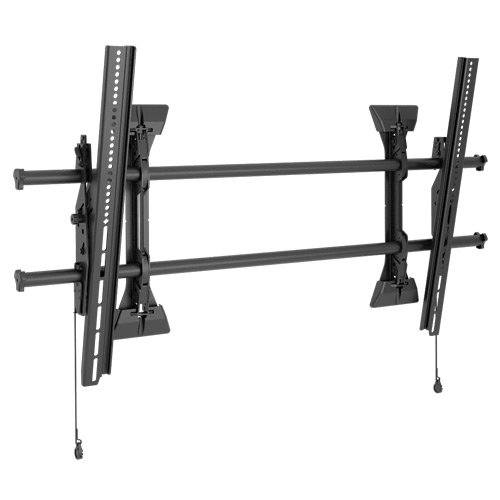

Chief XTM1U X-Large Fusion Micro-Adjustable Tilt Wall Mount (55-100")

Product ID 18240


  • Tilting Wall Mount for X-Large Displays
  • Landscape Wall Mount
  • Screen Size: 55 - 100"
  • Weight Capacity: 250 lbs
  • Screen Thickness:  Maximum 6"
  • UL Listed


Chief XTM1U, X-large Fusion tilt wall mount was designed based on installer feedback on a need for a tilt wall mount with added stability, faster installation, improved lateral shift with easier cable management and enhanced security. Many new features join Fusion favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

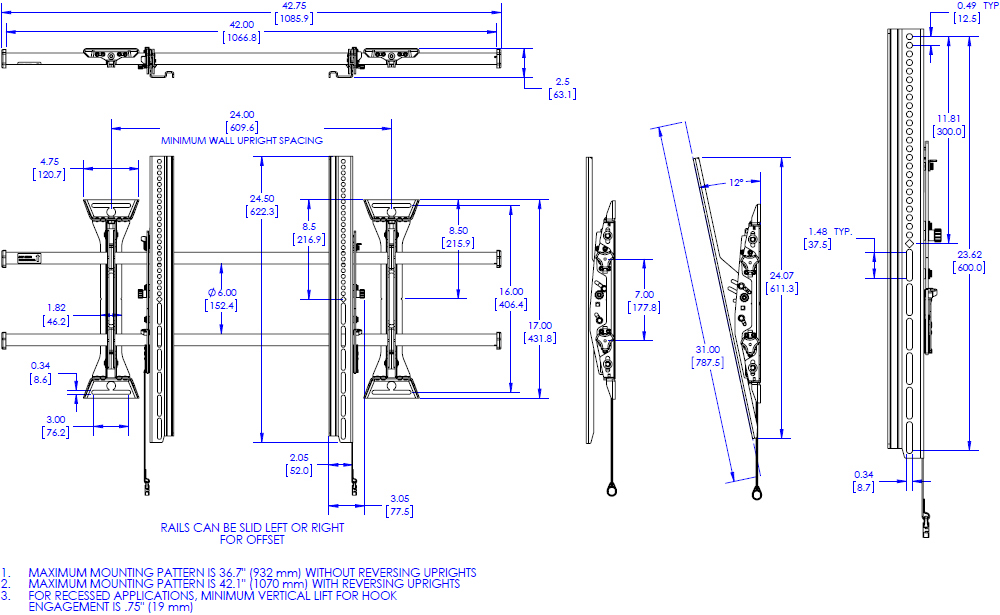

Technical Drawing

Technical Drawing for Chief XTM1U X-Large Fusion Micro-Adjustable Tilt Wall Mount (55-100


Certifications UL Listed, OSHPD Approved, TÜV Certified
Color Black
Lateral Shift 21.4" (542 mm)
Manual Height Adjustment 1" (25 mm)
Maximum Screen Thickness 6"
Minimum Depth 2.5" (64 mm)
Mounting Pattern Compatibility (Universal Versions) 100 x 100 mm - 1070 x 600 mm
Number of Monitors 1
Overall Dimensions (H x W x D) 24.5 x 42.75 x 2.5" (622 x 1086 x 64 mm)
Shipping Weight 27.24 lbs (12.36 kg)
Solution Type Universal
Tilt +5°, -12°
Typical Screen Sizes 55 - 100"
Wall Stud Compatibility In 24" - 42" (610 mm - 1067 mm)
Weight Capacity 250 lbs (113.4 kg)
Orientation Landscape


  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall

  • ControlZone Leveling for post-installation fine tuning of height and leveling

  • Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering

  • Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile

  • Set screws keep the mount rigid, stable and secure throughout the life of the installation

  • ClickConnect offers an audible click when the screen safely engages with the mount

  • Built-in cable stand provides easy access under the screen

  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together

  • Multiple installation options for various stud distances

  • Exclusive nesting spacers can be stacked to achieve any depth

  • Quick-Store Cords use magnets to easily store and access pull cords

  • Improved cable management with new end caps

  • Integrated Security

  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages

  • Easy Open box with less waste to throw away

Model XTM1U
Manufacturer Chief Mounts
Part Number XTM1U
UPC 841872163888
Color Black
Lateral Shift 21.4" (542 mm)
Manual Height Adjustment 1" (25 mm)
Maximum Screen Thickness 6"
Minimum Depth 2.5" (64 mm)
Mounting Pattern 100 x 100 mm - 1070 x 600 mm
Overall Dimensions 24.5 x 42.75 x 2.5" (622 x 1086 x 64 mm)
Shipping Weight 27.24 lbs (12.36 kg)
Tilt +5 degree, -12 degree
Monitor Size 55 - 100"
Wall Stud 24" - 42" (610 mm - 1067 mm)
Weight Capacity 250 lbs (113.4 kg)
Mounting Options Tilting Wall
Orientation Landscape
Number of Monitors 1 Monitor
