Chief MTM1U Medium Fusion Micro-Adjustable Tilt Wall Mount (32-65")

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 18242
Highlights
  • Low profile tilting wall mount for TVs 32"- 65"
  • Design inspired by feedback from installers
  • For TVs weighing up to 125 lbs
  • 17.5" post-installation lateral shift possible
  • Stand provides easy access to cables behind the screen
  • Audible click heard when the mount successfully attaches to the TV
  • Multiple installation options matching various stud distances
  • Want to mount a TV bigger than 47"?
Recommended Accessories
List Price: $225.00
You save $63.40
Our Price: $161.60
Shipping: FREE SHIPPING *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

Description

Chief MTM1U is a tilting wall mount for TVs and displays weighing up to 125 lbs and screen size of 32" - 65". A part of the Fusion series of display mounts, MTM1U is the updated version of MTMU. These updates and feature improvements to the Fusion series of fixed and tilting wall mounts were carried out after extensive feedback and observations of the audio visual (AV) installers.

Keeping in mind the convenience of installers, the MTM1U has been designed by allowing pre-installation of the bolts to the wall. Plus it has all the earlier features of Fusion mounts like
1) Centerless Shift - Provides 17.5" - 8.75" left or right - post-installation shift
2) Centris Low-profile Tilt - Allows for balancing the screen while maintaining a close profile to the wall
3) ControlZone Leveling - Micro adjustment of height and leveling is possible post-installation. 1" height adjustment and minimum depth is 2"
4) ClickConnect - Gives out an audible click once the display has been successfully installed on the mount

The new features of MTM1U include built-in cable stand for access under the screen, multiple installation options for various stud distances, any depth achievable with exclusive nesting spacers, a custom hardware kit that can hang on the rails in order to avoid loss, especially if the installation is taking place in stages.
Last but not the least, the MTM1U has customer friendly packaging that opens the box easily and reduces wastage.
If the area of the wall where you want to install the MTM1U has a single stud, order the FCA1S single stud adaptor accessory.

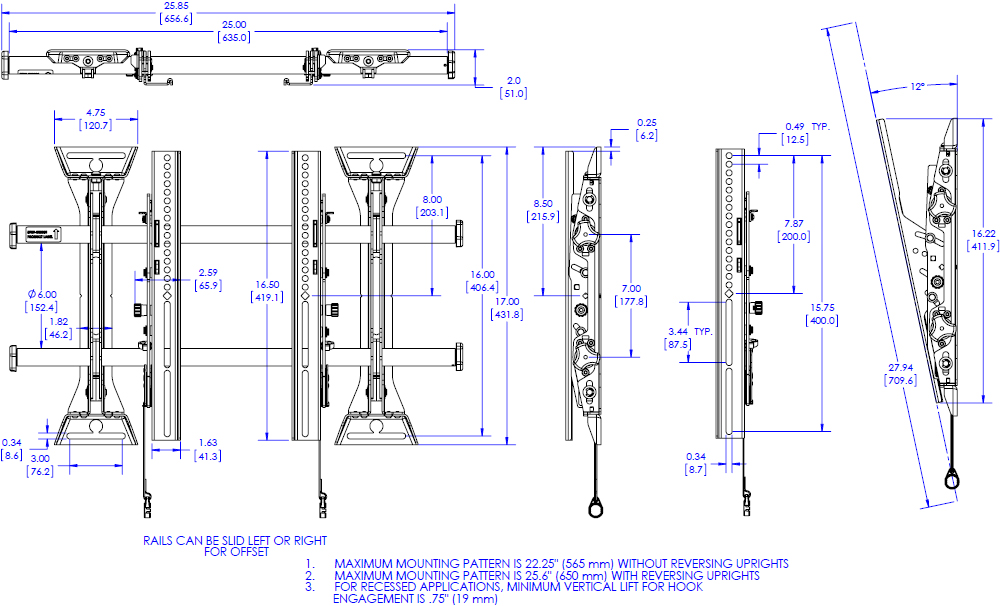

Technical Drawing

Technical Drawing for Chief MTM1U Medium Fusion Micro-Adjustable Tilt Wall Mount (32-65

Specifications

Certifications UL Listed, OSHPD Approved
Color Black
Lateral Shift 12.9" (327 mm)
Manual Height Adjustment 1" (25 mm)
Minimum Depth 2" (51 mm)
Mounting Pattern Compatibility (Universal Versions) 100 x 100 mm - 650 x 400 mm
Number of Monitors 1
Overall Dimensions (H x W x D) 17 x 25.75 x 2" (432 x 654 x 51 mm)
Shipping Weight 19.31 lbs (8.76 kg)
Solution Type Universal
Tilt +2°, -12°
Typical Screen Sizes 32 - 65"
Wall Stud Compatibility In 16" - 24" (406 mm - 610 mm)
Weight Capacity 125 lbs (56.7 kg)
Orientation Landscape

Features

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall

  • ControlZone Leveling for post-installation fine tuning of height and leveling

  • Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering

  • Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile

  • Set screws keep the mount rigid, stable and secure throughout the life of the installation

  • ClickConnect offers an audible click when the screen safely engages with the mount

  • Built-in cable stand provides easy access under the screen

  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together

  • Multiple installation options for various stud distances

  • Exclusive nesting spacers can be stacked to achieve any depth

  • Quick-Store Cords use magnets to easily store and access pull cords

  • Improved cable management with new end caps

  • Integrated Security

  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages

  • Easy Open box with less waste to throw away

Model MTM1U
Manufacturer Chief Mounts
Part Number MTM1U
UPC 841872163291
Color Black
Lateral Shift 12.9" (327 mm)
Manual Height Adjustment 1" (25 mm)
Maximum Screen Thickness 6"
Minimum Depth 2" (51 mm)
Mounting Pattern 100 x 100 mm - 650 x 400 mm
Overall Dimensions 17 x 25.75 x 2" (432 x 654 x 51 mm)
Shipping Weight 19.31 lbs (8.76 kg)
Tilt +2 degree, -12 degree
Monitor Size 32 - 65"
Wall Stud 16" - 24" (406 mm - 610 mm)
Weight Capacity 125 lbs (56.7 kg)
Mounting Options Tilting Wall
Number of Monitors 1 Monitor
Orientation Landscape

Be the first to review this product

Chief MTM1U Medium Fusion Micro-Adjustable Tilt Wall Mount (32-65")

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
