Chief MTA1U Medium Fusion Tilt Wall Mount for (32-65")
Chief MTA1U Medium Fusion Tilt Wall Mount for (32-65")

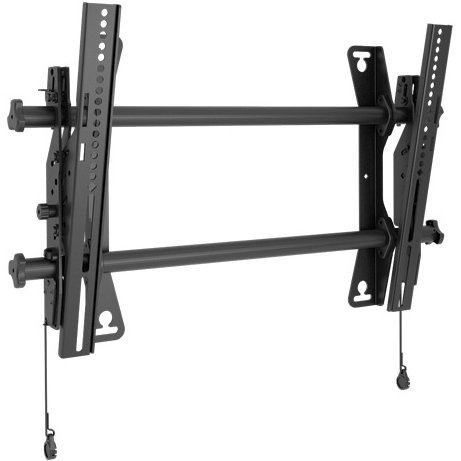

Chief's MTA1U Fusion tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion features include Centerless shift, Centris tilt and ClickConnect Latching.

Benefits included increased stability, fast installation, easy cable management and security. The installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

For single stud applications, order the FCA1S Single Stud Adaptor Accessory.

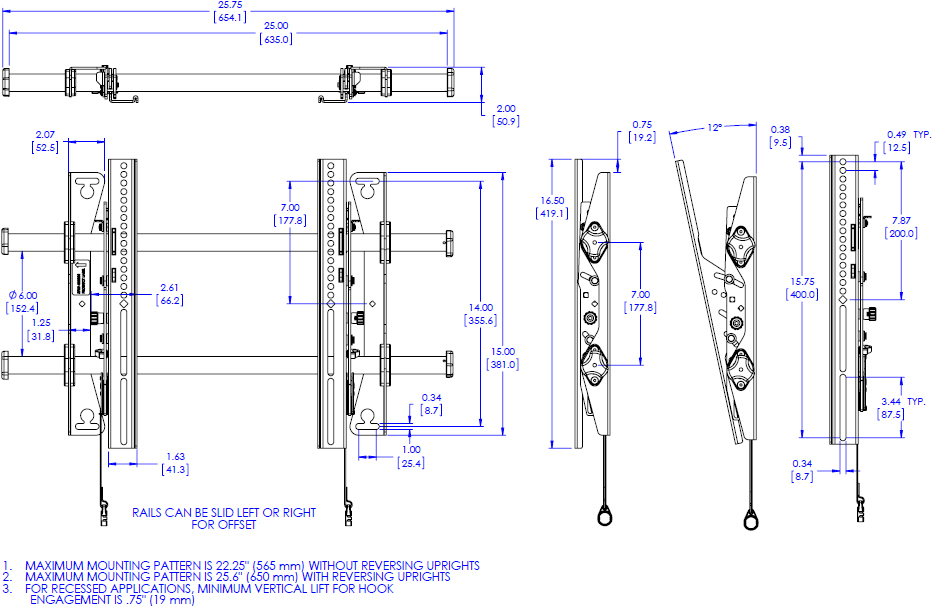

Technical Drawing

Technical Drawing for Chief MTA1U Medium Fusion Tilt Wall Mount for (32-65


Certifications UL Listed, OSHPD Approved, TÜV Certified
Color Black
Lateral Shift 12.9" (327 mm)
Minimum Depth 2" (51 mm)
Mounting Pattern Compatibility (Universal Versions) 100 x 100 - 650 x 400 mm
Number of Monitors 1
Overall Dimensions (H x W x D) 16.5 x 25.75 x 2" (419 x 654 x 51 mm)
Shipping Weight 15.86 lbs (7.19 kg)
Solution Type Universal
Tilt +2°, -12°
Typical Screen Sizes 32 - 65"
Wall Stud Compatibility 16" - 24" (406 mm - 610 mm)
Weight Capacity 125 lbs (56.7 kg)
Orientation Landscape


  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall

  • Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering

  • Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile

  • Set screws keep the mount rigid, stable and secure throughout the life of the installation

  • ClickConnect offers an audible click when the screen safely engages with the mount

  • Built-in cable stand provides easy access under the screen

  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together

  • Multiple installation options for various stud distances

  • Exclusive nesting spacers can be stacked to achieve any depth

  • Quick-Store Cords use magnets to easily store and access pull cords

  • Improved cable management with new end caps

  • Integrated Security

  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages

  • Easy Open box with less waste to throw away

Model MTA1U
Manufacturer Chief Mounts
Part Number MTA1U
UPC 841872163741
Color Black
Lateral Shift 12.9" (327 mm)
Maximum Screen Thickness 6"
Minimum Depth 2" (51 mm)
Mounting Pattern 100 x 100 - 650 x 400 mm
Overall Dimensions 16.5 x 25.75 x 2" (419 x 654 x 51 mm)
Shipping Weight 15.86 lbs (7.19 kg)
Tilt +2 degree, -12 degree
Monitor Size 32 - 65"
Wall Stud 16" - 24" (406 mm - 610 mm)
Weight Capacity 125 lbs (56.7 kg)
Mounting Options Tilting Wall
Orientation Landscape
Number of Monitors 1 Monitor
