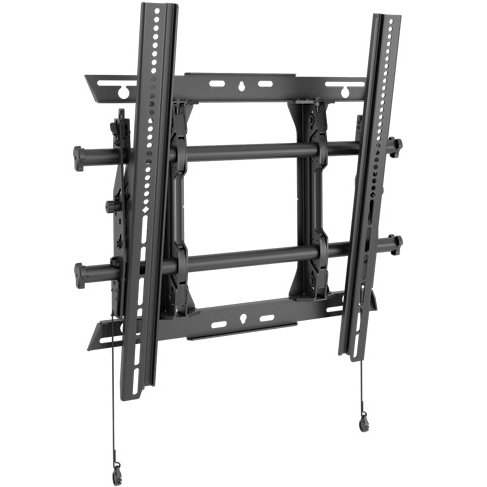

Chief MTMP1U Medium Fusion Micro-Adjustable Portrait Tilt Wall Mount

Product ID 18245
Chief MTMP1U Medium Fusion Micro-Adjustable Portrait Tilt Wall Mount
Chief MTMP1U Medium Fusion Micro-Adjustable Portrait Tilt Wall Mount


Chief's MTMP1U Fusion tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.

Benefits included increased stability, fast installation, easy cable management and security. The installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

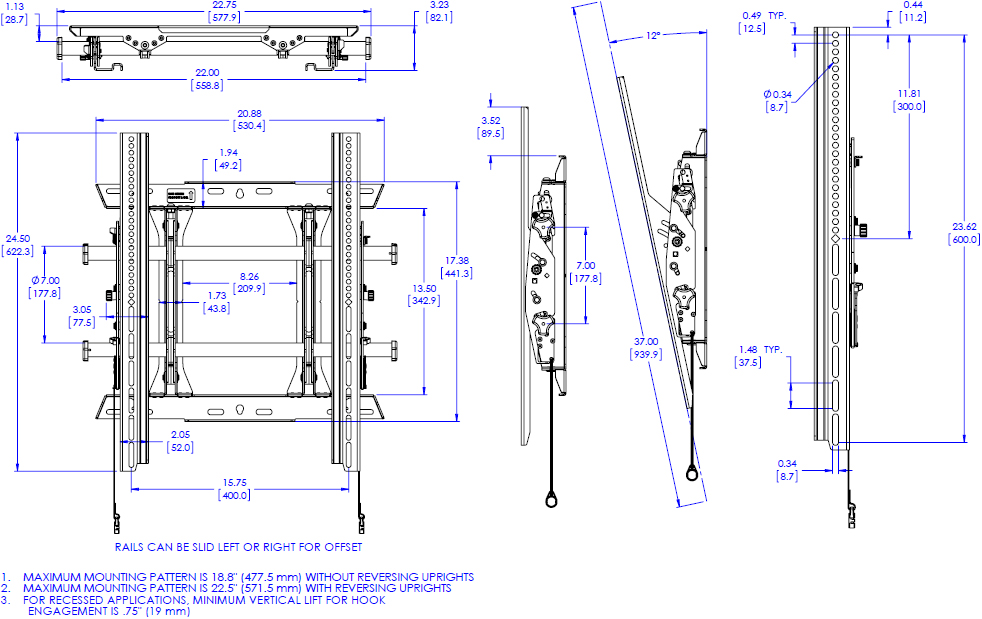

Technical Drawing

Technical Drawing for Chief MTMP1U Medium Fusion Micro-Adjustable Portrait Tilt Wall Mount


Certifications UL Listed, OSHPD Approved, TÜV Certified
Color Black
Lateral Shift 10.4" (265 mm)
Manual Height Adjustment 1" (25 mm)
Minimum Depth 3.2" (81 mm)
Mounting Pattern Compatibility (Universal Versions) 100 x 100 - 571 x 600 mm
Number of Monitors 1
Overall Dimensions (H x W x D) 24.5 x 20.88 x 3.2" (622 x 530 x 81 mm)
Shipping Weight 25.25 lbs (11.45 kg)
Solution Type Universal
Tilt +5°, -12°
Typical Screen Sizes 43 - 47"; and stretch aspect displays with compatible mounting patterns
Wall Stud Compatibility 16" and single stud, weight capacity is reduced to 125 lbs (56.7 kg) for single stud mounting
Weight Capacity 200 lbs (90.7 kg)
Orientation Portrait


  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall

  • Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering

  • Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile

  • Set screws keep the mount rigid, stable and secure throughout the life of the installation

  • ClickConnect offers an audible click when the screen safely engages with the mount

  • Built-in cable stand provides easy access under the screen

  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together

  • Multiple installation options for various stud distances

  • Exclusive nesting spacers can be stacked to achieve any depth

  • Quick-Store Cords use magnets to easily store and access pull cords

  • Improved cable management with new end caps

  • Integrated Security

  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages

  • Easy Open box with less waste to throw away

Model MTMP1U
Manufacturer Chief Mounts
Part Number MTMP1U
UPC 841872163895
Color Black
Lateral Shift 10.4" (265 mm)
Manual Height Adjustment 1" (25 mm)
Maximum Screen Thickness 6"
Minimum Depth 3.2" (81 mm)
Mounting Pattern 100 x 100 - 571 x 600 mm
Overall Dimensions 24.5 x 20.88 x 3.2" (622 x 530 x 81 mm)
Shipping Weight 25.25 lbs (11.45 kg)
Tilt +5 degree, -12 degree
Monitor Size 43 - 47"
Wall Stud Single stud and 16"
Weight Capacity 200 lbs (91 kg) Dual Stud and 125 lbs (57 kg) Single Stud
Mounting Options Tilting Wall
Orientation Portrait
Number of Monitors 1 Monitor
