$932.00

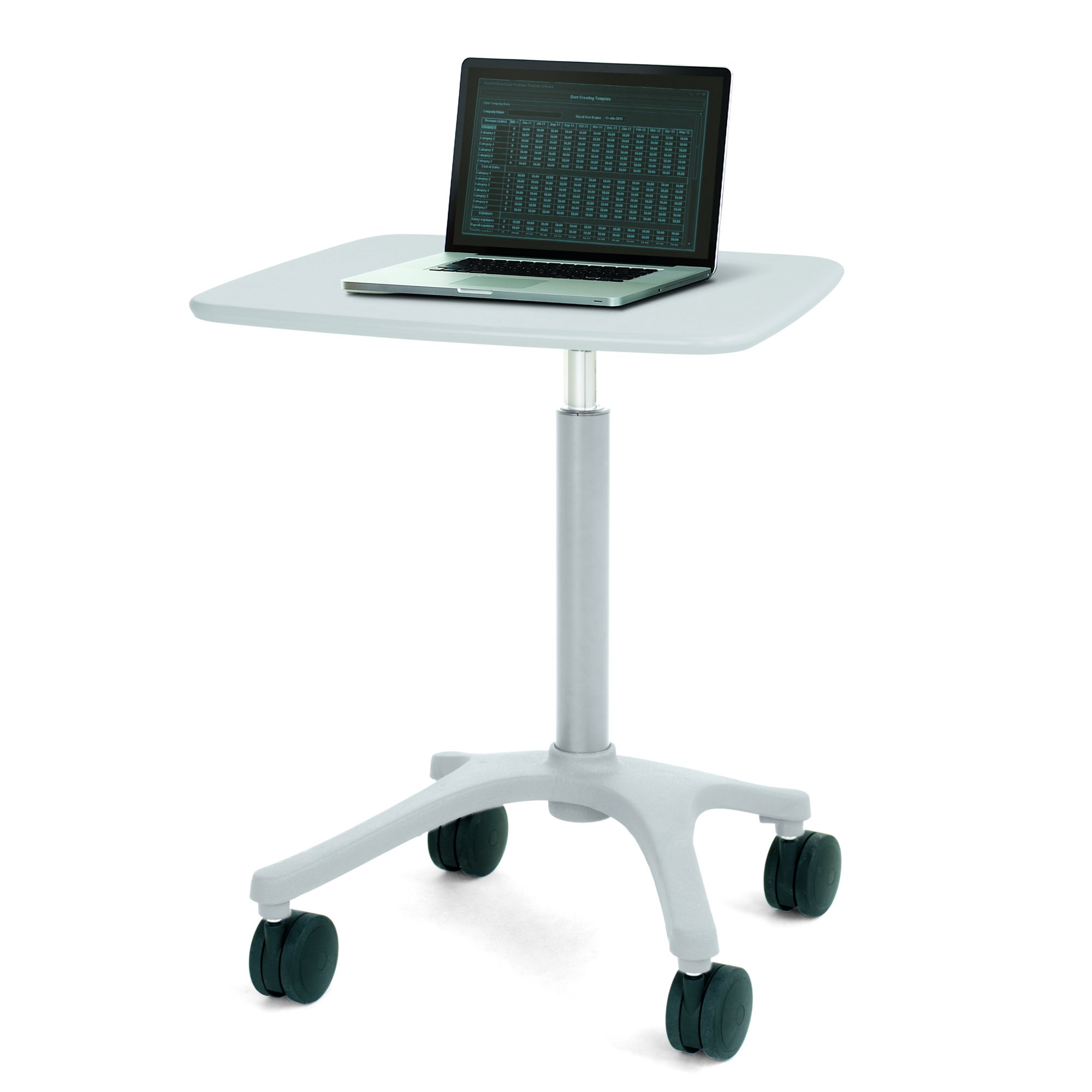

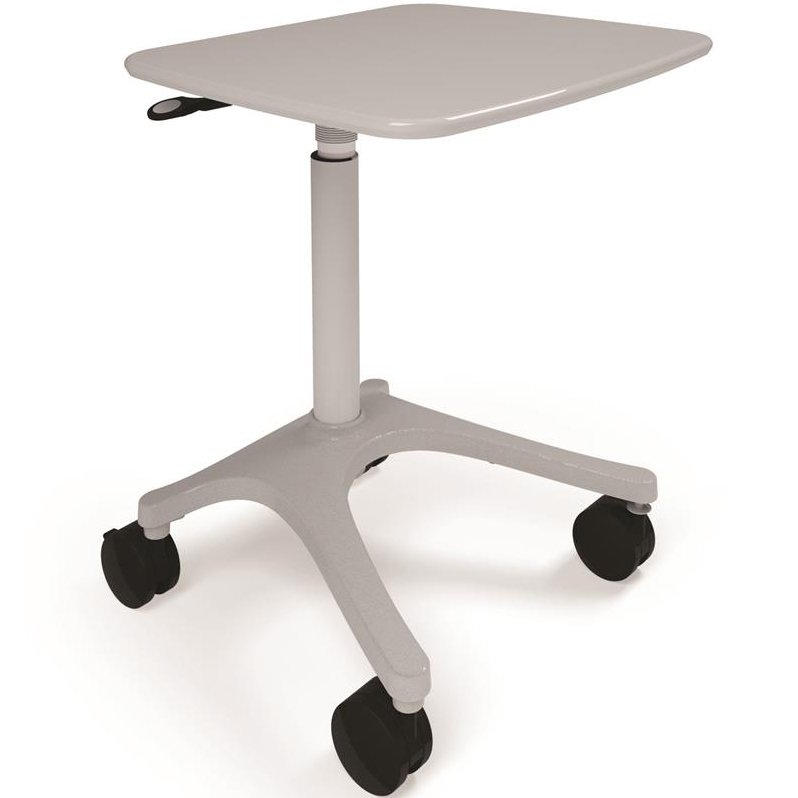

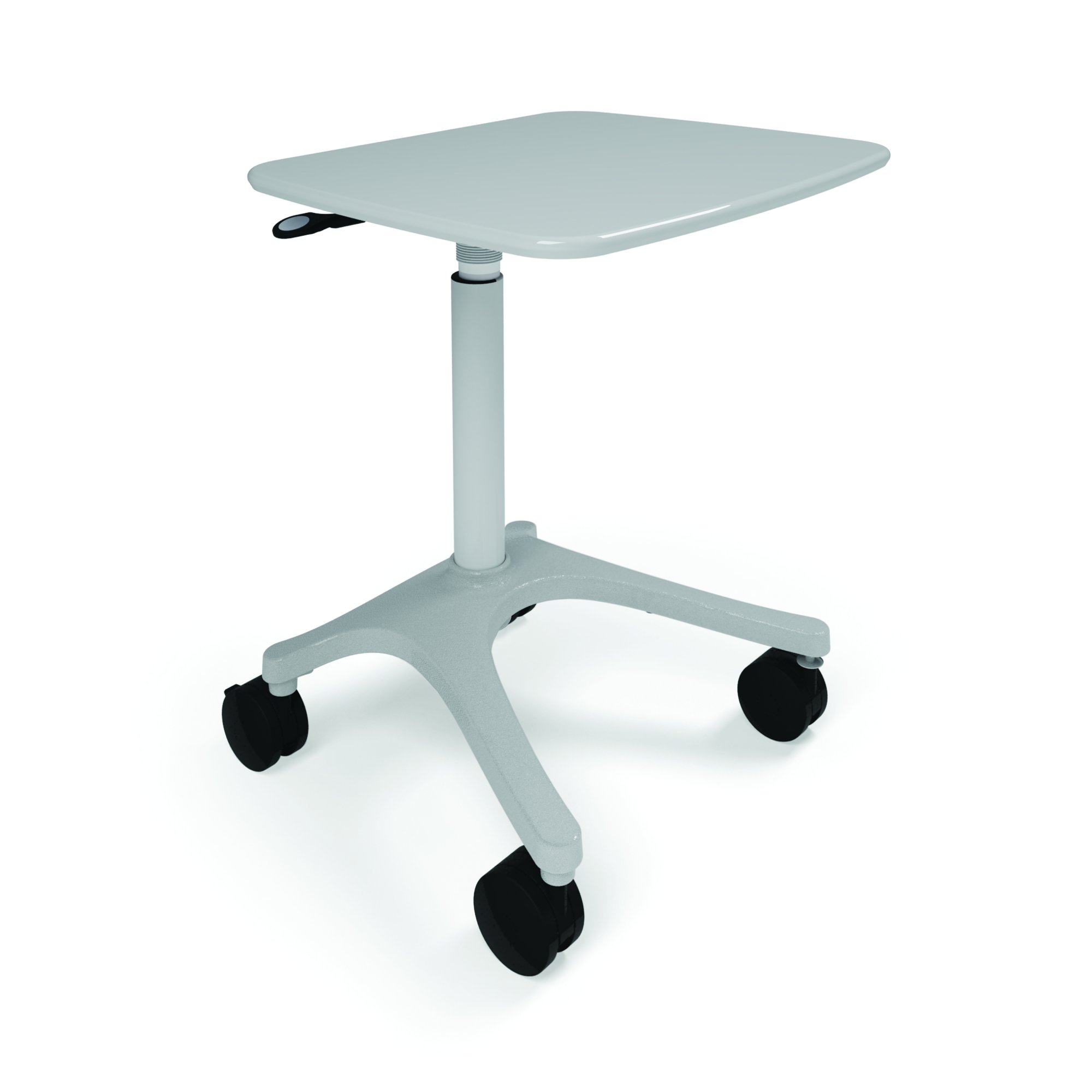

Ergotron ZAH25CG/CG4 Anthro Zido 25 Height Adjustable Cart, Heavy Load

Product ID 18551
Ergotron ZAH25CG/CG4 Anthro Zido 25 Height Adjustable Cart, Heavy Load
Ergotron ZAH25CG/CG4 Anthro Zido 25 Height Adjustable Cart, Heavy Load
Ergotron ZAH25CG/CG4 Anthro Zido 25 Height Adjustable Cart, Heavy Load

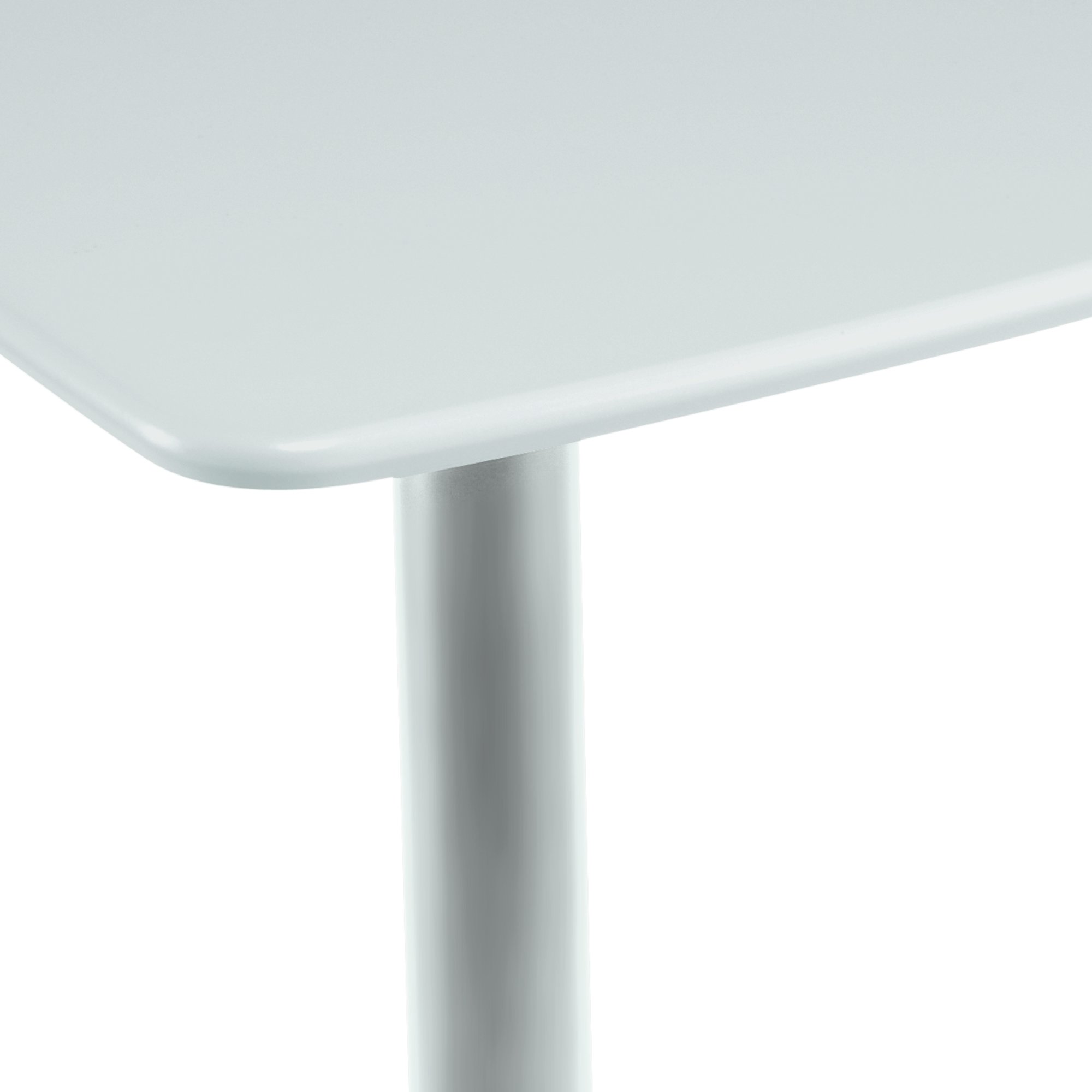

Smooth shelf
Ergotron ZAH25CG/CG4 Anthro Zido 25 Height Adjustable Cart, Heavy Load
Ergotron ZAH25CG/CG4 Anthro Zido 25 Height Adjustable Cart, Heavy Load
Ergotron ZAH25CG/CG4 Anthro Zido 25 Height Adjustable Cart, Heavy Load
Smooth shelf

Description

Ergotron ZAH25CG/CG4 is perfect as a mobile computer station with lots of accessories. Versatile, easy-to-customize Zido carts have all the flexibility you need. Choose from dozens of accessories and outfit your Zido cart to hold a computer system, a laptop, or small devices and supplies. The adjustable-height column moves the surface between 30" and 40" (76–102 cm) high so you can position it at the right height for you. This model’s surface-width is 25" (64 cm). The ZAH25CG/CG4 was formerly manufactured by Anthro.

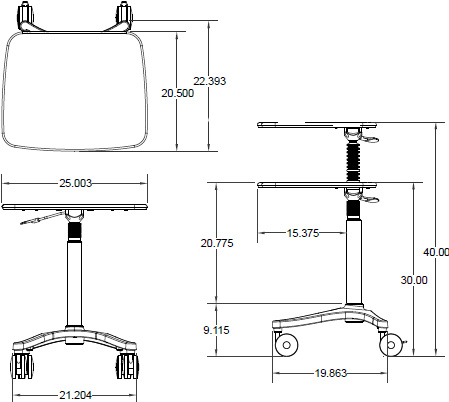

Technical Drawing

Technical Drawing for Ergotron ZAH25CG/CG4 Anthro Zido 25 Height Adjustable Cart, Heavy Load

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
-

Up to 150 lbs

68.0 kg

10"

25.4 cm

- - - -

Product Information

Part Number ZAH25CG/CG4
Description Zido 25, Adjustable-Height Cart, Heavy Load (cool grey)
Includes
  • 25" wide worksurface

  • Worksurface bracket

  • 2.5" diameter pneumatic column (heavy load)

  • Rubber column cover

  • Metal base

  • Four 4" dual-wheel casters (two locking)

Weight Capacity 150 lbs (68.2 kg) in total; 50 lbs (22.7 kg) on worksurface. Note: Optimal load on adjustable-height worksurface = 27–41 lbs (12.3–18.6 kg); loads lighter than 27 lbs (12.3 kg) will be harder to push down and loads heavier than 41 lbs (18.6 kg) will be harder to pull up
Load When calculating the load being applied to the cart’s column and worksurface, also factor the weight of any accessory options that are being installed
Zido's Column Zido’s column is offset to the back of the cart base, leaving room in front of the column for you to stand or sit comfortably. The offset column also leaves space to install deeper accessories
Worksurface Worksurface is medium-density fiberboard wrapped in highly durable thermoplastic laminate that resists cracking and chipping and stands up to a wide range of chemicals. Metal surfaces have a baked-on powder coat finish
Worksurface Dimensions 25" x 20.5" (63.5 x 52 cm)
Shipping Dimensions 35" x 29" x 7" (18 x 89 x 74 cm)
Shipping Weight 63 lbs (28.6 kg)
Warranty Limited lifetime; five (5) years for pneumatic cylinder

Benefits

Built with Anthro-DNA

  • The 30-year legacy of Anthro Corporation lives on in its world-class factory, award-winning designs and market-leading personal customer service

  • This product is Built with Anthro‑DNA.


Height Adjustable

  • Find a comfortable height whether sitting or standing

  • Squeeze the lever and a pneumatic cylinder moves the surface to any height between 30" and 40" (76–102 cm)


A Strong Foundation

  • Zido’s heavy cast-metal base provides a very stable foundation

  • Even though it’s small to fit tight spaces, this cart holds up to 150 lbs (68.2 kg) total, and up to 41 lbs (18.6 kg) on the height-adjustable platform


Load It Up

  • Different Zido accessories install on the front or the back of the column to maximize your space

  • Add storage, a power strip, or keyboard and monitor mounts

  • The column has holes in 1" (2.5 cm) increments to install shelves, bins and other accessories at exactly the right height


Cable Management and On-Board Power

  • Use an accessory Cable Bin or Hooks to organize cords and an accessory Surge Protector to provide an easy power interface for all your equipment - send a single power cable to the wall

Frequently Asked Questions

q What is measurement of pole, not including base & casters or section that expands/contracts? I would like to add carts to pole section and need to know the measurement.
a

The lowest height of the tube is 30" but that does include several inches for the base as well as another few for the pneumatic part of the column and shelf. Our technical team has advised that you can add an additional shelf on the pole but not an additional cart. Also the number of shelves you will be able to add depends on what you're putting on them. The holes are at 1" increments but you would need a few inches per shelf.

q
a

Model ZAH25CG/CG4
Manufacturer Ergotron
Part Number ZAH25CG/CG4
UPC 766212222356
Color Cool grey
Weight Capacity Up to 150 lbs (68.0 kg)
Lift (25.4 cm) 10 in
Height Adjustment Between 30" and 40" (76–102 cm)
Shipping Dimensions 35" x 29" x 7" (18 x 89 x 74 cm)
Shipping Weight 63 lbs (28.6 kg)
Warranty Limited lifetime; five (5) years for pneumatic cylinder
Worksurface Dimensions 25" x 20.5" (63.5 x 52 cm)
Power Type Non-powered
