$1,052.00

Ergotron BZD02CG/CG4 Anthro Zido Ultrasound Mobile Cart

Product ID 18554
Ergotron BZD02CG/CG4 Anthro Zido Ultrasound Mobile Cart
Find the most comfortable fit by manually adjusting the cart's height from 30" to 40" high.
The Large Probe Holder gives you a convenient spot to store your transducer probe. Both large and small options are shown.
Large 4" casters travel easily over thresholds.
The cart's contoured top with 1/2" high lip keeps your equipment in place while moving from room to room.

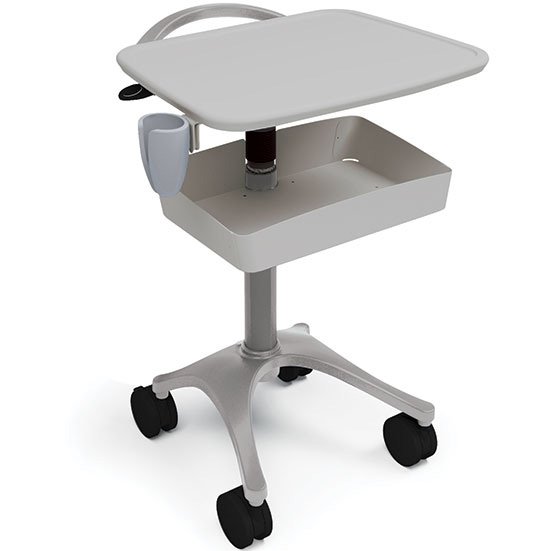

Ergotron BZD02CG/CG4 Anthro Zido Ultrasound Mobile Cart

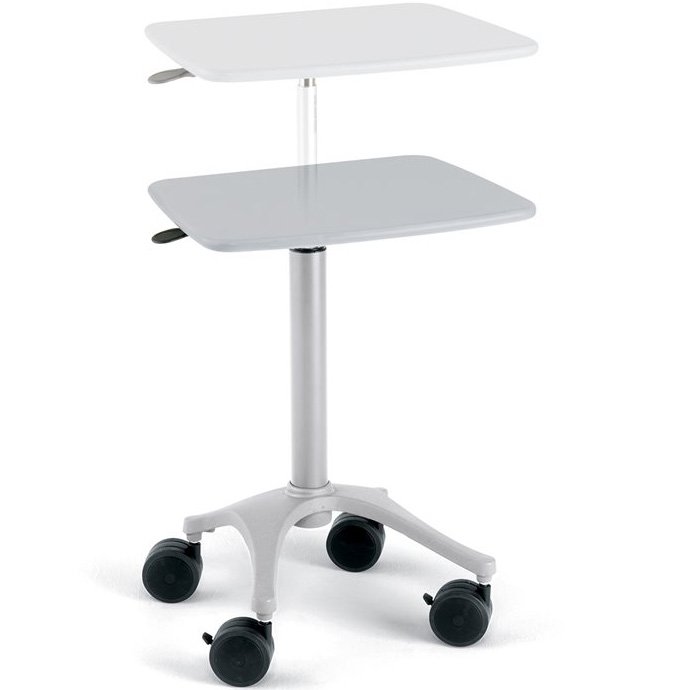

Find the most comfortable fit by manually adjusting the cart's height from 30" to 40" high.

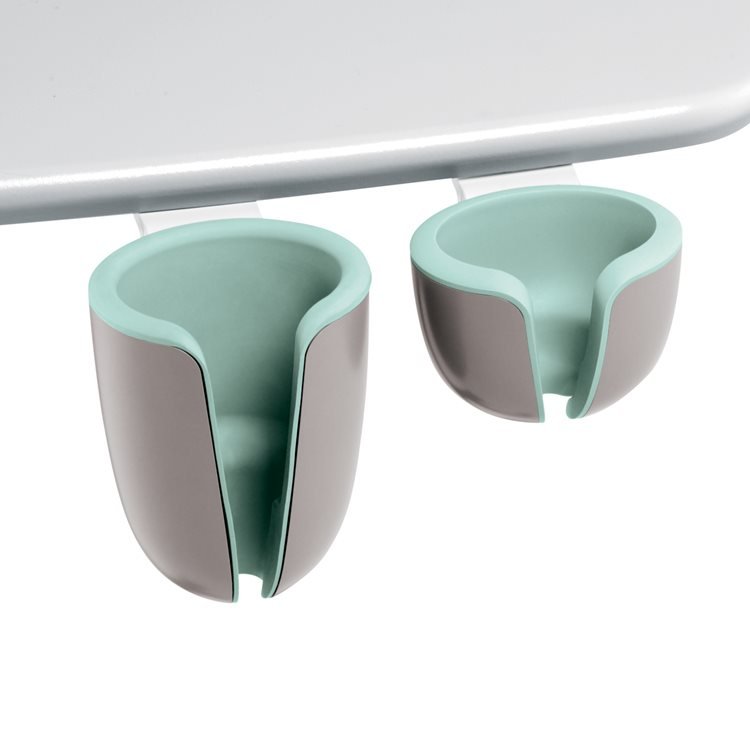

The Large Probe Holder gives you a convenient spot to store your transducer probe. Both large and small options are shown.

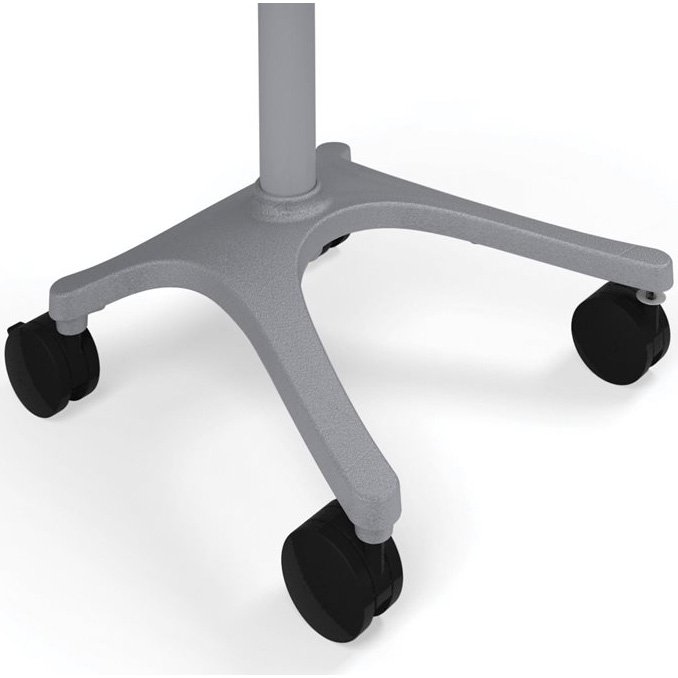

Large 4" casters travel easily over thresholds.

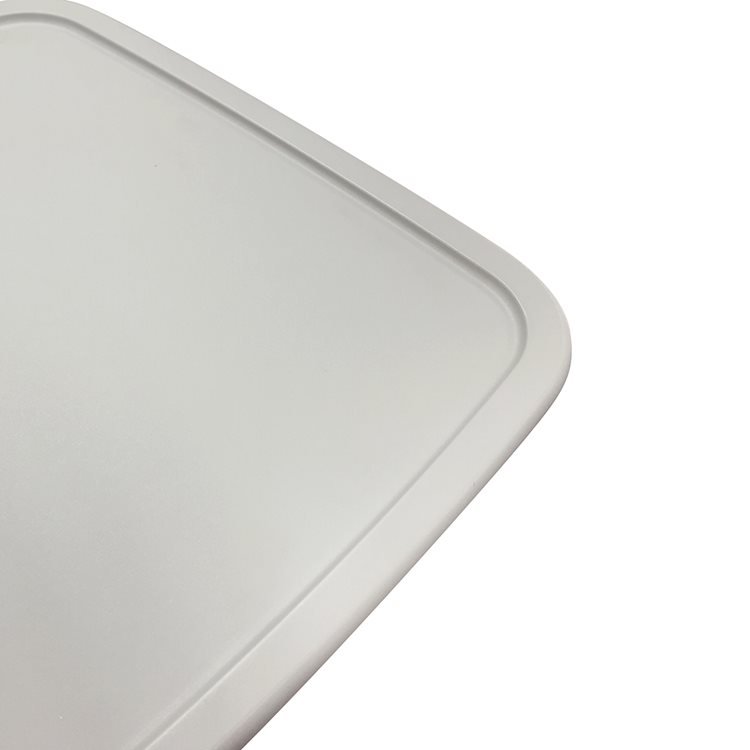

The cart's contoured top with 1/2" high lip keeps your equipment in place while moving from room to room.

Description

Ergotron BZD02CG/CG4 height-adjustable, mobile cart is fully customized to support ultrasound equipment. Store your transducer probe in the Probe Holder, and conveniently house gels, tissues and other small items in the Metal Bin. The cart's contoured top with lip keeps your ultrasound machine in place while moving from room to room. The BZD02CG/CG4 was formerly manufactured by Anthro.



Technical Drawing

Technical drawing for Ergotron BZD02CG/CG4 Anthro Zido Ultrasound Mobile Cart Package



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

-

Up to 135 lbs

61.4 kg

10"

25 cm

-

-

-

-



Product Information

Part Number

BZD02CG/CG4

Description

Zido Ultrasound Cart Package (cool grey)

Includes

  • Probe holder

  • Metal bin

  • Handle

  • Zido Adjustable-Height Cart (lipped worksurface, worksurface bracket, 2.5"-diameter pneumatic column (light load), rubber column cover, metal base, four 4" dual-wheel casters)

Weight Capacity

135 lbs (61.4 kg) in total; 45 lbs (20.5 kg) on worksurface

Load

  • When calculating the load being applied to the cart’s column and worksurface, also factor the weight of any accessory options that are being installed.
  • The listed capacity for the Zido Ultrasound Cart Package factors the additional weight of the handle (4 lbs/1.8 kg), probe holder (1 lbs/.5 kg) and metal bin (10 lbs/4.5 kg).
  • Without addition of packaged accessories, the Zido Cart’s total weight capacity = 150 lbs (68.2 kg)

Zido's Column

Is offset to the back of the cart base, leaving room in front of the column for you to stand or sit comfortably. The offset column also leaves space to install deeper accessories

Worksurface

  • Worksurface is medium-density fiberboard wrapped in highly durable thermoplastic laminate that resists cracking and chipping and stands up to a wide range of chemicals. Metal surfaces have a baked-on powder coat finish

  • The worksurface included with this package features a lipped perimeter to keep items from rolling off

Probe Holder Dimensions

2.5" x 3.5" x 4.5" (6.4 x 8.9 x 11.4 cm)

Metal Bin Dimensions

18" x 11" x 3" (45.7 x 27.9 x 7.6 cm)

Zido Package

This Zido package configuration is shipped in 4 boxes

Shipping Weight

67 lbs (30.5 kg)

Warranty

Limited lifetime; five (5) years for pneumatic cylinder



Benefits

  • Built with Anthro-DNA - The 30-year legacy of Anthro Corporation lives on in its world-class factory, award-winning designs and market-leading personal customer service. This product is Built with Anthro‑DNA, signifying quality American-made manufacturing and technology leadership

  • Height Adjustable - Find a comfortable height whether sitting or standing. Squeeze the lever and a pneumatic cylinder moves the surface to any height between 30" and 40" (76–102 cm)

  • A Strong Foundation - Zido’s heavy cast-metal base provides a very stable foundation. Even though it’s small to fit tight spaces, this cart holds up to 135 lbs (61.4 kg) total

  • Easy to Maneuver - With a footprint of just 22" by 22" (56 x 56 cm), this cart fits easily in tight spaces, so it can go everywhere you do. The 17"-wide (43 cm) handle makes it easy to steer anywhere you need go

  • Fully Customized for Your Application - Customized specifically for ultrasound systems, this cart has a Probe Holder for a transducer probe, and a Metal Bin for other supplies, like gels, gloves and tissues



Model BZD02CG/CG4
Manufacturer Ergotron
Part Number BZD02CG/CG4
UPC 766212218625
Color Cool grey
Weight Capacity Up to 135 lbs (61.4 kg) in total; 45 lbs (20.5 kg) on worksurface
Lift (25 cm) 10 in
Height Adjustment Between 30" and 40" (76–102 cm)
Dimensions Probe Holder: 2.5" x 3.5" x 4.5" (6.4 x 8.9 x 11.4 cm)
Dimensions Metal Bin: 18" x 11" x 3" (45.7 x 27.9 x 7.6 cm)
Shipping Weight 67 lbs (30.5 kg)
Warranty Limited lifetime; five (5) years for pneumatic cylinder
Power Type Non-powered
Lift Technology Gas Spring
TAA Compliant No
