Office Master TY608 (OM Seating) Simple Synchro-Tilt Truly. Ergonomic Chair
- TY608 is custom-made and non-returnable. All fabric colors shown on your computer screen are approximate depending on resolution of your monitor.
Description
Truly a unique design to fit any work, conference or executive environment. Patented, award-winning design offers a range of aesthetic and functional choices. Multiple ergonomic mechanisms, 3 seat sizes, and 6 different polyback colors to make Truly. yours. Designed by Francisco Romero of Phidesign.
TruFit Back System
1. Back height adjustment - Click it all the way up, Then, all the way down to reset. Position the height where you want.
2. Adjustable lumbar - Loosen to the left. Tighten to the right. Adjust the back arch as you like.
3. Lively “working support” - Truly’s back is a next generation polymer blend that allows the back to flex as you move, work, & create.
Specifications
| Overall Width | 27" |
| Overall Height | 38.25 - 47.5" |
| Overall Depth | 27" |
| Back | 20" W x 24" H |
| Seat | 18" W x 16.5-19.6" D (petite) 19" W x 17.5-20.6" D (standard) 20.75" W x 18-21.1" D (full) |
| Standard Seat Height Petite Seat Height Tall Seat height |
17" - 22" (approx.) 15.5" - 19.5" (approx.) 19" - 24 " (approx.) |
| COM (seat only) | 1 yard |
| Arms | Groups AR, 1 and 4 |
| Travel Range (ht.) | 4.25" (back) / 5" (seat) |
| Carton Weight | 70 lbs |
| FedEx Weight | 101 lbs |
| Weight Capacity | 300 lbs |
| Warranty | Lifetime Limited |

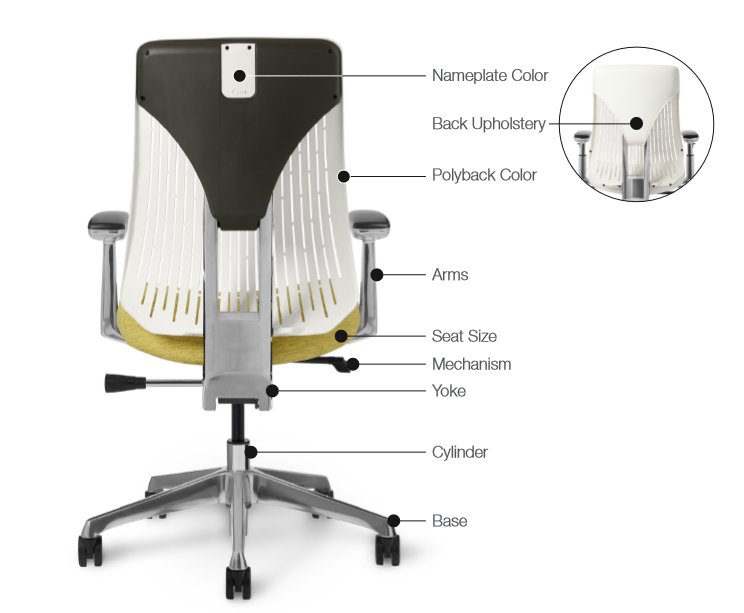

Features
Simple Synchro
A. Seat Height
B. Seat Slider
C. 1 Position Tilt Lock (push in to engage)
D. Tilt Tension
Product Options/Accessories
| Model | TY608 |
| Manufacturer | OM Seating Chairs |
| Part Number | TY608 |
| Overall Width | 27" |
| Overall Height | 38.25"-47.5" |
| Overall Depth | 27" |
| Back | 20" W x 24" H |
| Seat | 19" W x 17.5-20.6" D (standard), 18" W x 16.5-19.6" D (petite), 20.75" W x 18-21.1" D (full) |
| Seat Height | 15.5 - 19.5" (petite), 17 - 22" (standard), 19 - 24" (tall) |
| Travel Range (height) | 4.25" (back) / 5" (seat) |
| Weight Capacity | 300 lbs |
| COM | (seat only) 1 yard |
| Carton Weight | 70 lbs |
| FedEx Weight | 101 lbs |
| Arms | Groups AR, 1, and 4 |
| Warranty | Lifetime limited |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
- MMQB article on Office Master Truly
- Office Master Truly. TY608 Specification Sheet
- Cylinder Replacement Instruction
- Brochure Truly Series
- Certificate Truly Series
- Installation Manual for Group 1 and Group 4 OM Arms
- Back Hinge Angle Adjustment
- Assembly Instructions
- GreenGuard Certificate
- BIFMA LEVEL Certificate
- Disassembly and Recycling Instructions
- Truly Sales Tutorial
Limited Warranty
Office Master, Inc. (OM) warrants to the original purchaser that its products are free from defects in materials and workmanship for the applicable warranty period, as indicated below.
Should any item fail, OM will at its sole discretion repair or replace, with a comparable product or part, any item found to be defective as a result of normal commercial use (i.e., a single 8-hour shift, 5 days per week).
This warranty does not apply to items subjected to abuse, misuse, neglect, alteration, or damage caused by shipment, storage, accident, fire, flood, or act of God.
Lifetime Limited Warranty - The OM5 Series (including the OM5 Active sub-series), Truly. Series, and Ginny are covered by a lifetime limited warranty on all structural components as defined below.
12-Year Limited Warranty - Unless otherwise specified, all models not classified as budget or 24/7 or heavy-duty are covered under a 12-year limited warranty on all structural components as defined below.
7-Year Limited Warranty - Unless otherwise specified, all models classified as budget or 24/7 or heavy-duty are covered under a 7-year limited warranty on all structural components as defined below. Budget series include: BC, SG, ST, and WS.
Warranty Terms - Within a given model’s applicable warranty period, all
structural components, including gas cylinders, wood, metal and plastic parts
(i.e., chair frames, bases and control handles) are guaranteed against
structural failure when under normal commercial use. All OM seating comes with a
default 275 lbs. weight capacity limit unless otherwise specified by OM.
For all models, consumable items (i.e., casters, glides, etc.) are covered by a 5-year normal commercial use warranty.

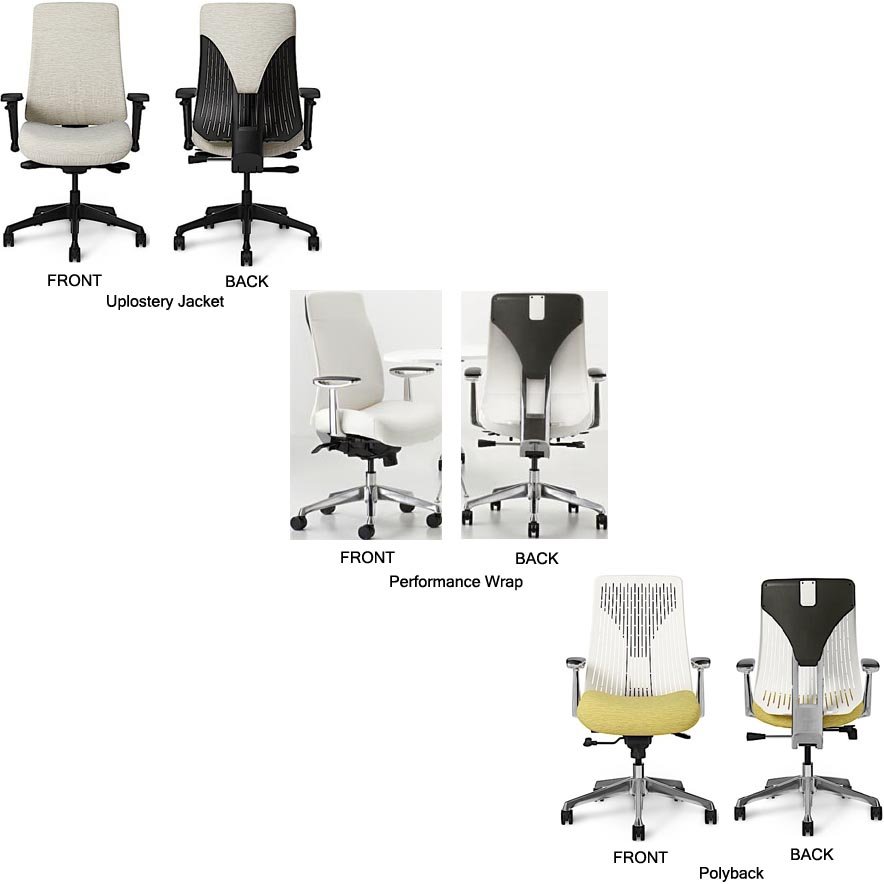

Fabrics and Foam - OM in-stock upholstery & foam cushions are covered by a 5-year normal commercial use warranty. Normal wear and tear on fabrics such as wrinkling, dirt accumulation or gathering is not covered. This includes Truly. Series “Jackets” and “Wraps”. Natural, minor variations may exist in color, surface, grain or texture of upholstery materials. As a result, any such variations are not warranted. COM/COL and graded-in fabrics are not covered.
Claims Procedure - Should any item fail, contact the Dealer from whom it was purchased. A photograph of the damage(s)/issue(s) and of the “born-on” label underneath the seat will be required to help OM determine the cause and extent of any issues. If it is determined that a return is necessary, return that item and its product proof of purchase to the Dealer, whereupon that Dealer will send both to OM, freight prepaid. OM will repair or replace the defective part at its sole discretion and return it to the Dealer, freight prepaid. Please email related photos and details for any warranty claims to [email protected].
Returns - Written authorization from OM is required prior to a Dealer returning any failed or defective parts to OM. Any returned defective part(s) will NOT be accepted without this prior written authorization, or a “Returned Materials Authorization” (RMA) # assigned to it.
Warranty Labor - This warranty exclusively covers the repair or replacement of OM parts as determined by OM and does NOT cover any portion of field labor or service and does NOT cover any portion of field labor or service. For information regarding OM’s non-warranty shop time and related charges, please reference a current copy of OM’s pricebook, in the Terms and Conditions section.
