Kinesis FPMJ2 Savant Elite2 Control Module

Product ID 18614
Kinesis FPMJ2 Savant Elite2 Control Module
Kinesis FPMJ2 Savant Elite2 Control Module


Savant Elite2 Control Module only - Available in a 2 or 4 mini-phono jack version. The Savant Elite2 (SE2). Control Modules are ideal for user’s who want to activate mouse clicks or offload two to four keying tasks. The new driverless programming makes it quick and easy to change the module to perform keyboard actions and productivity-enhancing macros.

SmartSet driverless programming technology - The SE2 features Kinesis’ SmartSet technology which provides driverless programming of the SE2 device. Programming the SE2 can be accomplished in one of two ways: 1) utilizing the SE2 SmartSet App; or 2) using any text editor to type a new pedal action and saving to the virtual disk drive. No drivers are required, whether you are using Windows, Mac OS X, Android, Linux, or Chrome.

Programming using the SE2 SmartSet for Windows & Mac - The simplest and easiest means of programming the Savant Elite2 is by using the SE2 SmartSet App. The SE2 SmartSet App is a graphical user interface that allows you to easily assign any key action, macro or special action such as a double left mouse click to a foot pedal or jack. Available in both Windows and Mac versions, the SE2 SmartSet App comes pre-loaded on all new SE2 devices or can be downloaded from the Savant Elite2 Resources Page section of our website.


Kinesis FPMJ2 Savant Elite2 Control Module


Programming with a Text Editor (Non Windows & Mac OS’s) - For all other operating systems the SE2 is programmed by editing the pedals.txt file located on the virtual removable disk drive named KINESIS FP. The SE2’s unique driverless all-platform programmability is based on a virtual removable disk. In the KINESIS FP drive resides a tiny simple-text file (pedals.txt) which defines the actions of up to 3 pedals and 4 input jacks covering all the various configurations of SE2 devices. Virtually any text editing program can be used to edit the pedal/jack assignments and then re-save the file as “plain text” or “simple text.” Backup files can be stored with different names and in different locations. Only the file named “pedals.txt” located in the “active” folder in the KINESIS FP drive is used to assign the actions.

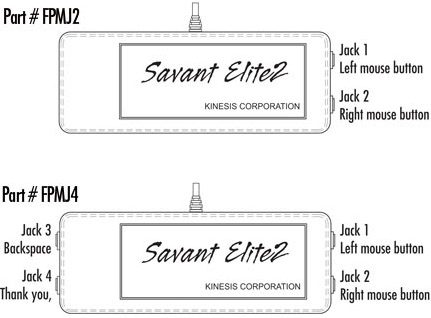

  • Control Module with 2 input jacks (FPMJ2): Two jacks factory configured to perform mouse button actions. (Jack 1 = left button, Jack 2 = right button).

  • Control Module with 4 input jacks (FPMJ4): Two jacks factory configured to perform mouse button actions and two jacks to perform single and multiple key actions. (Jack 1 = left button, Jack 2 = right button, Jack 3 = backspace, Jack 4 = Thank you,).

    Kinesis FPMJ2 Savant Elite2 Control Module

  • Program any key action, macro or special actions. Re-programmable on any computer or tablet with a USB port to perform keyboard actions, macros, or special actions such as mouse clicks.

  • Recessed programming switch accessible from underside of unit. Programming Mode also accessible by holding a pedal briefly while connecting USB cable to open virtual removable disk.

  • External green and red status LEDs.

  • Single pedal and hand trigger sold separately.



Compatible operating systems

Savant Elite2 uses generic HID (human interface device) drivers provided by the operating system. It can be operated and programmed without any special drivers in most environments supporting USB devices, including the following operating systems with an available USB port

  • Windows

  • Mac OS X 10.4 & newer

  • Linux

  • Android

  • Chrome

SE2 SmartSet App

  • Windows 7, 8 & 10

  • Mac OS X 10.4 & newer (not compatible with Sierra. See Note)

  • Either version can be downloaded from the Savant Elite2 Resources Page


  • The SE2 SmartSet App is not currently compatible with Mac’s running Sierra. We will have an update in the future. In the meantime, users who want to program have three options: 1) use a different OS to program; 2) direct edit the text file; and/or 3) email Kinesis Technical Support with actions that you would like programmed and they will send you a text file.

  • In Play Mode the Savant Elite2 emulates a generic keyboard and mouse. In Programming Mode it emulates a generic keyboard and removable disk. Programming Mode requires generic OS support for a removable disk, plus a text editing program or app that can edit and save a file as “plain text” or “simple text.” Most word processing and text editing programs have this capability.

Macintosh OS X notes

OS X doesn’t support middle mouse button without using a third party driver such as that found at Also, modifier actions from one USB device cannot modify the input of a second USB device due to limitations designed into the Apple operating system


Shift, Control, Command, or Option keystrokes programmed into the foot pedal cannot modify the input of a separate USB keyboard or mouse. However, a key sequence like ‘Cmd-W’ or ‘Cmd-Shift-left arrow’ will work on a Macintosh if the entire sequence of keystrokes has been programmed into the foot pedal


  • Width: 5.5 inches

  • Depth (front-to-back): 2 inches

  • Height: 0.875 inches

  • Weight: 0.70 lbs

  • Shipping weight: 1 lb

  • Cable length: 9 feet 1 inch






Standard actions

Mouse Buttons

Joy Stick Buttons 1,2,3

Other Capabilities

Key Actions/Macros

"Joy Stick Buttons Only"






Product Options/Accessories

Model FPMJ2
Manufacturer Kinesis
Part Number FPMJ2
Operating System Windows, Mac OS X 10.4 & newer, Linux, Android and Chrome
Width 5.5
Depth (front-to-back): 2
Height 0.875
Weight 0.70 lbs
Shipping Weight 1 lb
Cable Length 9 feet 1 inch
