$5,027.00

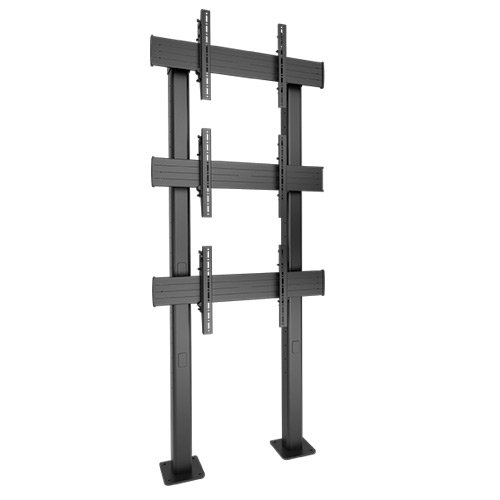

Chief LBM1X3U FUSION 1X3 Large Bolt-Down Freestanding Video Wall

Product ID 18647
Chief LBM1X3U FUSION 1X3 Large Bolt-Down Freestanding Video Wall
Chief LBM1X3U FUSION 1X3 Large Bolt-Down Freestanding Video Wall

Description

Chief's LBM1X3U FUSION Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.

  • Screen array configuration: 1 screen wide x 3 screens high in landscape.

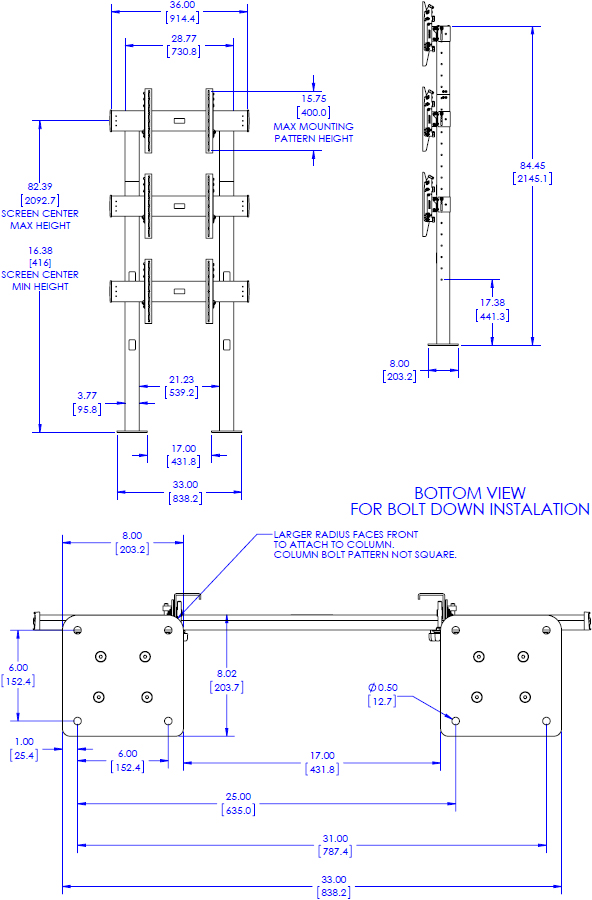

Technical Drawing

Technical Drawing for Chief LBM1X3U FUSION 1X3 Large Bolt-Down Freestanding Video Wall

Specifications

Center of Display to Floor Table Range 82.39" (2093 mm) (maximum top) - 16.38" (416 mm) (minimum bottom)
Certifications TAA Compliant
Color Black
Lateral Shift Yes
Manual Height Adjustment Micro-adjustment up to 0.75" (19 mm) per screen
Mounting Pattern Compatibility (Universal Versions) 100 mm x 100 mm - 900 mm x 400 mm
Notes TAA Compliant
Number of Monitors 3
Overall Dimensions (H x W x D) 84.45 X 36 X 7.5" (2145 x 914 x 191 mm)
Plumb Adjustment Micro-adjustment up to 0.75" (19 mm)
Screen Array Configuration 1 x 3
Shipping Weight 200 lbs (90.72 kg)
Solution Type Universal
Typical Screen Sizes 42 - 65"
Weight Capacity 125 lbs (56.7 kg)
Orientation Landscape

Features

  • 1 x 3 landscape screen arrangement for 42 - 65" screens

  • Easily align displays with independent height, plumb and lateral shift adjustment

  • Bolt-down solution allows for a permanent solution

  • Integrated cable management for a clean installation

  • TAA Compliant

Model LBM1X3U
Manufacturer Chief Mounts
Part Number LBM1X3U
UPC 841872164519
Color Black
Center of Display to Floor/Table Range 82.39" (2093 mm) (maximum top) - 16.38" (416 mm) (minimum bottom)
Manual Height Adjustment Micro-adjustment up to 0.75" (19 mm) per screen
Mounting Pattern 100 mm x 100 mm - 900 mm x 400 mm
Overall Dimensions 84.45 X 36 X 7.5" (2145 x 914 x 191 mm)
Plumb Adjustment Micro-adjustment up to 0.75" (19 mm)
Shipping Weight 200 lbs (90.72 kg)
Monitor Size 42 - 65"
Weight Capacity 125 lbs (56.7 kg)
Number of Monitors 3 Monitors
Mounting Options Wall
Orientation Landscape
Lateral Shift Yes

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
