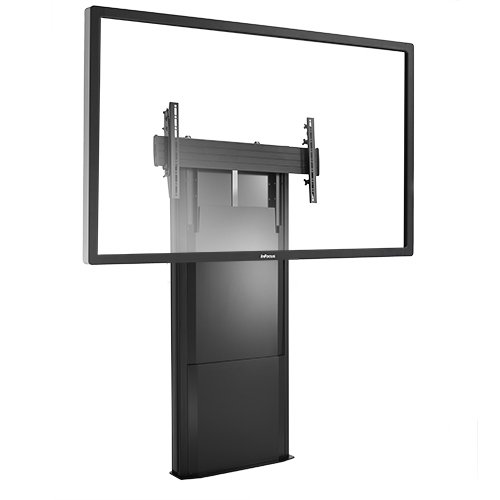

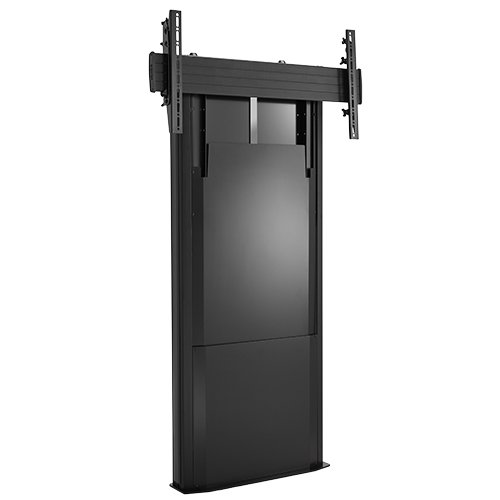

Chief MFD1U Medium Fusion Dynamic Height Adjustable Floor Support

Product ID 18653


Chief MFD1U is ideal for interactive applications, Fusion mounts with dynamic height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable box provides ultra-smooth and fast vertical travel with almost no effort.

  • Easy to install. Easy to adjust.

  • This solution is especially helpful for applications where the wall structure can't carry the weight.

Technical Drawing

Technical Drawing for Chief MFD1U Medium Fusion Dynamic Height Adjustable Floor Support


Certifications UL Listed
Color Black
Dynamic Height Adjustment 15.75" (400 mm)
Mounting Pattern Compatibility (Universal Versions) 200 x 200 - 800 x 400 mm
Number of Monitors 1
Overall Dimensions (H x W x D) 64.4 x 36.8 x 6.3" (1636 x 935 x 160 mm)
Solution Type Universal
Wall Stud Compatibility In 16" (406 mm)
Weight Capacity 67 - 130 lbs (30.4 - 59 kg)
Orientation Landscape, Portrait


  • Height adjustable box allows up to 15.75" (400 mm) of vertical adjustment instantly

  • Starting height can be set at 3" (76 mm) intervals over a span of 12" (305 mm)

  • ControlZone for post-installation fine-tuning of height and leveling

  • ClickConnect offers an audible click when the screen safely engages with the mount

  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together

  • Integrated security flag

Model MFD1U
Manufacturer Chief Mounts
Part Number MFD1U
UPC 841872168142
Color Black
Dynamic Height Adjustment 15.75" (400 mm)
Mounting Pattern 200 x 200 - 800 x 400 mm
Overall Dimensions 64.4 x 36.8 x 6.3" (1636 x 935 x 160 mm)
Wall Stud 16" (406 mm)
Weight Capacity 67 - 130 lbs (30.4 - 59 kg)
Mounting Options Floor Stand
Orientation Landscape, Portrait
Number of Monitors 1 Monitor

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
