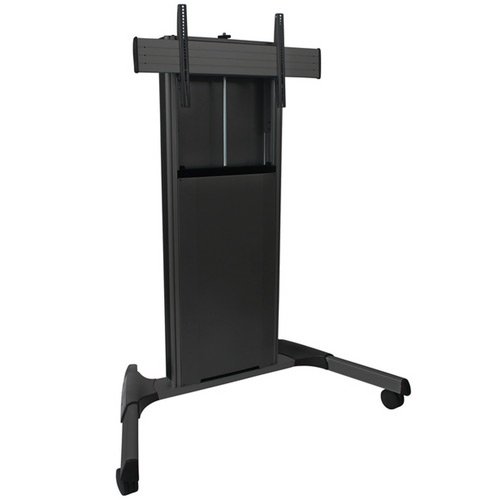

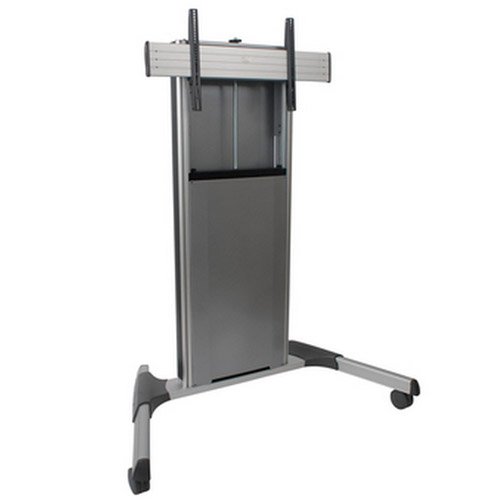

Chief XPA1U Series X-Large Fusion Manual Height Adjustable Cart

Available December 2016

Product ID 18657
Chief XPA1U Series X-Large Fusion Manual Height Adjustable Cart
Chief XPA1U Series X-Large Fusion Manual Height Adjustable Cart
Chief XPA1U Series X-Large Fusion Manual Height Adjustable Cart
Chief XPA1U Series X-Large Fusion Manual Height Adjustable Cart


Chief XPA1U mobile Fusion AV cart incorporates rounded edges and sleek features to give the cart a softer professional feel that fits well in corporate and classroom environments. The height can be adjusted by one person via a 1/2" hex bit on a power drill without removing the screen.

  • With the same footprint as the XPAUB, but with the addition of magnetic covers and handles for ease of use.

  • Perfect for XL and touch panel displays as well as dual monitor video conferencing using an accessory.

  • Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

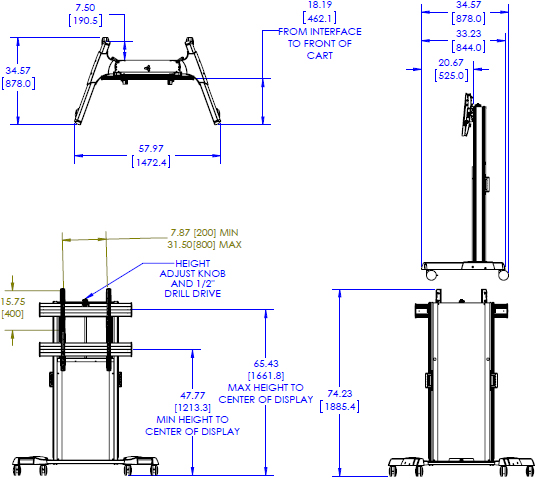

Technical Drawing

Technical Drawing for Chief XPA1U Series X-Large Fusion Manual Height Adjustable Cart


Center of Display to Floor Table Range 48 - 65" (1220 - 1650 mm)
Certifications UL Listed
Color Black, Silver
Mounting Pattern Compatibility (Universal Versions) 200 x 200mm - 800 x 400mm
Notes (Portrait screen orientation if screen is at least 34" tall and has a 400 x 400mm mounting pattern or smaller)
Number of Monitors 1
Solution Type Universal
Typical Screen Sizes 55 - 100"
Weight Capacity 300 lbs (136.1 kg)
Orientation Landscape


  • Sleek look suitable for multiple environments including education, corporate and digital signage

  • Turn knob allows single user to easily adjust the screen height using a 1/2" hex drill bit to any height between 48 and 65 inches (122 - 165 cm)

  • Flexible cable covers for lay in access down either side of the column to connect to external AV equipment

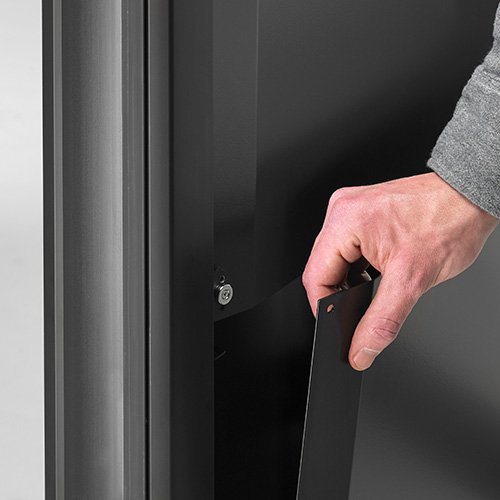

  • Magnetic, removable front cover allows for easy cable routing to AV components stored inside the cart

  • Includes cable wrap hardware for cable management inside and outside of cart

  • Landscape screen orientation (portrait only if screen is at least 34" tall and has a mounting pattern 400 x 400mm or smaller)

  • Ships with pre-assembled heavy-duty casters (front two casters are lockable)

Manufacturer Chief Mounts
Part Number XPA1UB, XPA1US
Color Black and Silver
Center of Display to Floor/Table Range 48 - 65" (1220 - 1650 mm)
Mounting Pattern 200 x 200mm - 800 x 400mm
Monitor Size 55 - 100"
Weight Capacity 300 lbs (136.1 kg)
Mounting Options Cart
Orientation Landscape
Number of Monitors 1 Monitor
