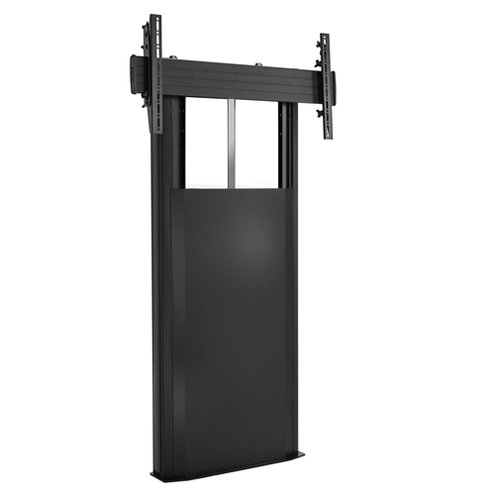

Chief XFA1UB X-Large Fusion Manual Height Adjustable Floor Mount

Product ID 18658
Chief XFA1UB X-Large Fusion Manual Height Adjustable Floor Mount
Chief XFA1UB X-Large Fusion Manual Height Adjustable Floor Mount


Chief XFA1UB solution is especially helpful for applications where the wall structure can't carry the weight. This floor support solution incorporates rounded edges and sleek features to give the aesthetics a softer, professional feel that fits well in corporate and classroom environments. The height can be adjusted by one person via a 1/2" hex bit on a power drill without removing the screen.

Technical Drawing

Technical Drawing for Chief XFA1UB X-Large Fusion Manual Height Adjustable Floor Mount


Center of Display to Floor Table Range 42 - 59.6" (1066 - 1515 mm)
Color Black
Mounting Pattern Compatibility (Universal Versions) 200 x 200 - 800 x 400 mm
Number of Monitors 1
Overall Dimensions (H x W x D) 64.4 x 36.8 x 6.3" (1636 x 935 x 160 mm)
Solution Type Universal
Typical Screen Sizes 55 - 100"
Wall Stud Compatibility In 16" (406 mm)
Weight Capacity 300 lbs (136.1 kg)
Orientation Landscape


  • Sleek look suitable for multiple environments including education, corporate and digital signage

  • Turn knob allows single user to easily adjust the screen height using a 1/2" hex drill bit to any height between 48 and 65 inches (122 - 165 cm)

  • Flexible cable covers for lay in access down either side of the column to connect to external AV equipment

  • Magnetic, removable front cover allows for easy cable routing to AV components stored inside the column

  • Includes cable wrap hardware for cable management inside and outside

  • Landscape screen orientation (portrait only if screen is at least 34" tall and has a mounting pattern 400 x 400mm or smaller)

  • Ships pre-assembled

Model XFA1UB
Manufacturer Chief Mounts
Part Number XFA1UB
UPC 841872168982
Color Black
Center of Display to Floor/Table Range 42 - 59.6" (1066 - 1515 mm)
Mounting Pattern 200 x 200 - 800 x 400 mm
Overall Dimensions 64.4 x 36.8 x 6.3" (1636 x 935 x 160 mm)
Monitor Size 55 - 100"
Wall Stud 16" (406 mm)
Weight Capacity 300 lbs (136.1 kg)
Orientation Landscape
Mounting Options Floor Stand
Number of Monitors 1 Monitor

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
