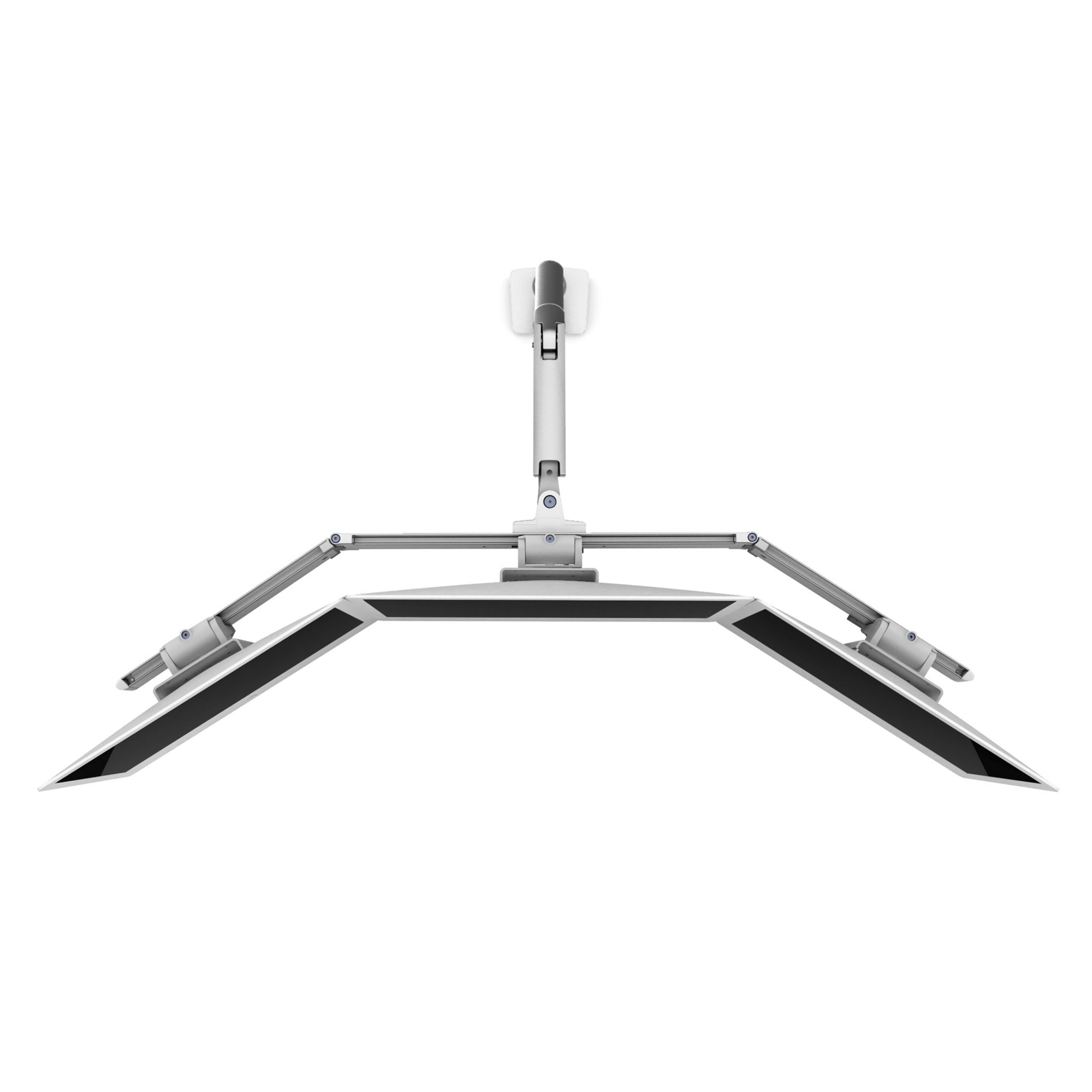

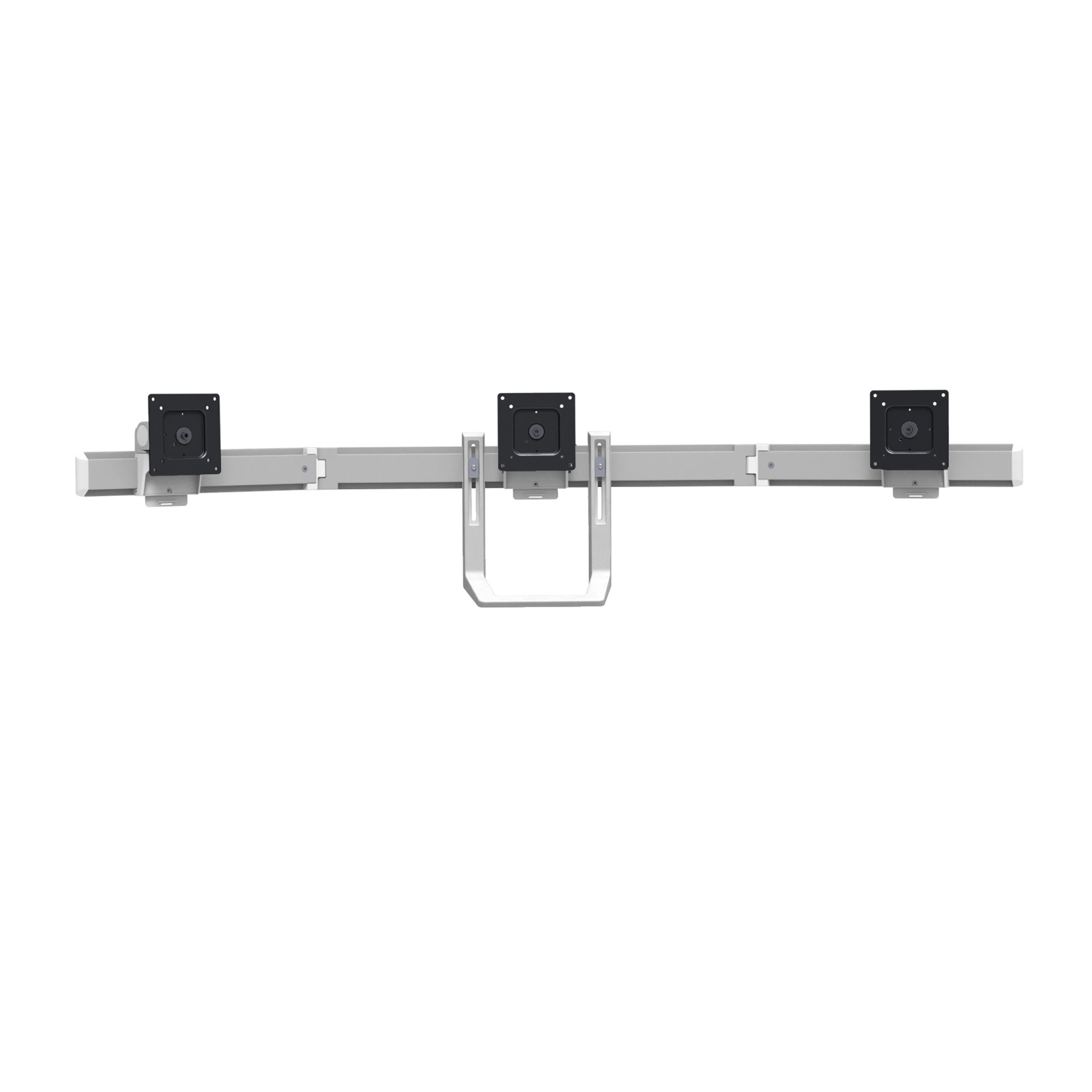

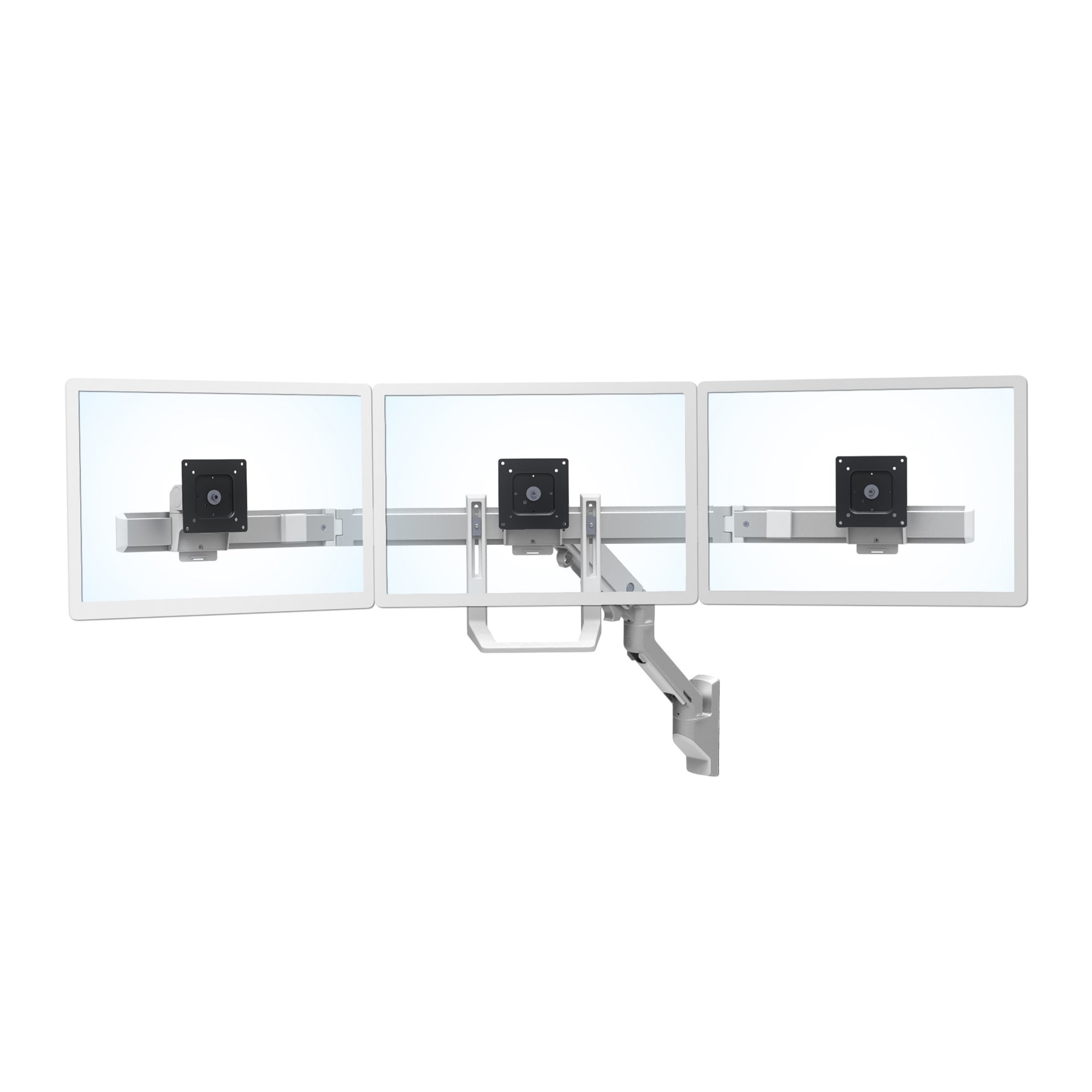

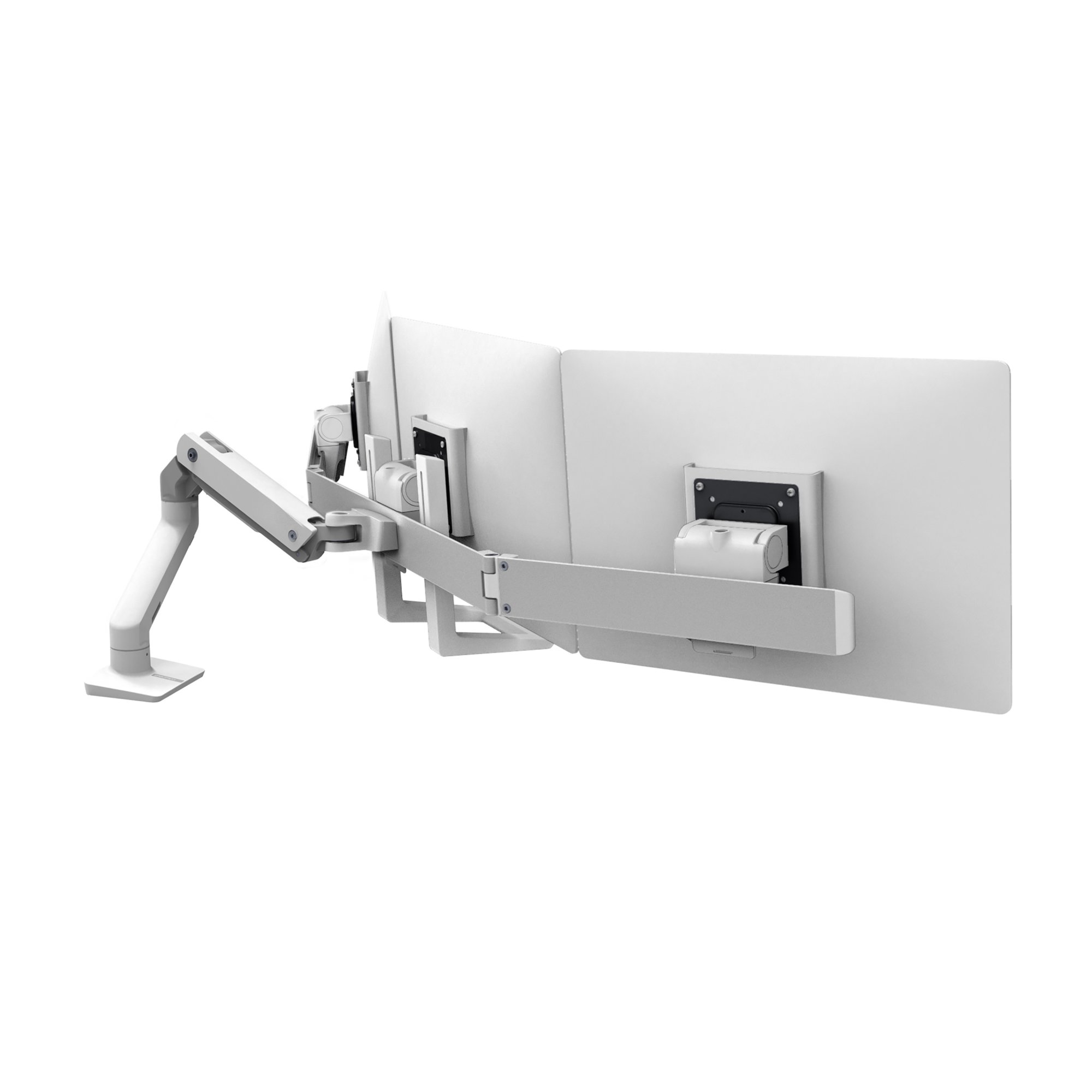

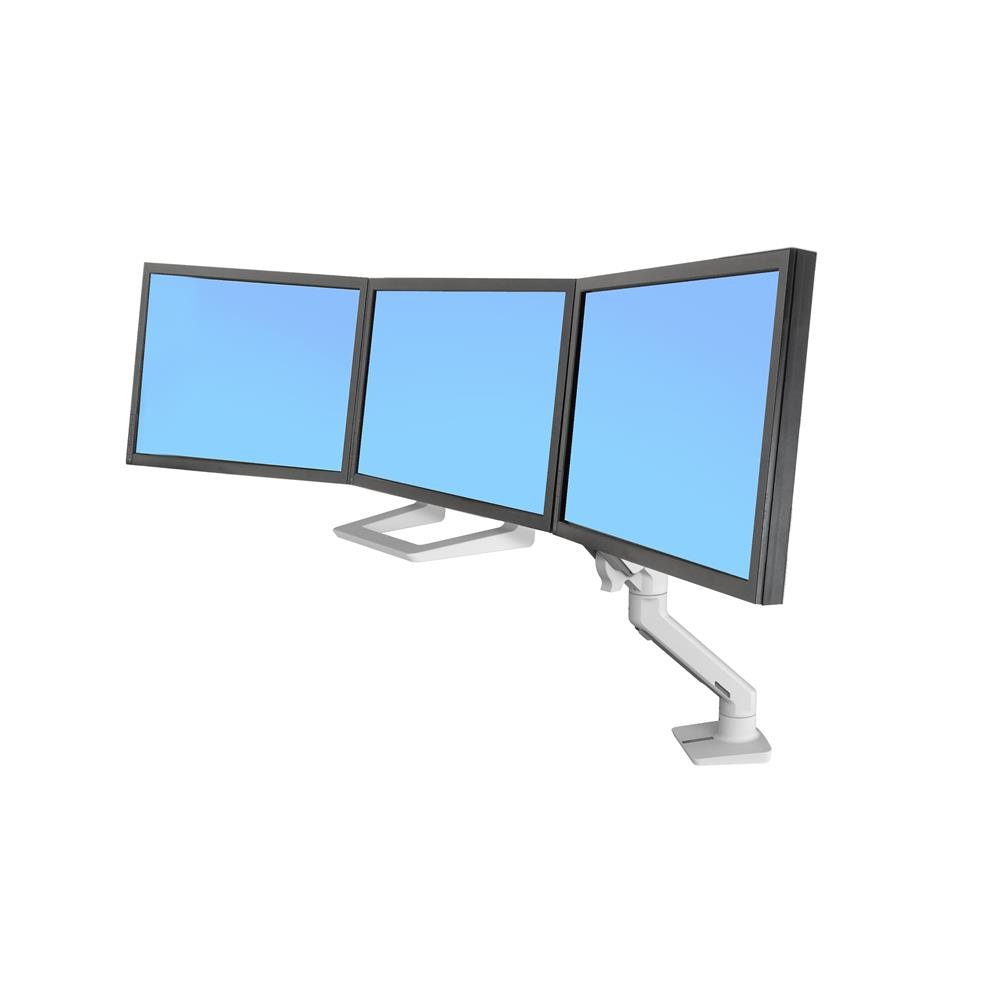

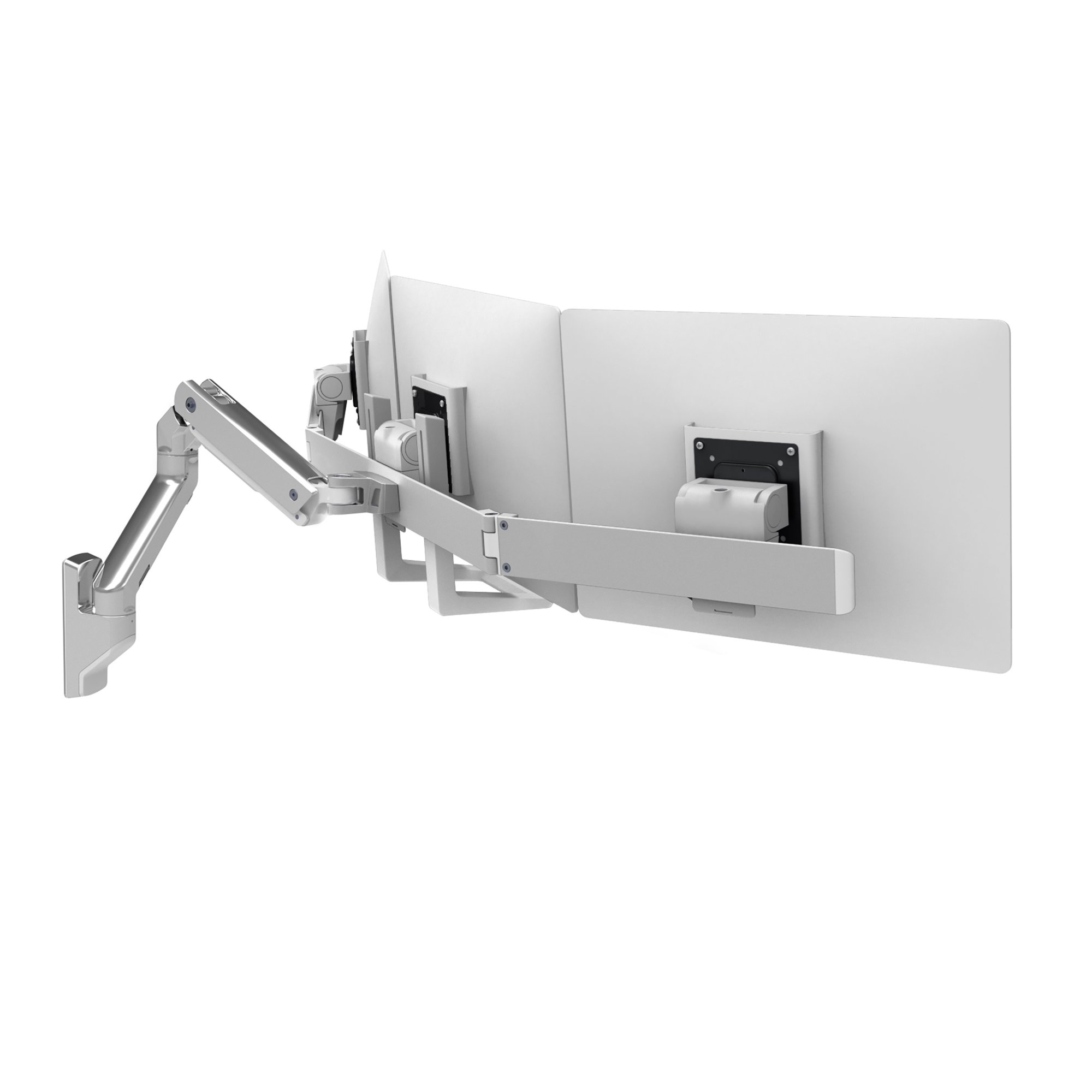

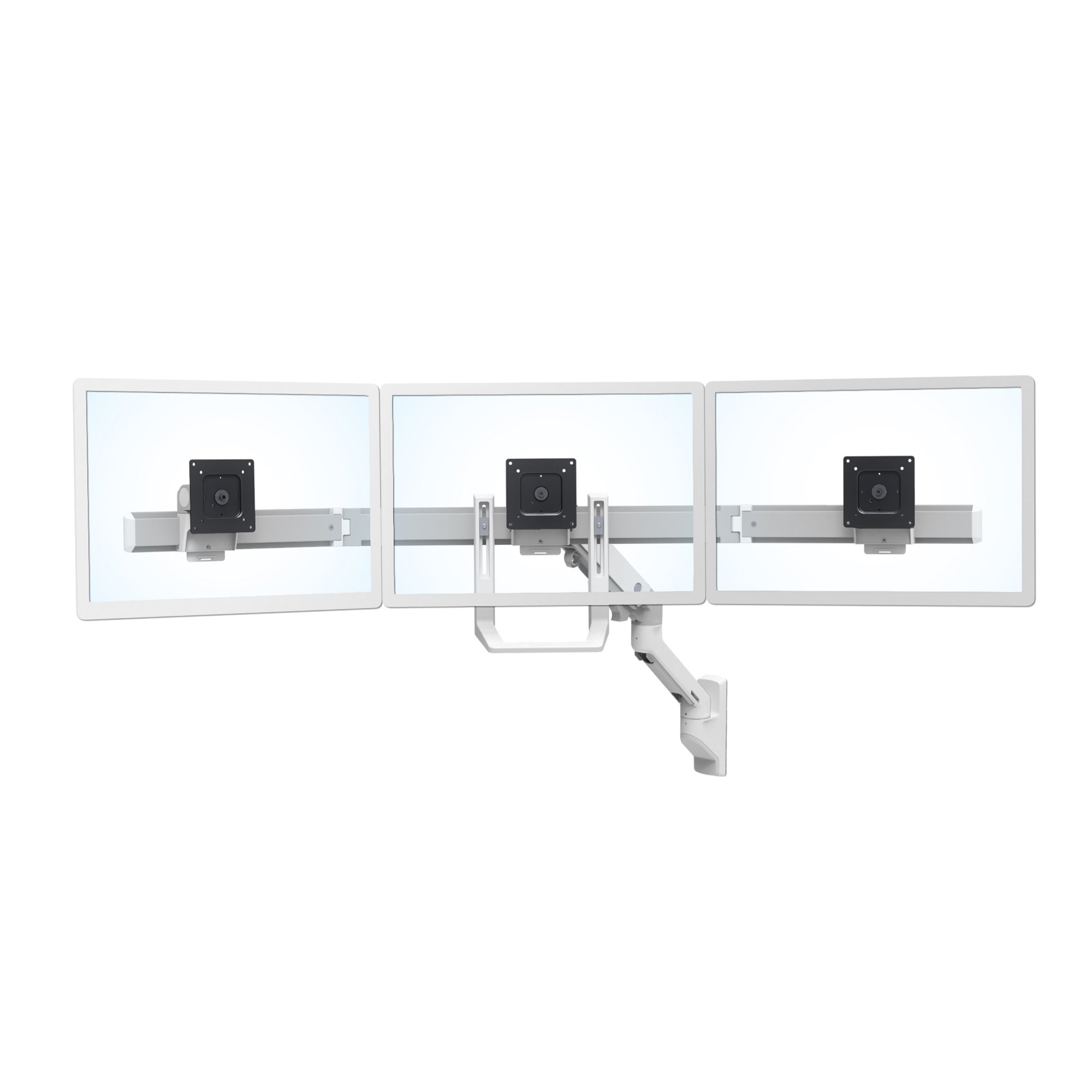

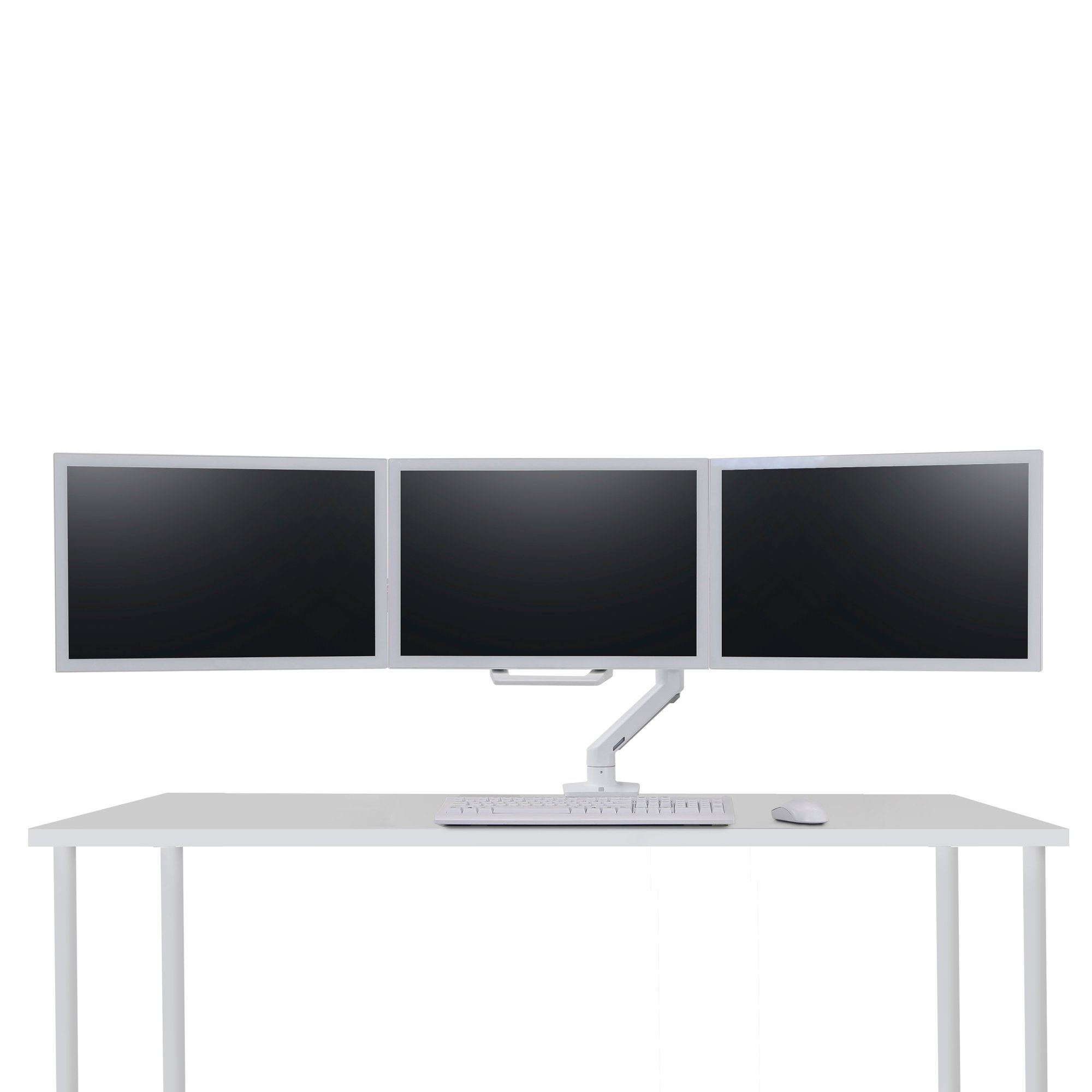

Ergotron 98-009-026 HX Triple Monitor Bow Kit upgrades an HX arm to hold three monitors and includes a handle for easy positioning. It’s the perfect accessory to expand your view across multiple screens while taking advantage of the HX arm’s adjustment capabilities.

Select part number 98-009-026 for use with HX arms having a polished aluminum finish; select part number 98-009-216 for use with HX arms having a white or silver finish.

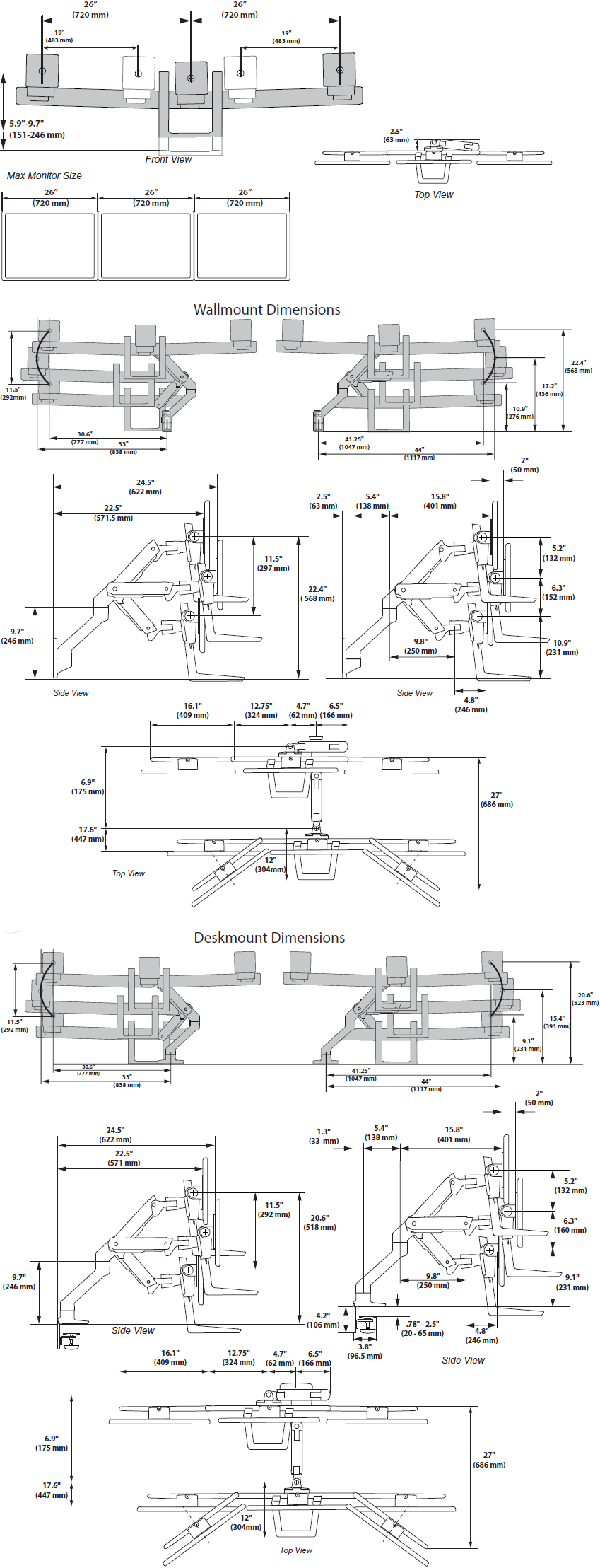

Technical Drawing

Technical Drawing for Ergotron 98-009-026 HX Triple Monitor Bow Kit

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 26"

6-30.6 lbs

2.7-13.9 kg

- 75° 180° 360° MIS-D

Product Information

Part Number 98-009-216 (white), 98-009-026 (polished aluminum)
Description HX Triple Monitor Bow Kit
  • Three (3) monitor pivots

  • Triple hinged bow and handle

  • Requires HX Single or Dual Monitor Arm (order separately)


Select 98–009–026 for HX arms with polished aluminum finish:

  • Single arms: 45–475–026, 45–478–026

  • Dual arms: 45–476–026, 45–479–026


Select 98–009–216 for HX arms with a white or silver finish:

  • Single arms: 45–475–216, 45–475–231, 45–478–216, 45–478–231

  • Dual arms: 45–476–216, 45–476–231, 45–479–026, 45–479–231

Cable Management Streamline cable management that routes cables under arm, within extension, and neatly across bow.
Mounting Standards VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Weight Capacity Individual LCD weight = 2.0–10.2 lbs (0.9–4.6 kg) per monitor. Total LCD weight = 6.0–30.6 lbs (2.7–13.9 kg)

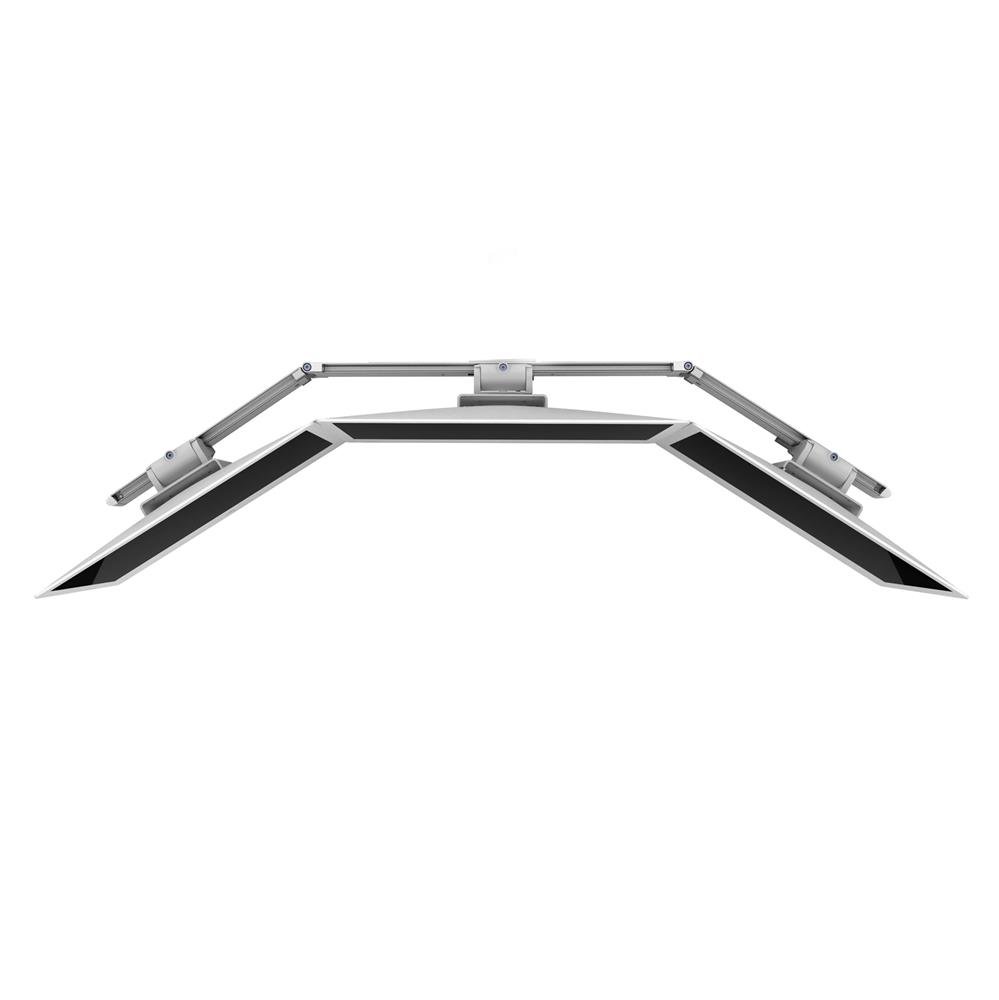

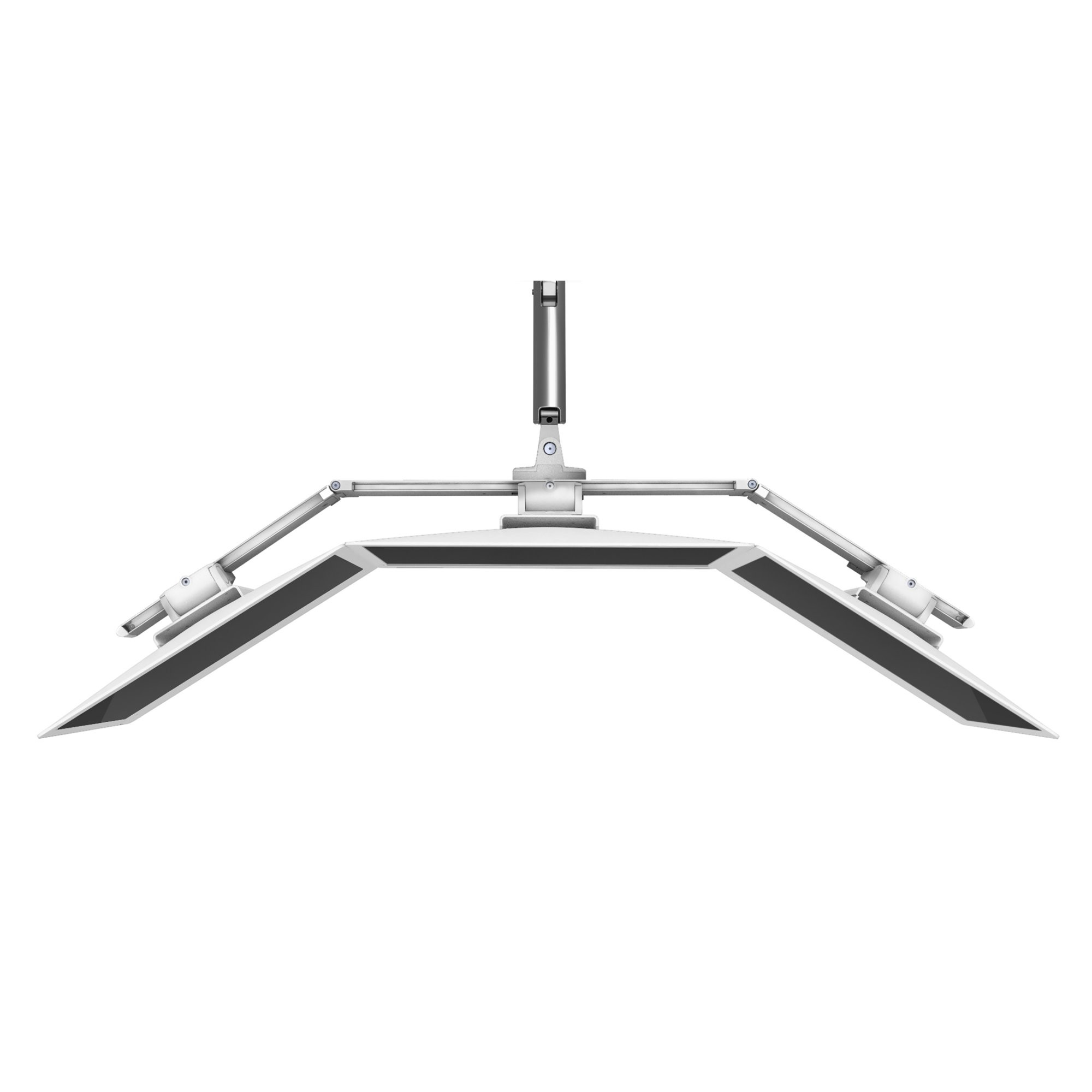

Hinge Bow Pivots 40° inward and 90° outward
Extended Range Up to 24.5" (60 cm)
Vertical Height Adjustment 11.5" (29.2 cm)
Tilt Range 70° backward, –5° forward
Pivots Feature quick install and release and feature effortless portrait to landscape 6° pan and tilt
Works With three displays with diagonal screen–size up to 24"
Rotation Portrait/landscape rotation with lockout
Shipping Dimensions 28.3" x 18.5" x 7.5" (72 x 47 x 19 cm)
Shipping Weight 19.1 lbs (8.7 kg)
Warranty Ten (10) years


  • Increases viewing comfort: Helps reduce eye, back and neck strain

  • The hinged bow allows monitors to pan outward independently, ideal for sharing screens

  • Optimize the viewing parabola for enhanced ergonomic comfort by rotating monitors inward using the hinged bow

  • Independent, quick release monitor pivots with effortless P/L, pan, and tilt for custom positioning of each monitor

  • Includes integrated cable management guides for hassle-free routing of cables

Product Options/Accessories

Model 98-009-026
Manufacturer Ergotron
Part Number 98-009-026
UPC 698833061024
Color Polished aluminum and White
Monitor Size Up to 26"
Weight Capacity Maximum individual LCD weight = 2.0–10.2 lbs (0.9–4.6 kg) per monitor. Total LCD capacity = 6.0–30.6 lbs (2.7–13.9 kg)
Tilt Backward 70 degree, forward –5 degree
Pan 180 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Maximum Extension Up to 24.5" (60 cm)
Vertical Adjustment (29.2 cm) 11.5 in
Shipping Dimensions 28.3" x 18.5" x 7.5" (72 x 47 x 19 cm)
Shipping Weight 19.1 lbs (8.7 kg)
Warranty Ten (10) years
