Chief FCA831 Fusion Side Channel Speaker Adaptor

Product ID 18710

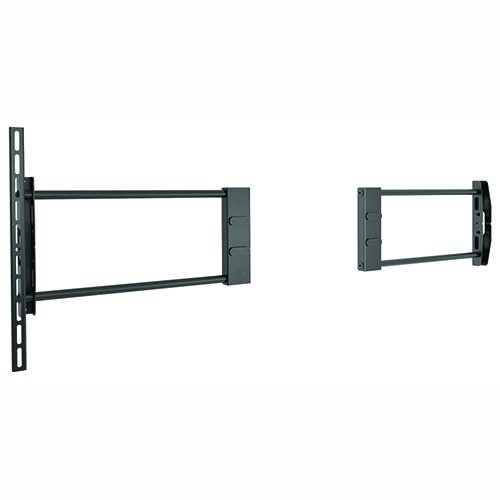

Chief FCA831 Fusion Side Channel Speaker Adaptor
Chief FCA831 Fusion Side Channel Speaker Adaptor


Chief FCA831 left/right side speaker adapters are compatible with all Fusion Series mounts: Carts, Stands, Ceiling and Wall. Install this accessory to apply AV speaker equipment with your Fusion mounted display.

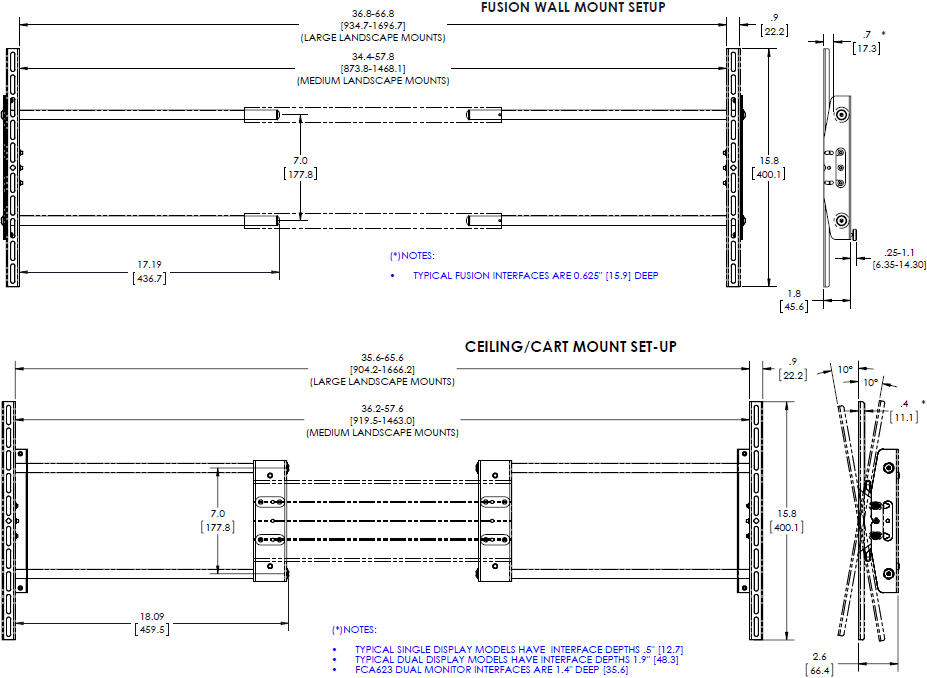

Technical Drawing

Technical drawing for Chief FCA831 Fusion Side Channel Speaker Adaptor






UL Listed


36.2" - 57.6" for medium Fusion mounts. 35.6" - 65.6" for large fusion mounts

Exterior Height In

15.8" (401 mm)


TAA Compliant

Shipping Weight

13.00 lbs (5.9 kg)

Solution Type


Typical Screen Sizes

42 - 70"

Weight Capacity

20 lbs (9.1kg)

UPC Code




  • Infinitely adjustable to fit speakers flush with side of TV

  • Expandable for TV's up to 70" diagonal



Product Options/Accessories

Model FCA831
Manufacturer Chief Mounts
Part Number FCA831
UPC 841872163840
Color Black
Extension 36.2" - 57.6" for medium Fusion mounts. 35.6" - 65.6" for large fusion mounts.
Monitor Size 42" - 70"
Exterior Height 15.8" (401 mm)
Weight Capacity 20 lbs (9.1 kg)
Shipping Weight 13.00 lbs (5.9 kg)

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
