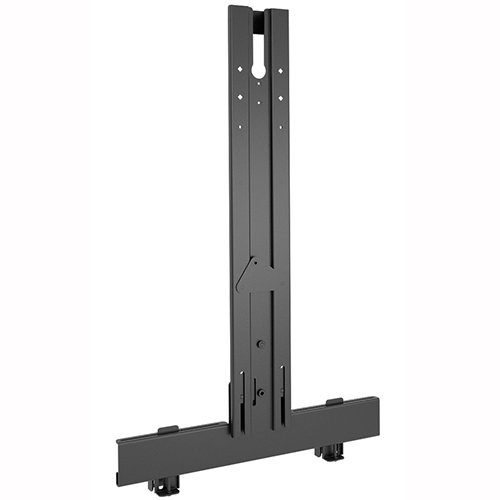

Chief FCA840 Fusion Center Channel Speaker for XL Displays

Product ID 18769
Chief FCA840 Fusion Center Channel Speaker for XL Displays
Chief FCA840 Fusion Center Channel Speaker for XL Displays


Chief FCA840 is compatible with all Fusion Series mounts: Carts, Stands, Ceiling and Wall. Install this accessory to apply speakers to your Fusion mounted display.

Dimensions and specifications dependent on application type: wall, ceiling, freestanding.

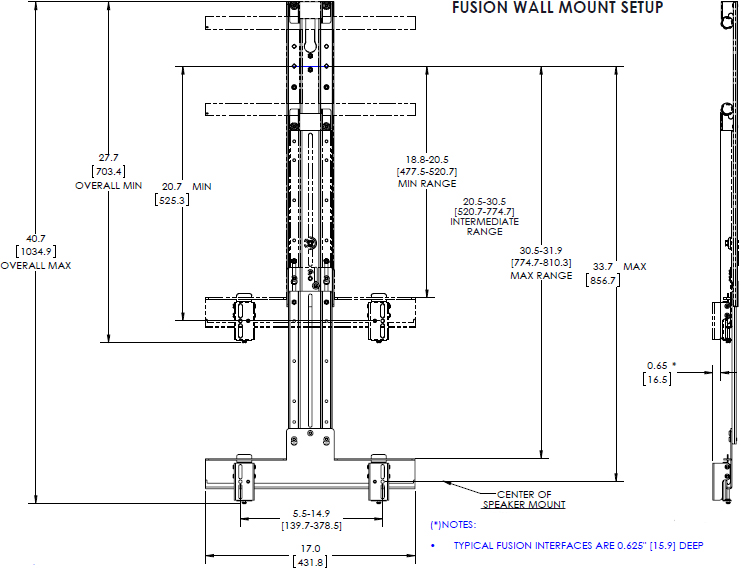

Technical Drawing

Technical Drawing for Chief FCA840 Fusion Center Channel Speaker for XL Displays


Color Black
Certifications TAA Compliant
Solution Type Universal
Extension 18 - 31"
Overall Dimensions (H x W x D) 40.7 x 17 x 0.65" (1035 x 432 x 17 mm)
Shipping Weight 9.00 lbs (4.08 kg)
Typical Screen Sizes 70 - 100+ inches
Weight Capacity 20 lbs (9.1kg)


  • Expandable to fit 70" to 100+" flat panels

  • Universal design accommodates most speaker brands

  • Low-profile design does not add depth to installation

  • Compatible with FUSION fixed and tilt wall mounts

  • TAA Compliant

Product Options/Accessories

Model FCA840
Manufacturer Chief Mounts
Part Number FCA840
UPC 841872163857
Color Black
Extension 18 - 31"
Overall Dimensions 40.7 x 17 x 0.65" (1035 x 432 x 17 mm)
Shipping Weight 9.00 lbs (4.08 kg)
Screen Size 70 - 100+ in
Weight Capacity 20 lbs (9.1kg)
